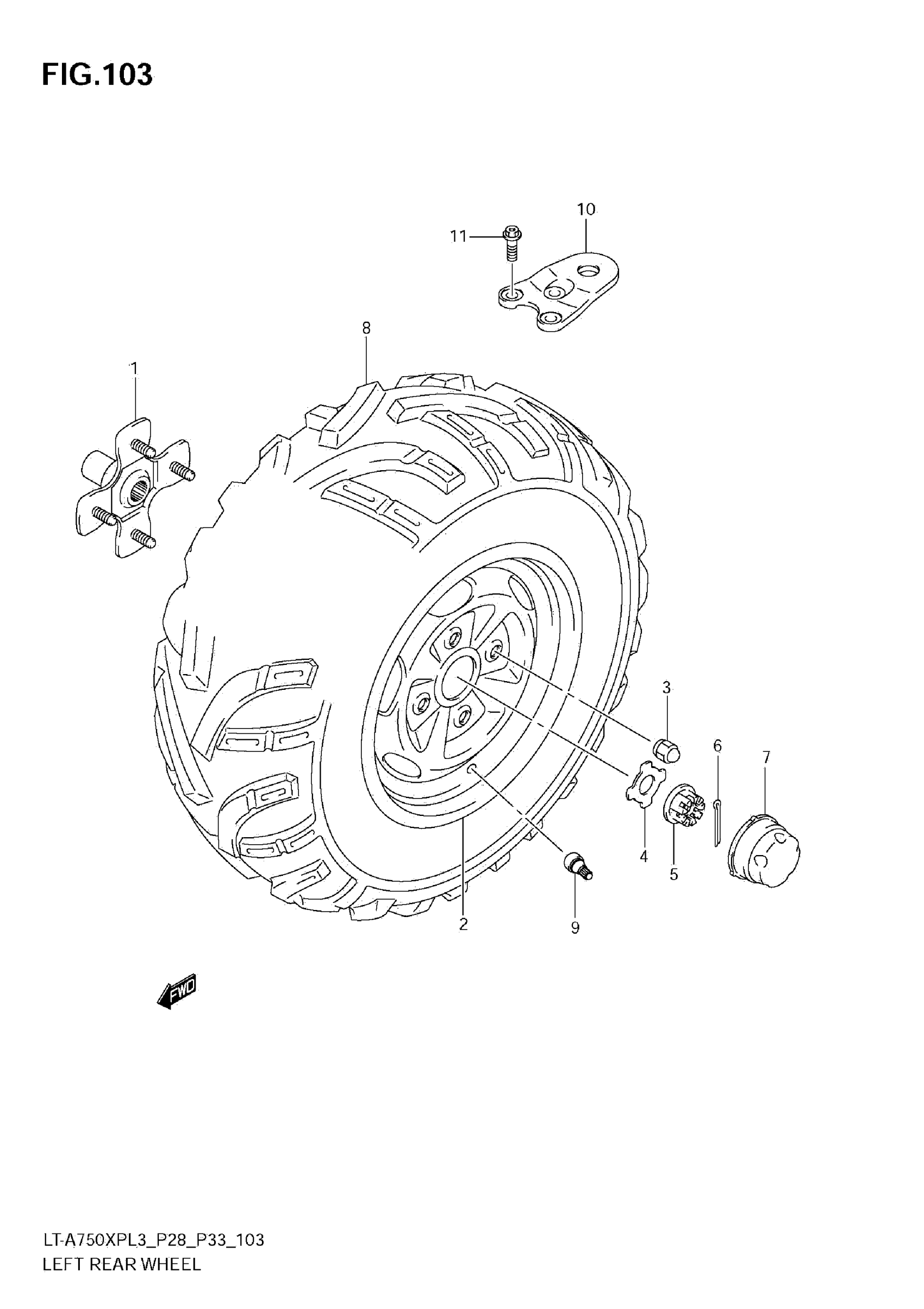

Suzuki LT-A750XPL3 (2013) LEFT REAR WHEEL (LT-A750XPL3 P28) Diagram

HUB, REAR WHEEL LH This part replaces 64110-31G01.

64110-31G10

$222.42

RIM, REAR WHEEL (12X7.5AT) (BLACK) | FOR YT9,YLG

65310-31G60-291

$289.65

RIM, REAR WHEEL (12X7.5AT) (RED) | FOR YU1,YPW,YLZ

65310-31G60-YUM

Unavailable

NUT

09159-10114

$5.11

WASHER, HUB

64723-03G00

$20.80

NUT

09141-20008

$18.05

COTTER PIN

04111-4035A

$1.49

CAP,WHEEL CENTER

54725-09F01

$9.95

TIRE, REAR (AT25X10-12)

65110-31G20

Unavailable

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

PLATE, TRAILER TOW

95211-31G00

$38.37

BOLT (10X30)

09103-10366

$3.85
