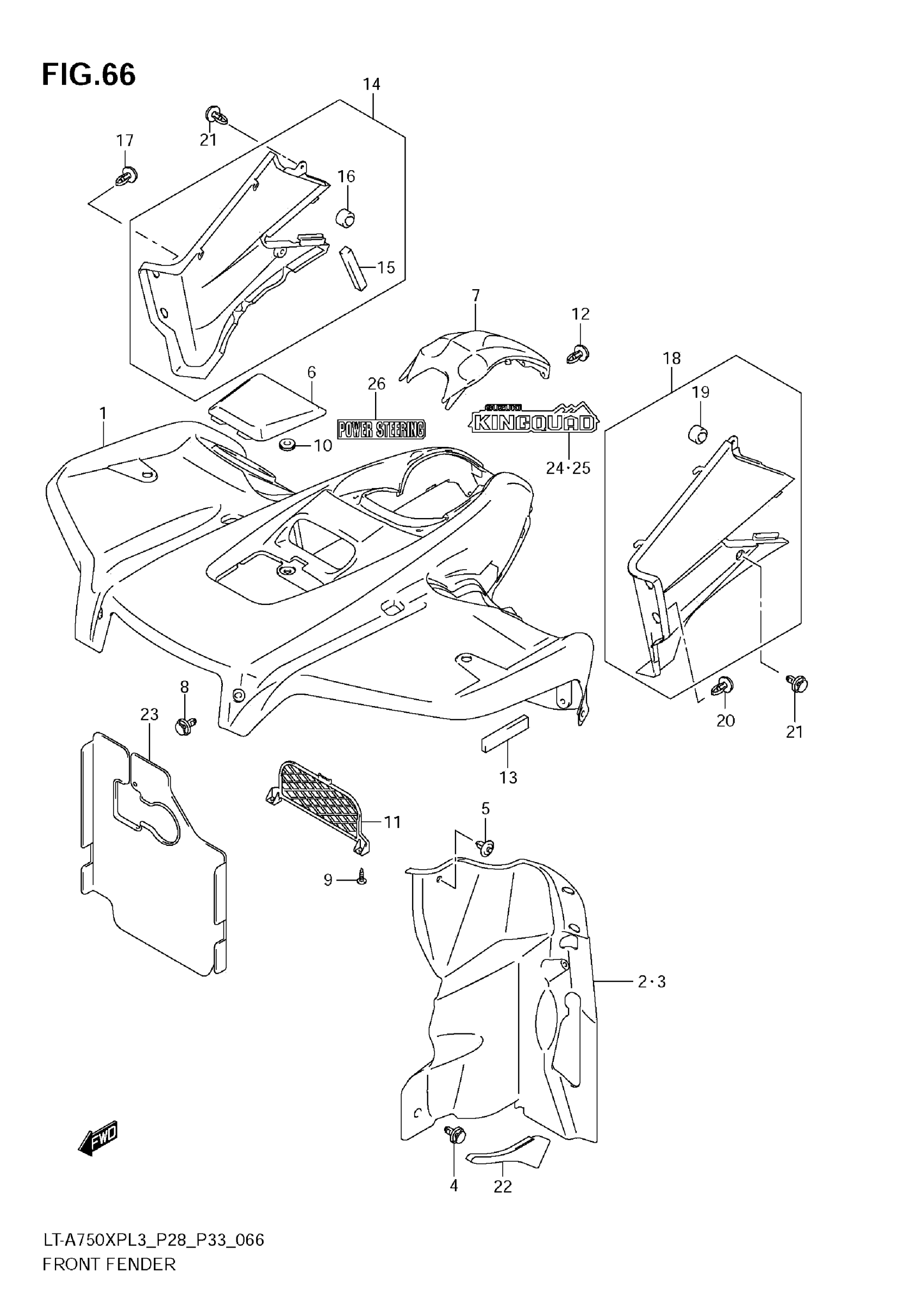

Suzuki LT-A750XPL3 (2013) FRONT FENDER (LT-A750XPZL3 P33) Diagram

#

Description
Price

1

FENDER, FRONT (CAMOUFLAGE) This part replaces 53111-31GC3-PHW.

53111-31G41-PHW

$755.06

1

FENDER,FRONT This part replaces 53111-31G50-PGR.

53111-31G60-PGR

$495.28

2

MUDFLAP, FENDER INNER RH

53411-31G02

$31.08

3

MUD FLAP,FENDER This part replaces 53421-31G01.

53421-31G03

$23.35

4

CLIP

09409-08335

$2.47

5

CLIP

09409-07333

$2.31

6

LID (CAMOUFLAGE) This part replaces 53341-31GC1-PHW.

53341-31GC4-PHW

$55.30

6

LID (RED)

53341-31G50-PGR

Unavailable

7

FENDER, CENTER (CAMOUFLAGE)

53119-31GC2-PHW

$111.40

7

FENDER, CENTER (RED)

53119-31G50-PGR

$147.45

8

CLIP

09409-08335

$2.47

9

SCREW

03241-0516A

$1.49

10

CUSHION

09320-08018

$3.04

11

COVER,INNER This part replaces 53212-31G01.

53212-31G03

$15.23

12

CLIP

09409-08335

$2.47

13

CUSHION, FENDER SIDE

53145-07G01

$8.13

14

COVER,SIDE,R This part replaces 53110-31G10-291.

53112-31G04

$42.81

15

CUSHION, COVER SIDE

53146-05G00

$7.27

16

CUSHION

09321-10019

$4.90

17

CLIP

09409-08335

$2.47

18

COVER,SIDE,L This part replaces 53110-31G20-291.

53122-31G04

$95.93

19

CUSHION, COVER SIDE

53146-05G00

$7.27

20

CLIP

09409-08335

$2.47

21

CLIP

09409-08335

$2.47

22

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$15.47

23

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$30.10

24

EMBLEM,FR FENDE This part replaces 68151-31GC0-EFG.

68151-31GC1-EFG

$47.82

25

EMBLEM,LH This part replaces 68152-31GC0-EFG.

68152-31GC1-EFG

$47.82

26

EMBLEM,"POWER-S This part replaces 68151-31GD0-CT5.

68151-31GD1-CT5

$20.80
