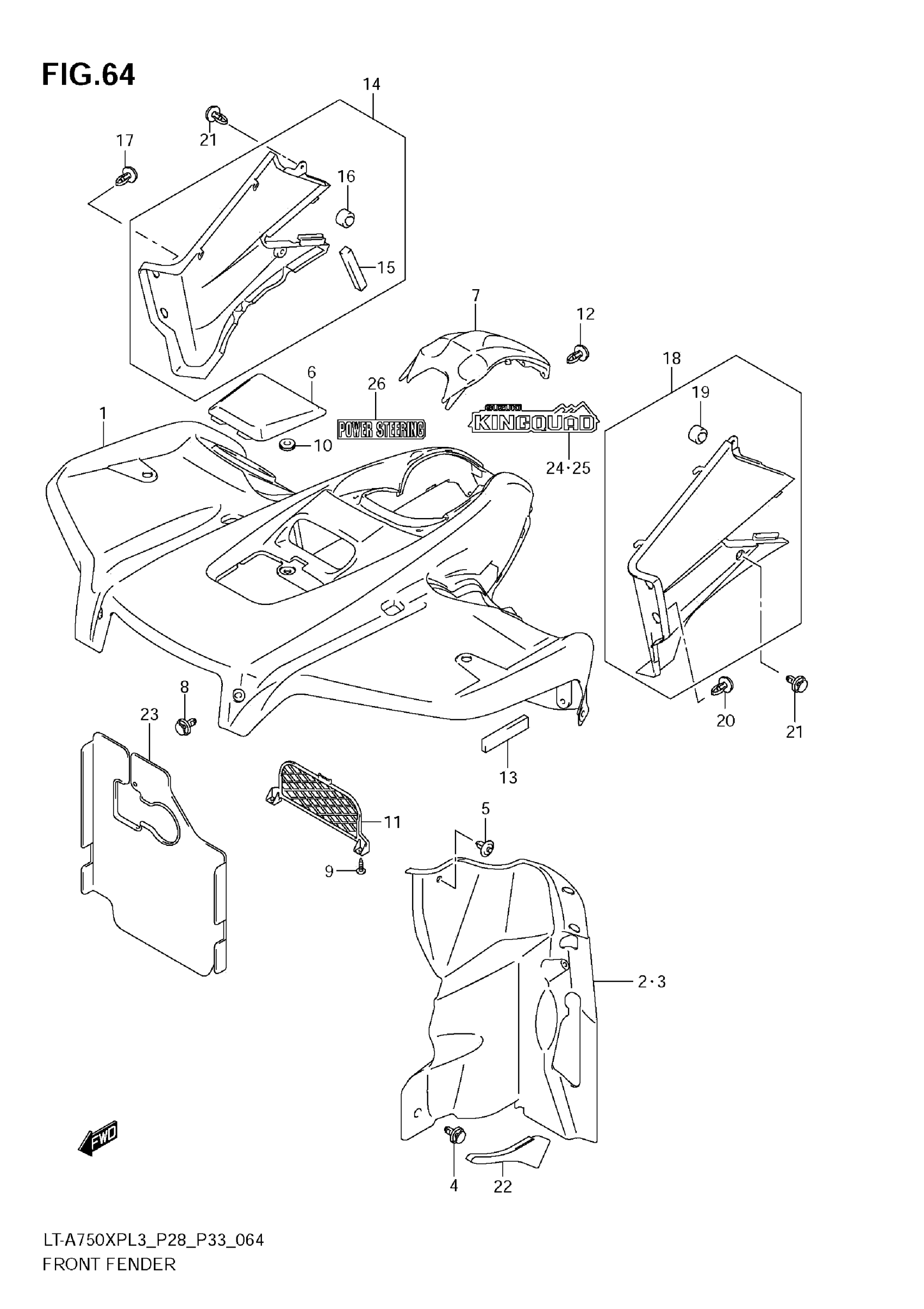

Suzuki LT-A750XPL3 (2013) FRONT FENDER (LT-A750XPL3 P33) Diagram

#

Description
Price

1

FENDER, FRONT (GREEN)

53111-31G03-YLG

$310.82

1

FENDER, FRONT (BLACK)

53111-31G03-YLZ

$303.45

1

FENDER,FRT(BLUE This part replaces 53111-31G03-YPW.

53111-31G13-YPW

$437.18

1

FENDER, FRONT (RED) This part replaces 53111-31G03-YT9.

53111-31G13-YT9

$402.18

1

FENDER, FRONT (YELLOW)

53111-31G03-YU1

$168.83

2

MUDFLAP, FENDER INNER RH

53411-31G02

$31.08

3

MUD FLAP,FENDER This part replaces 53421-31G01.

53421-31G03

$23.35

4

CLIP

09409-08335

$2.47

5

CLIP

09409-07333

$2.31

6

LID, FENDER FRONT (GREEN) This part replaces 53341-31G01-YLG.

53341-31G06-YLG

$10.28

6

LID,FENDER FRON This part replaces 53341-31G01-YLZ.

53341-31G05-YLZ

$51.58

6

LID,FENDER FRONT (BLUE) This part replaces 53341-31G01-YPW.

53341-31G06-YPW

$48.30

6

LID, FENDER FRONT (RED) This part replaces 53341-31G01-YT9.

53341-31G06-YT9

$10.61

6

LID,FRONT FENDE This part replaces 53341-31G01-YU1.

53341-31G04-YU1

$30.33

7

FENDER,CENTER This part replaces 53119-31G02-YLG.

53119-31G05-YLG

$25.60

7

FENDER,CENTER This part replaces 53119-31G02-YLZ.

53119-31G05-YLZ

$24.07

7

FENDER, CENTER (BLUE)

53119-31G02-YPW

$42.17

7

FENDER,CENTER This part replaces 53119-31G02-YT9.

53119-31G05-YT9

$22.24

7

FENDER,CENTER This part replaces 53119-31G02-YU1.

53119-31G03-YU1

$26.62

8

CLIP

09409-08335

$2.47

9

SCREW

03541-0516A

$1.49

10

CUSHION

09320-08018

$3.04

11

COVER,INNER This part replaces 53212-31G01.

53212-31G03

$15.23

12

CLIP

09409-08335

$2.47

13

CUSHION, FENDER SIDE

53145-07G01

$8.13

14

COVER,SIDE,R This part replaces 53110-31G10-291.

53112-31G04

$42.81

15

CUSHION, COVER SIDE

53146-05G00

$7.27

16

CUSHION

09321-10019

$4.90

17

CLIP

09409-08335

$2.47

18

COVER,SIDE,L This part replaces 53110-31G20-291.

53122-31G04

$95.93

19

CUSHION, COVER SIDE

53146-05G00

$7.27

20

CLIP

09409-08335

$2.47

21

CLIP

09409-08335

$2.47

22

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$15.47

23

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$30.10

24

EMBLEM,FR FENDE This part replaces 68151-31GC0-EFG.

68151-31GC1-EFG

$47.82

25

EMBLEM,LH This part replaces 68152-31GC0-EFG.

68152-31GC1-EFG

$47.82

26

EMBLEM,"POWER-S This part replaces 68151-31GD0-CT5.

68151-31GD1-CT5

$20.80
