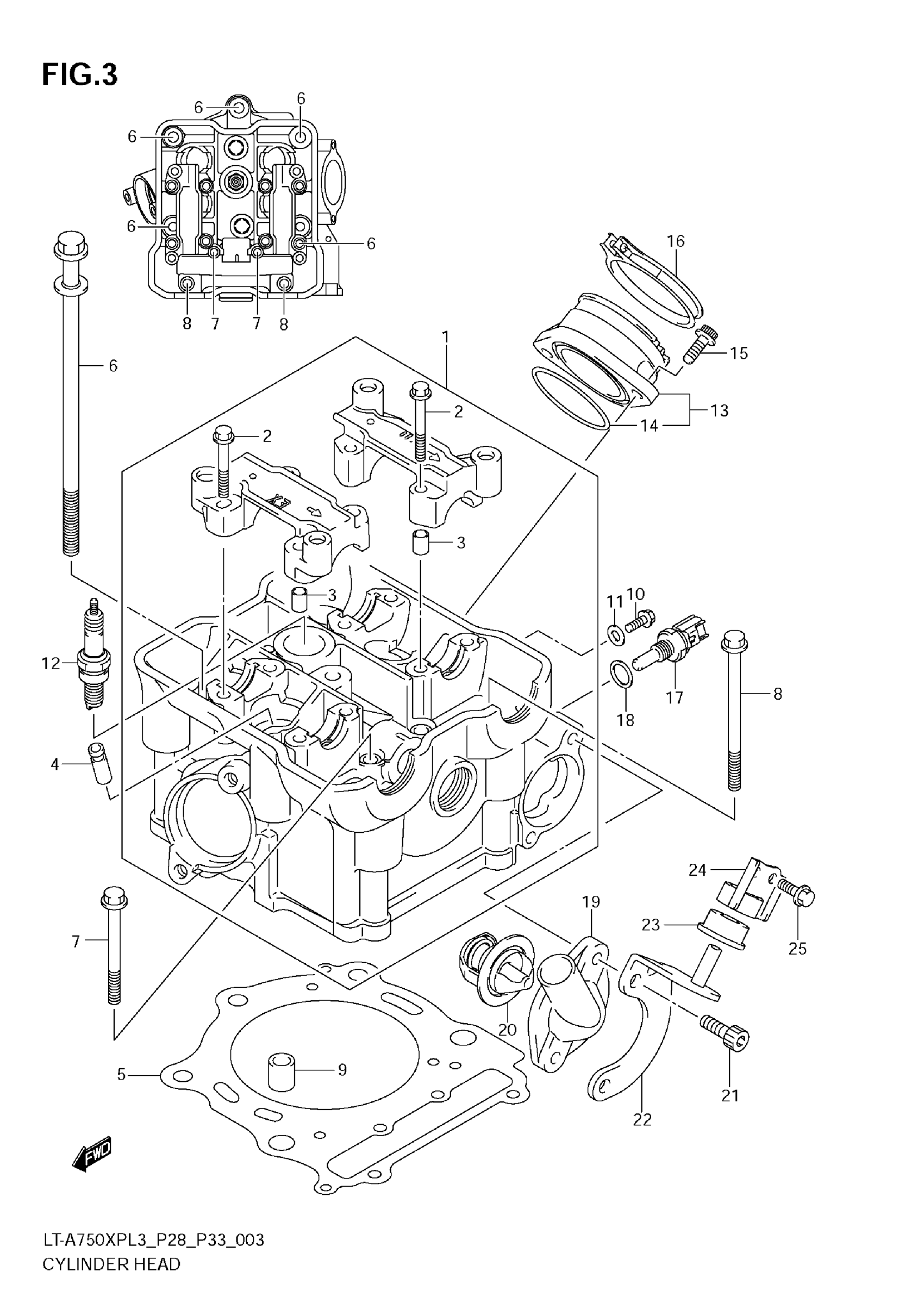

Suzuki LT-A750XPL3 (2013) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-31G00

$1,599.55

2

BOLT (6X40)

09103-06266

$2.13

3

PIN (8X11)

09206-08001

$1.77

4

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

$44.28

5

GASKET, CYLINDER HEAD

11141-31G50

$40.64

6

BOLT,CYLINDER HEAD (L:200)

11161-31G00

$15.50

7

BOLT (6X100)

09103-06060

$2.61

8

BOLT (6X70)

09103-06103

$2.61

9

PIN

04211-13189

$2.19

10

BOLT (6X12)

09103-06222

$2.28

11

GASKET (5.8X13X1.2)

09168-06023

$2.01

12

SPARK PLUG (NGK,CR6E)

09482-00528

$5.75

12

SPARK PLUG (DENSO,U20ESR-N)

09482-00529

$5.67

12

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$5.99

12

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$5.58

12

SPARK PLUG (NGK,CR7E) | OPT

09482-00516

$5.75

12

SPARK PLUG (DENSO,U22ESR-N) | OPT

09482-00515

$5.46

12

PLUG SPARK (CR9E) | OPT

09482-00458

$5.75

12

SPARK PLUG (DENSO,U27ESR-N) | OPT

09482-00459

$5.58

12

SPARK PLUG (NGK,CR6EIA-9) | OPT

09482-00590

$18.73

13

PIPE ASSY,INTAKE This part replaces 13101-31G00.

13101-31G01

$45.38

14

O RING

13118-31G00

$4.85

15

BOLT (6X18)

09106-06105

$2.80

16

CLAMP

09402-62208

$6.02

17

SENSOR, WATER TEMP

13650-10G00

$79.85

18

GASKET (12X17X1)

09168-12017

$1.97

19

COVER THERMOSTAT

17661-31G00

$53.58

20

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

$23.59

21

BOLT

07130-0825A

$2.80

22

PLATE,ENG MTG DAMPER

11653-31G02

$22.87

23

DAMPER, ENG MTG

11654-31G00

$3.05

24

STOPPER, ENG MTG

11655-31G03

$19.68

25

BOLT (8X12)

01550-0812A

$2.31
