2012 Suzuki LT-A750XPL2 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2012 Suzuki LT-A750XPL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

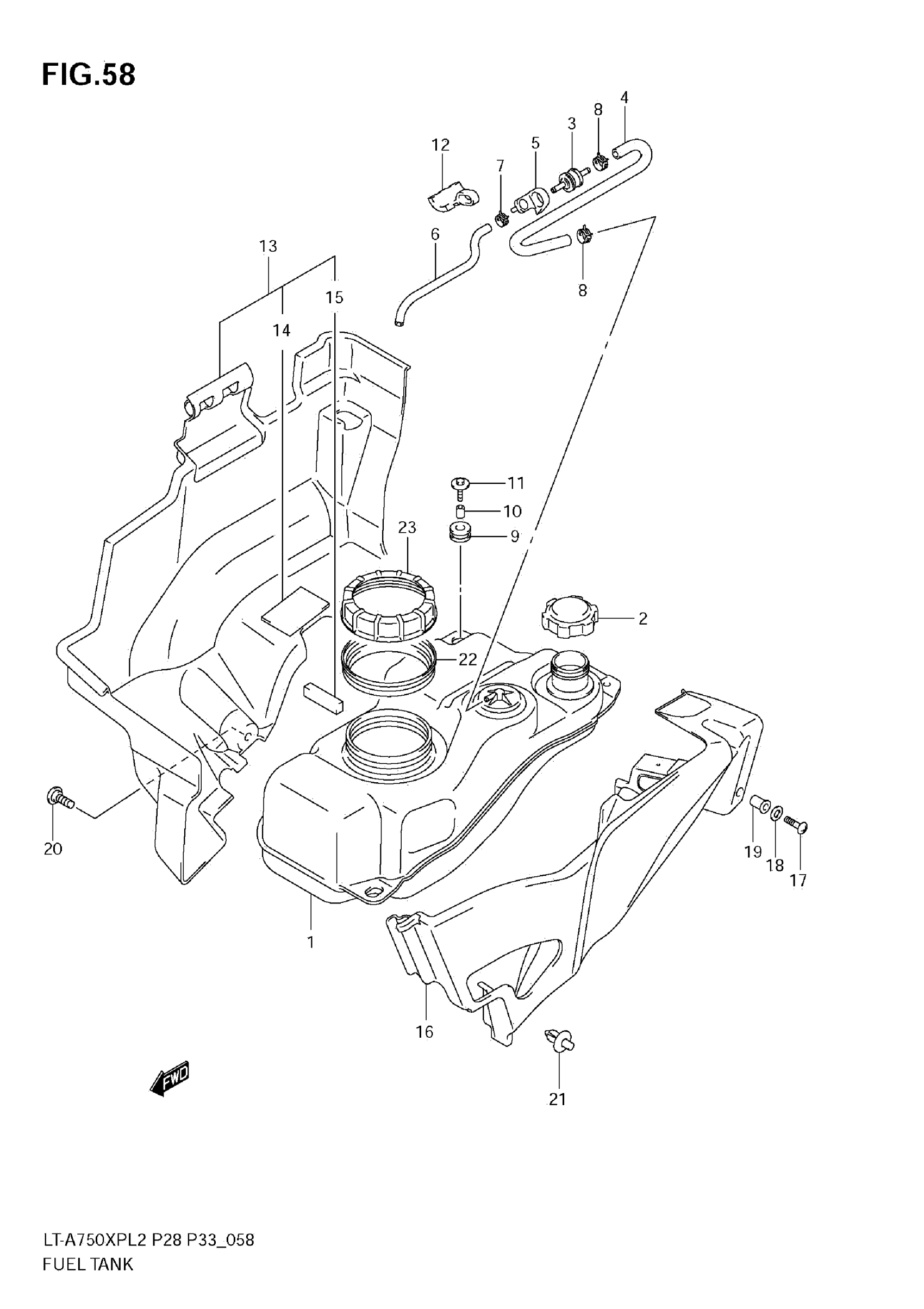

2012 Suzuki LT-A750XPL2 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL This part replaces 44100-31G12.

44100-31G21

1
Out of stock

2

CAP ASSY, FUEL TANK FILLER

44200-31G00

1
Out of stock

3

VALVE,2 WAY CHECK

85451-75100

1
Out of stock

4

HOSE,CHECK VALV This part replaces 44425-31G00.

44425-31G01

1
Out of stock

5

CUSHION, CHECK VALVE This part replaces 44881-31G00.

44881-31G01

1
Out of stock

6

HOSE, TANK BREATHER This part replaces 44434-31G10.

44434-31G11

1
Out of stock

7

CLIP

09401-08409

1
Out of stock

8

CLIP (ID:9.4,H:8)

09401-09403

2
Out of stock

9

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

3
Out of stock

10

SPACER (6.5X10X14)

09180-06293

3
Out of stock

11

BOLT (6X30)

09116-06050

3
Out of stock

12

CUSHION, FUEL TANK SIDE

44541-31G00

1
Out of stock

13

COVER,F/TANK LO This part replaces 44390-31G21.

44390-31G60

1
Out of stock

14

CUSHION FUEL TANK COVER NO.1

44542-10G00

1
Out of stock

15

CUSHION FUEL TANK COVER NO.2

53146-05G00

1
Out of stock

16

COVER, FUEL TANK OUTER

44391-31G00

1
Out of stock

17

SCREW

02142-0520B

1
Out of stock

18

WASHER (5.5X20X1.4)

09160-05046

1
Out of stock

19

NUT

09159-05019

1
Out of stock

20

SCREW (6X16)

09139-06137

1
Out of stock

21

CLIP

09409-07333

2
Out of stock

22

PACKING,FUEL PU This part replaces 44596-10G00.

44596-10G01

1
Out of stock

23

RETAINER, FUEL PUMP

44597-10G00

1
Out of stock
