2012 Suzuki LT-A750XPL2 AIR Cleaner Diagram

← All diagrams

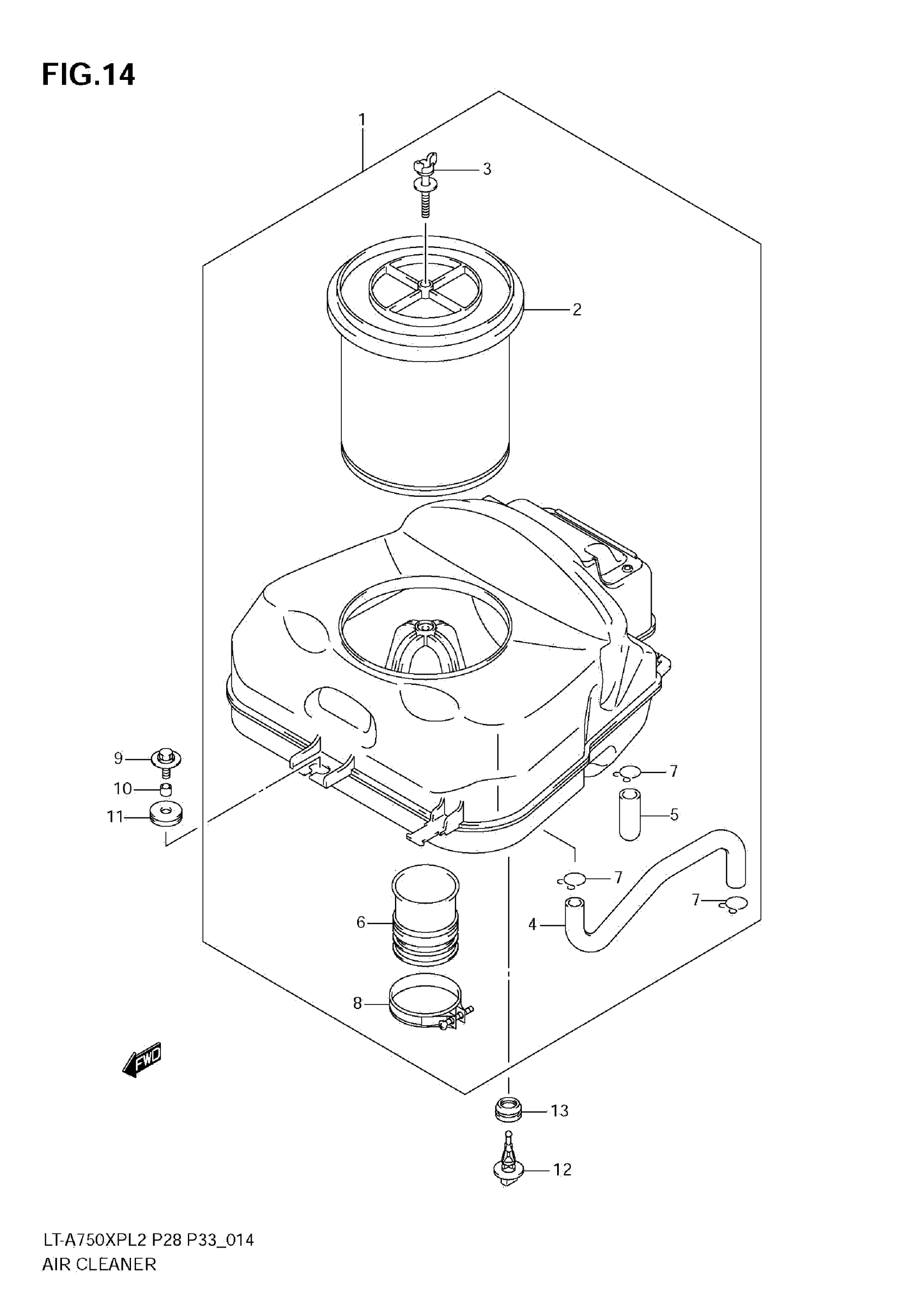

Find the part on the AIR Cleaner diagram for your 2012 Suzuki LT-A750XPL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-A750XPL2 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AI This part replaces 13700-31G30.

13700-31G32

1
Out of stock

2

FILTER ASSY

13780-31G30

1
Out of stock

3

BOLT, WING

13831-31G00

1
Out of stock

4

.TUBE, BREATHER This part replaces 13853-31G00.

13853-31G01

1
Out of stock

5

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

1
Out of stock

6

.TUBE,OUTLET This part replaces 13881-31G01.

13881-31G02

1
Out of stock

7

CLIP

09401-14301

3
Out of stock

8

CLAMP

09402-58208

1
Out of stock

9

BOLT (6X20)

09116-06149

3
Out of stock

10

SPACER (6.1X8X9.5)

09180-06248

3
Out of stock

11

CUSHION

09320-08028

3
Out of stock

12

SENSOR, AIR TEMP

13650-52G00

1
Out of stock
