2012 Suzuki LT-A750XPL2 Final Bevel Gear Diagram

← All diagrams

Find the part on the Final Bevel Gear diagram for your 2012 Suzuki LT-A750XPL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

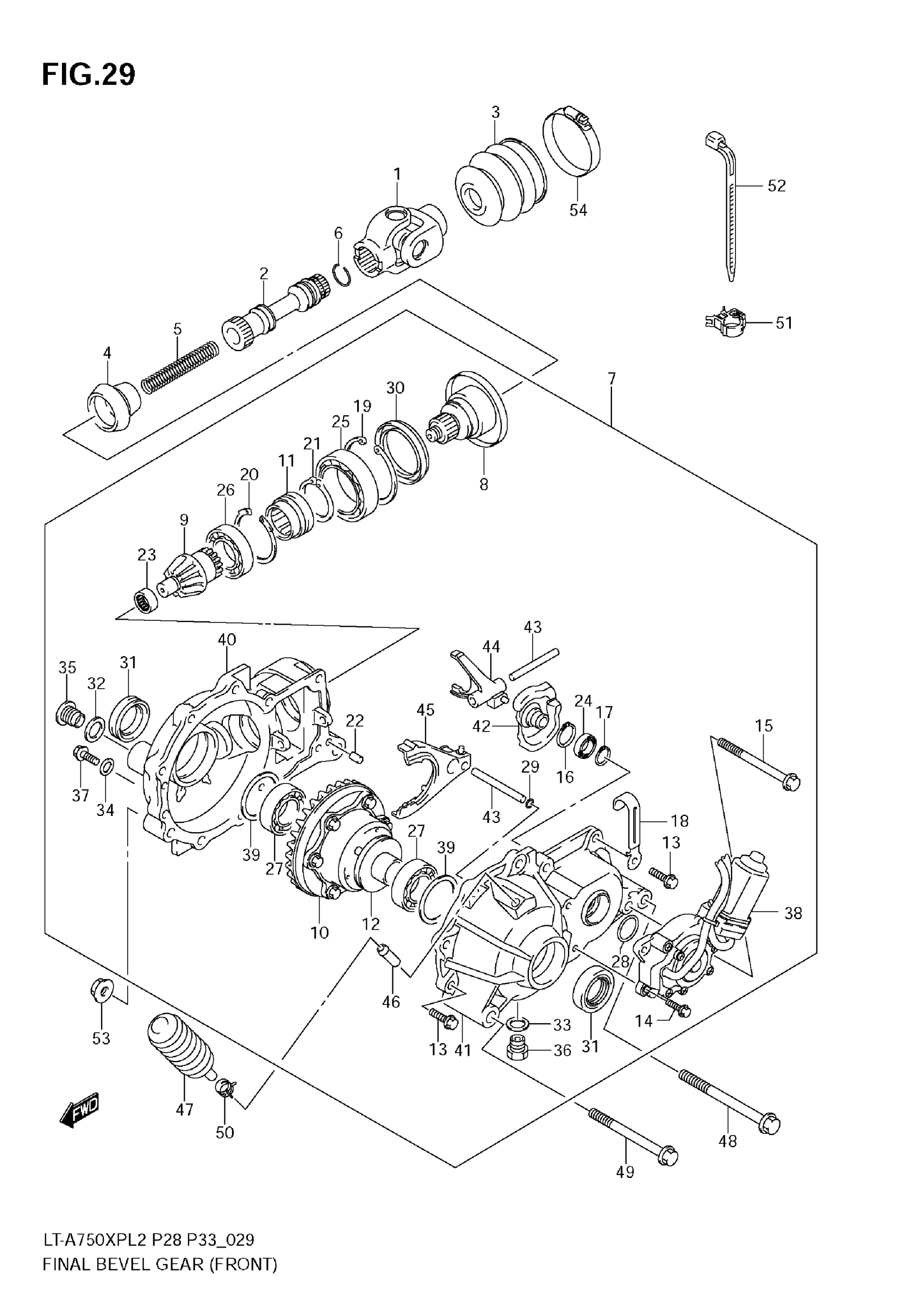

2012 Suzuki LT-A750XPL2 Final Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$248.52

In stock

2

SHAFT, PROPELLER

27151-31G30

1

$86.10

In stock

5

1

$6.35

In stock

6

CIRCLIP

09381-20004

1
Out of stock

8

1

$343.07

In stock

9

1

$274.80

In stock

10

1

$585.50

In stock

11

SLEEVE

27371-31GA0

1
Out of stock

12

PIN, SLEEVE DIFF LOCK

27381-31GA0

1
Out of stock

13

BOLT 8X25

27401-38FA1

9
Out of stock

14

FLANGE BOLT, HEX HEAD

27401-31GB0

2

$3.17

In stock

15

FLANGE BOLT, HEX HEAD

27401-31GC0

1
Out of stock

16

SNAP RING

27403-31GA0

1

$5.10

In stock

17

SNAP RING

27403-31GB0

1

$5.10

In stock

18

SNAP RING

27403-31GC0

1
Out of stock

19

RING SNAP

27403-38FA0

1
Out of stock

20

RING SNAP

27403-38FB0

1
Out of stock

21

SNAP RING

27403-38FC0

1
Out of stock

22

PIN

27404-31GA0

2
Out of stock

23

BEARING, PINION

27405-31GA0

1

$18.17

In stock

24

BEARING

27405-31GB0

1

$14.69

In stock

25

BEARING

27405-38FA0

1
Out of stock

26

BEARING

27405-38FB0

1
Out of stock

27

BEARING

27405-38FD0

2
Out of stock

28

1

$10.14

In stock

29

1

$9.32

In stock

30

OIL SEAL

27406-38FB0

1
Out of stock

31

OIL SEAL

27406-38FD0

2
Out of stock

32

.WASHER This part replaces 27407-38FA0.

27407-31GA0

1
Out of stock

33

WASHER

27407-38FB0

1
Out of stock

34

WASHER

27407-38FD0

1
Out of stock

35

PLUG

27409-38FA0

1
Out of stock

36

PLUG

27409-38FB0

1
Out of stock

37

PLUG, LEVEL

27409-38FC0

1
Out of stock

38

1

$801.50

In stock

39

SHIM SET

27445-38FA0

2
Out of stock

40

1

$413.45

In stock

41

COVER, FINAL DRIVE, FR

27461-31GA0

1
Out of stock

42

CAM SHIFT

27911-31GA0

1

$300.27

In stock

43

ROD SHIFT

27921-31GA0

2
Out of stock

44

FORK SHIFT, 2WD & 4WD

27941-31GA0

1
Out of stock

45

FORK SHIFT, DIFFLOCK

27951-31GA0

1

$115.72

In stock

46

UNION

09364-08003

1
Out of stock

47

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

1
Out of stock

48

BOLT (10X90)

09103-10061

1

$6.98

In stock

49

BOLT (10X110)

09103-10148

1
Out of stock

50

CLIP

09401-08411

1
Out of stock

51

CLAMP (L:125)

09407-14403

1
Out of stock

52

CLAMP (L:125)

09407-14403

1
Out of stock

53

NUT

09159-10115

2
Out of stock

54

CLAMP

09402-80501

1

$15.12

In stock
