2012 Suzuki LT-A750XPL2 Camshaft-Valve Diagram

← All diagrams

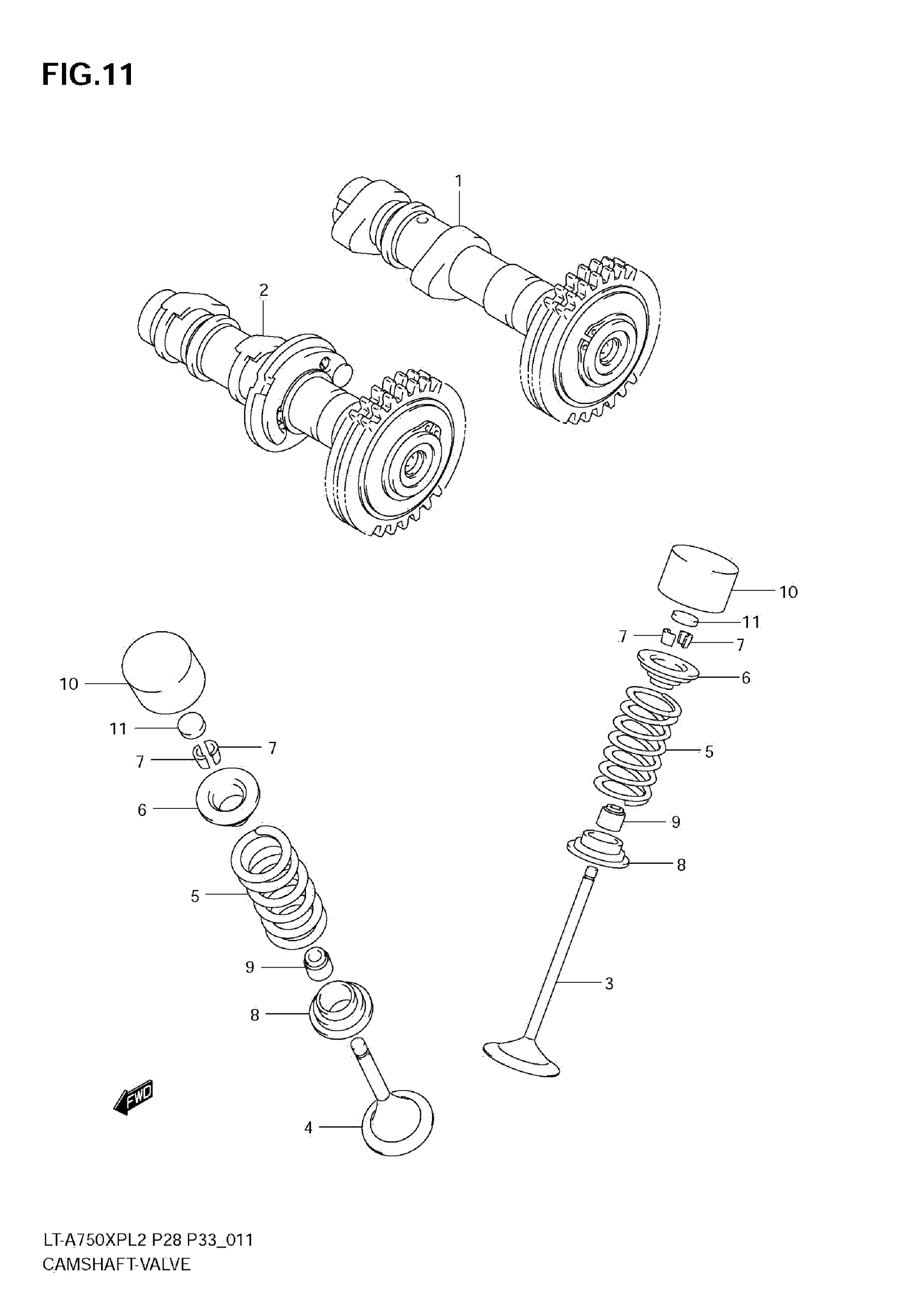

Find the part on the Camshaft-Valve diagram for your 2012 Suzuki LT-A750XPL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-A750XPL2 Camshaft-Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT, INTAKE

12710-31G00

1
Out of stock

2

CAMSHAFT, EXHAUST

12720-31G00

1
Out of stock

3

VALVE,INTAKE

12911-31G00

2
Out of stock

4

VALVE,EXHAUST

12912-31G00

2
Out of stock

5

SPRING,VALVE

12921-31G00

4
Out of stock

6

RETAINER,VALVE SPRING

12931-02F10

4
Out of stock

7

COTTER, VALVE

12932-24400

8
Out of stock

8

SEAT,VALVE SPRING

12933-38400

4
Out of stock

9

OIL SEAL (5.5X11X8.2)

09289-05015

4
Out of stock

10

TAPPET This part replaces 12891-02F00.

12891-02F10

4
Out of stock

11

SHIM, TAPPET

12892-41C00-230

4
Out of stock

11

SHIM, TAPPET

12892-41C00-235

4
Out of stock

11

SHIM, TAPPET

12892-41C00-240

4
Out of stock

11

SHIM, TAPPET

12892-41C00-245

4
Out of stock

11

SHIM, TAPPET

12892-41C00-250

4
Out of stock

11

SHIM, TAPPET

12892-41C00-255

4
Out of stock

11

SHIM, TAPPET

12892-41C00-260

4
Out of stock

11

SHIM, TAPPET

12892-41C00-265

4
Out of stock

11

SHIM, TAPPET

12892-41C00-270

4
Out of stock

11

SHIM, TAPPET

12892-41C00-275

4
Out of stock

11

SHIM, TAPPET

12892-41C00-280

4
Out of stock

11

SHIM, TAPPET

12892-41C00-285

4
Out of stock

11

SHIM, TAPPET

12892-41C00-290

4
Out of stock

11

SHIM, TAPPET

12892-41C00-295

4
Out of stock

11

SHIM, TAPPET

12892-41C00-300

4
Out of stock

11

SHIM, TAPPET

12892-41C00-305

4
Out of stock

11

SHIM, TAPPET

12892-41C00-310

4
Out of stock

11

SHIM, TAPPET

12892-41C00-315

4
Out of stock

11

SHIM, TAPPET

12892-41C00-320

4
Out of stock

11

SHIM, TAPPET

12892-41C00-325

4
Out of stock

11

SHIM, TAPPET

12892-41C00-330

4
Out of stock

11

SHIM, TAPPET

12892-41C00-335

4
Out of stock

11

SHIM, TAPPET

12892-41C00-340

4
Out of stock

11

SHIM, TAPPET

12892-41C00-345

4
Out of stock

11

SHIM, TAPPET

12892-41C00-350

4
Out of stock

12

SHIM SET, TAPPET INC.REF.NO.11-4%11-25 (5PCS.EACH) & NO.13 | OPT NOT ILLUSTRATED

12800-41810

1
Out of stock

13

CASE, TAPPET SHIM | OPT NOT ILLUSTRATED

99000-69471

1
Out of stock
