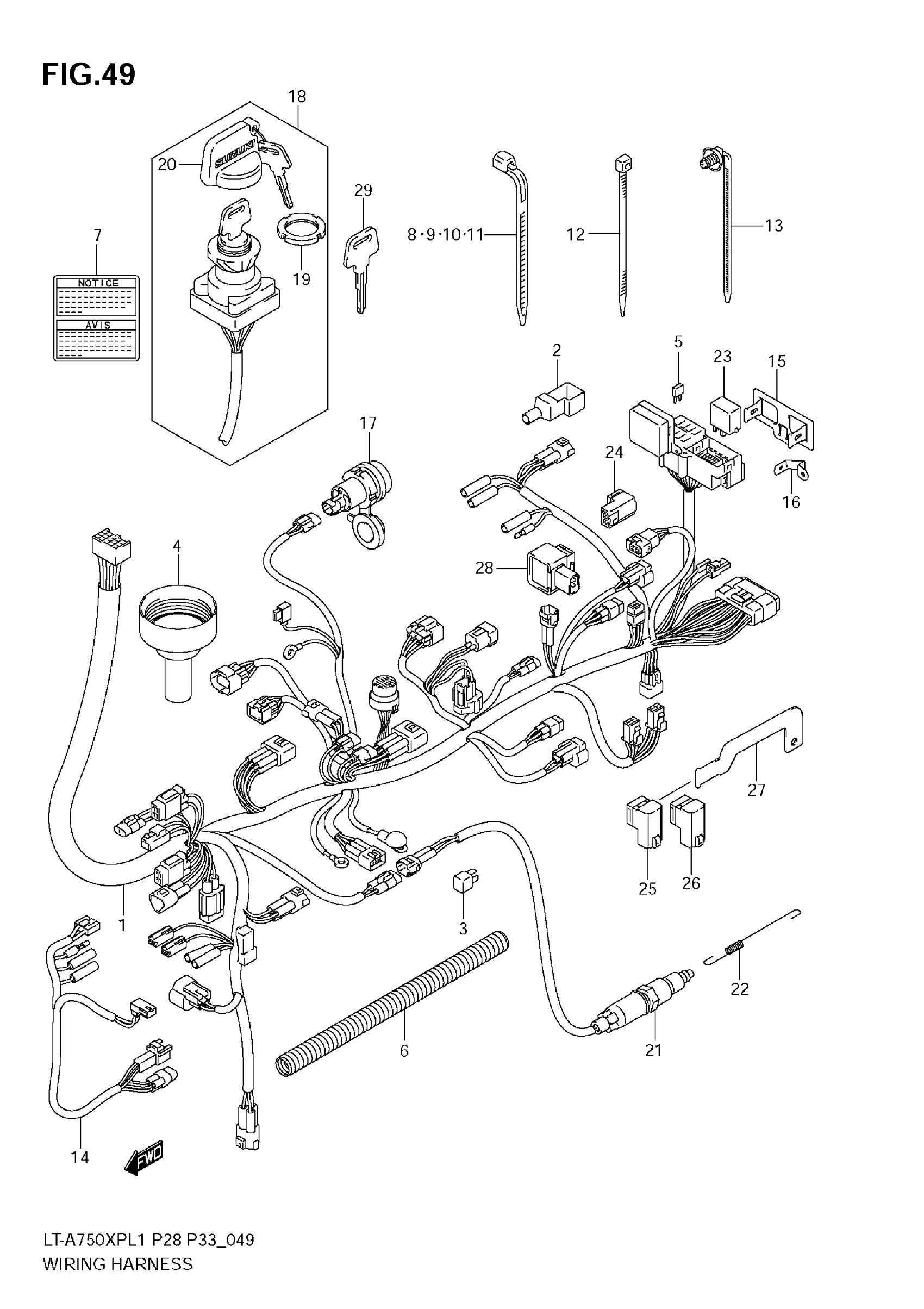

Suzuki LT-A750XPL1 (2011) WIRING HARNESS (LT-A750XPZ L1 E28) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-31GB1.

36610-31GB4

$655.93

2

COVER, CONNECTOR

36618-31G10

$9.30

3

RECTIFIER ASSY

32800-16A00

$23.07

4

COVER, SPEED

36618-31G00

Unavailable

5

FUSE (10A)

09481-10501

$2.06

5

FUSE (15A)

09481-15501

$2.02

6

GUIDE, WIRING HARNESS

36619-31G00

$18.08

7

LABEL, POWER SOURCE TERMINAL

38852-03G20

Unavailable

8

CLAMP (L:95)

09407-11401

$2.63

9

CLAMP (L:125)

09407-14403

$2.26

10

CLAMP (L:190)

09407-19401

$3.05

11

CLAMP (L:235)

09407-25401

$4.66

12

CLAMP (L:145)

09407-14407

$3.57

13

CLAMP (L:154)

09407-17403

$4.91

14

WIRE, FRONT BRAKE SW LEAD

36857-31G00

$56.05

15

BRACKET, FUSE

36744-31G00

Unavailable

16

BRACKET, FUSE

36744-31G10

Unavailable

17

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$17.81

18

SWITCH ASSY,IGN This part replaces 37110-31G00.

37110-31G20

$91.75

19

.NUT,IGNITION SWITCH

37112-24500

$11.48

20

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

21

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

22

SPRING

09443-06080

$4.73

23

RELAY,NEUTRAL START

38730-09F00

$46.55

24

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

25

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

26

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

27

BRACKET, RELAY

38741-31G20

Unavailable

28

RELAY ASSY, DRIVE

38750-31G00

$119.65

29

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

29

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07
