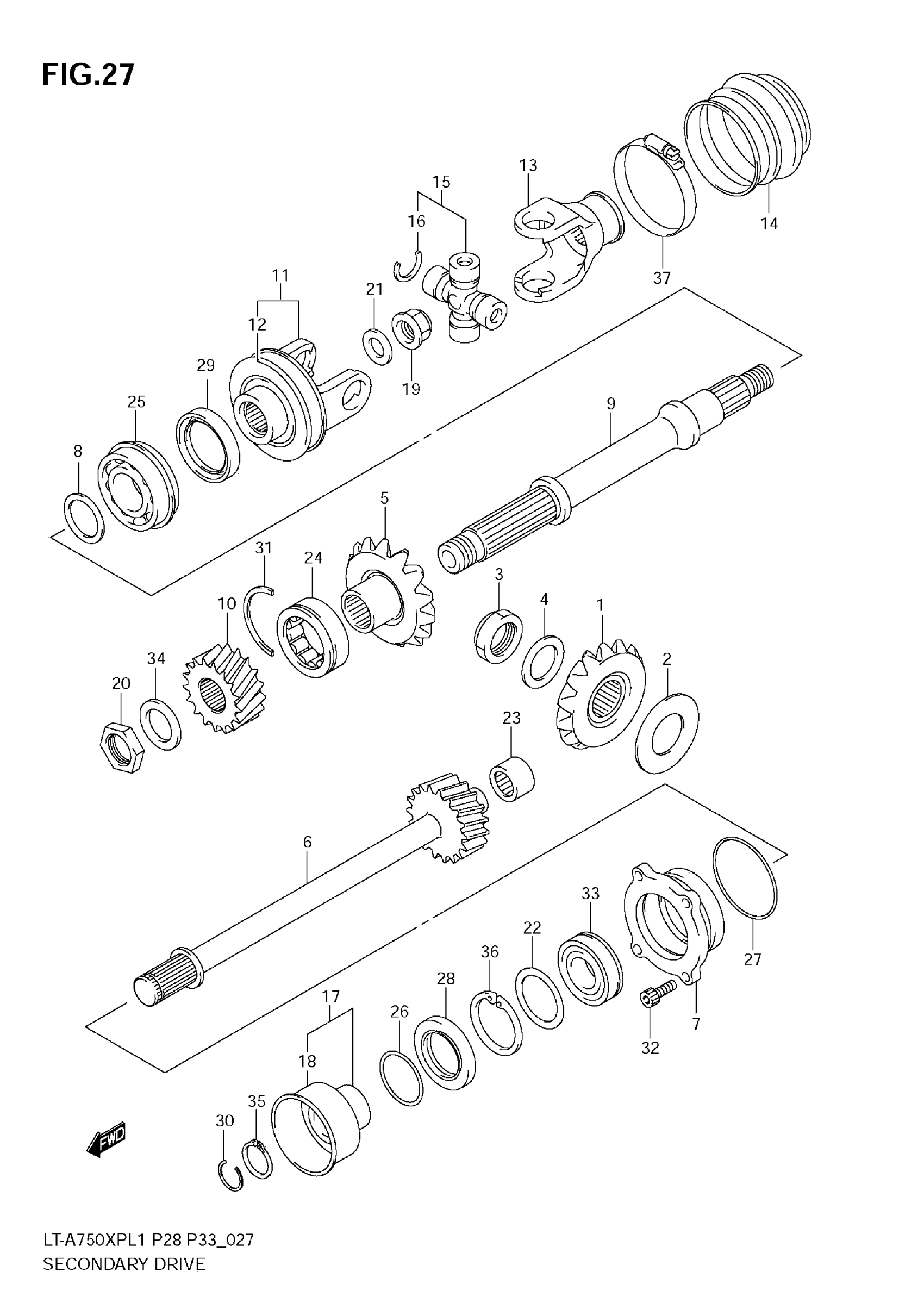

Find the part on the Secondary Drive diagram for your 2011 Suzuki LT-A750XPL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki LT-A750XPL1 Secondary Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, SEC DRIVE BEVEL

24911-31G00

1

$264.20

In stock

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55 0.58/0.60/0.63/0.65 0.68/0.70/0.73/0.75 0.78/0.80/0.83/0.85 0.88/0.90/0.93/0.95 0.98/1.00/1.03/1.05 1.08/1.10/1.13/1.15 1.18/1.20/1.23/1.25 1.28/1.30

24935-03811

1
Out of stock

3

NUT

09140-20012

1
Out of stock

4

WASHER (20X32X1.0)

09181-20223

1
Out of stock

7

1

$51.22

In stock

8

SHIM SET,SEC DRIVEN BEVEL | T:0.55/0.58/0.60/0.63 0.65/0.68/0.70/0.73 0.75/0.78/0.80/0.83 0.85/0.88/0.90/0.93 0.95/0.98/1.00/1.03 1.05/1.08/1.10/1.13 1.15/1.18/1.20/1.23 1.25/1.28/1.30/1.33 1.35/1.38/1.40

24945-03811

1
Out of stock

9

1

$199.57

In stock

10

1

$120.15

In stock

11

YOKE, RR DRIVE OUT

27130-31G10

1
Out of stock

12

FLANGE, OUTPUT YOKE

27592-31G30

1
Out of stock

13

YOKE, PROP SHAFT

27141-31G00

1
Out of stock

16

CIRCLIP

09380-25005

4

$1.81

In stock

17

COLLAR, FRONT DRIVE

27590-31G00

1

$70.33

In stock

18

1

$16.58

In stock

19

NUT

09159-16003

1
Out of stock

20

NUT

09159-22005

1
Out of stock

21

WASHER (16X30X3.0)

09160-16026

1
Out of stock

22

WASHER (40X52X1.0)

09181-40195

1

$7.28

In stock

23

BEARING (25X37X17)

09263-25068

1

$45.12

In stock

24

BEARING (30X50X17)

09263-30050

1
Out of stock

25

BEARING (25X52X20.6)

09267-25014

1
Out of stock

26

1

$2.19

In stock

27

1

$2.55

In stock

28

OIL SEAL (34X52X9)

09283-34008

1
Out of stock

29

OIL SEAL (34X52X9)

09283-34008

1
Out of stock

30

C RING

09381-21002

1

$1.59

In stock

31

RING

09390-50002

1
Out of stock

32

BOLT

07130-0620A

4
Out of stock

33

BEARING (25X52X15)

09262-25003

1
Out of stock

34

WASHER

08211-22365

1
Out of stock

35

CIRCLIP

08331-3125A

—
Out of stock

36

1

$5.02

In stock

37

CLAMP

09402-00512

1

$16.92

In stock
