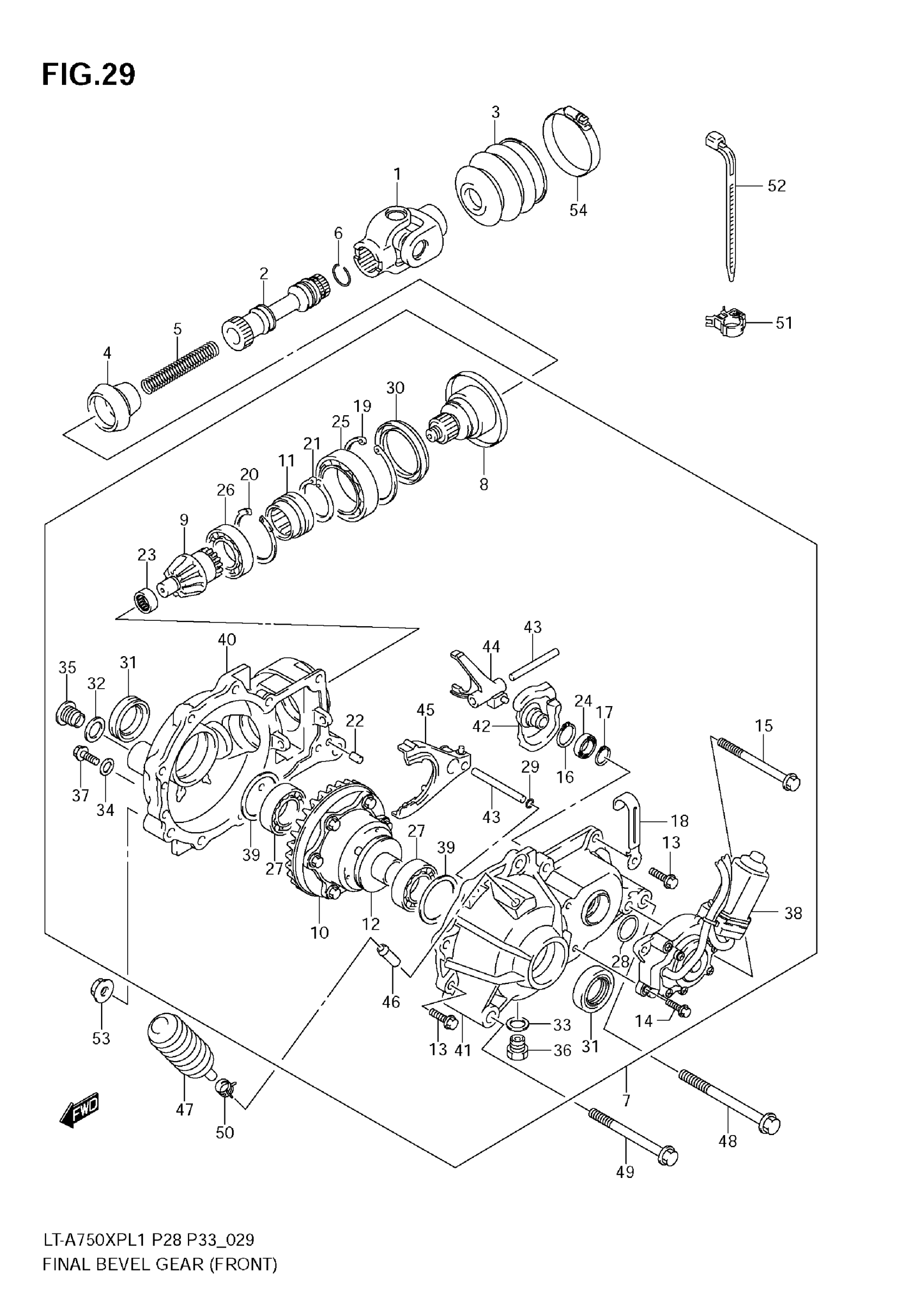

Suzuki LT-A750XPL1 (2011) FINAL BEVEL GEAR (FRONT) Diagram

#

Description
Price

1

YOKE, FR PROPELLER SHAFT

27100-31G00

$248.52

2

SHAFT, PROPELLER This part replaces 27151-31G20.

27151-31G30

$86.10

3

BOOT, FRONT PROP SHAFT YOKE This part replaces 27153-31G21.

27153-31G22

$10.46

4

BOOT,FR PROP SHAFT This part replaces 27153-31G30.

27153-31G32

$6.08

5

SPRING, FR PROPELLER

27191-31G00

$6.35

6

C RING

09381-20004

$1.64

7

CASE ASSY,FR DIFFERENTIAL This part replaces 27400-11H00.

27400-11H11

$2,680.95

8

SHAFT ASSY,INPU This part replaces 27130-31GA0.

27130-31GB1

$343.07

9

PINION,DRIVE This part replaces 27311-11HA0.

27311-11HA1

$274.80

10

RING GEAR ASSY This part replaces 27320-11HA0.

27320-31GB1

$585.50

11

SLEEVE

27371-31GA0

$86.17

12

SLEEVE PIN, DIFF LOCK

27381-31GA0

$154.87

13

FLANGE BOLT, HEX HEAD

27401-38FA1

Unavailable

14

FLANGE BOLT, HEX HEAD

27401-31GB0

$3.17

15

FLANGE BOLT, HEX HEAD

27401-31GC0

Unavailable

16

SNAP RING

27403-31GA0

$5.10

17

SNAP RING

27403-31GB0

$5.10

18

CLIP

27403-31GC0

Unavailable

19

RING SNAP

27403-38FA0

$5.43

20

RING SNAP

27403-38FB0

$5.43

21

SNAP RING

27403-38FC0

$3.68

22

PIN

27404-31GA0

Unavailable

23

BEARING, PINION

27405-31GA0

$16.69

24

BEARING

27405-31GB0

$13.49

25

BEARING

27405-38FA0

$27.27

26

BEARING

27405-38FB0

$28.69

27

BEARING

27405-38FD0

$14.94

28

.O RING This part replaces 27406-31GA0.

27406-31GE0

$9.31

29

.O RING This part replaces 27406-31GB0.

27406-31GF0

$8.56

30

OIL SEAL

27406-38FB0

$8.98

31

OIL SEAL

27406-38FD0

$7.01

32

.WASHER This part replaces 27407-38FA0.

27407-31GA0

$8.37

33

WASHER

27407-38FB0

$2.56

34

WASHER

27407-38FD0

$2.80

35

PLUG

27409-38FA0

$3.85

36

PLUG

27409-38FB0

Unavailable

37

PLUG, LEVEL

27409-38FC0

$6.03

38

.CASE,MOTOR This part replaces 27421-31GA0.

27421-31GA1

$801.50

39

SHIM SET

27445-38FA0

$127.22

40

HOUSING, FINAL DRIVE, FR

27451-31GA0

$413.45

41

COVER, FINAL DRIVE, FR

27461-31GA0

Unavailable

42

CAM SHIFT

27911-31GA0

$300.27

43

ROD SHIFT

27921-31GA0

Unavailable

44

FORK SHIFT, 2WD & 4WD

27941-31GA0

Unavailable

45

FORK SHIFT, DIFFLOCK

27951-31GA0

$115.72

46

UNION

09364-08003

$3.42

47

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$16.94

48

BOLT (10X90)

09103-10061

$6.98

49

BOLT (10X110)

09103-10148

$6.26

50

CLAMP

09401-08411

$1.77

51

CLAMP

09403-15405

$2.97

52

CLAMP (L:125)

09407-14403

$2.24

53

NUT

09159-10115

$3.21

54

CLAMP

09402-80501

$15.12
