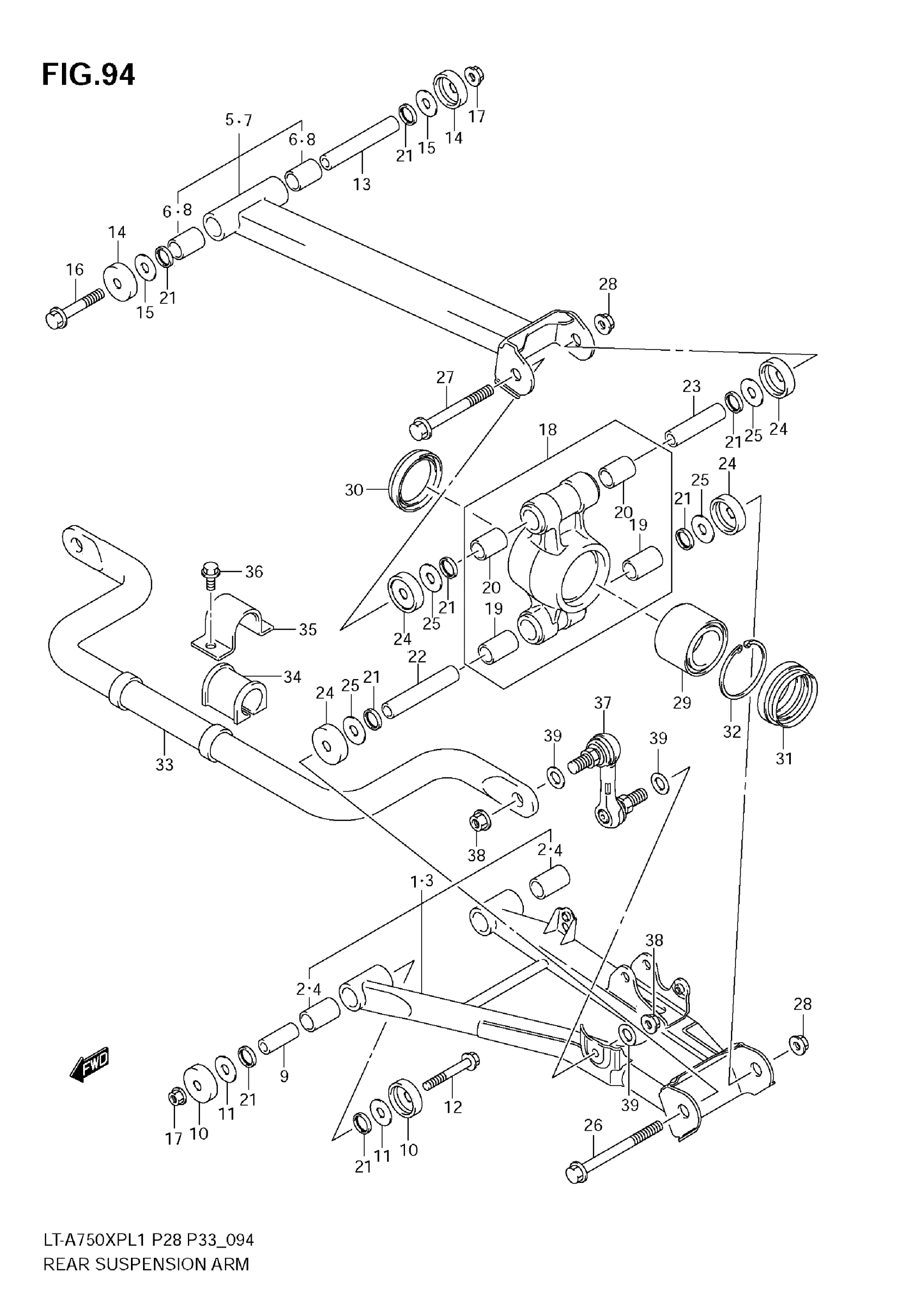

Suzuki LT-A750XPL1 (2011) REAR SUSPENSION ARM Diagram

ARM SET, RR SUSPENSION LOWER RH

61510-31830

$320.15

BUSH, RR SUSPENSION ARM LOWER

51236-31G00

$16.84

ARM SET, RR SUSPENSION LOWER LH

61520-31830

$308.38

BUSH, RR SUSPENSION ARM LOWER

51236-31G00

$16.84

ARM SET, RR SUSPENSION UPPER RH

61530-31830

$223.92

BUSH, RR SUSPENSION ARM UPPER

51236-31G00

$16.84

ARM SET, RR SUSPENSION UPPER LH

61540-31830

$219.68

BUSH, RR SUSPENSION ARM UPPER

51236-31G00

$16.84

SPACER, RR SUSPENSION ARM LOWER

61552-31G10

$15.68

SEAL, RR SUSPENSION ARM LOWER

51255-31G10

$16.82

WASHER, RR SUSPENSION ARM LOWER

08211-10281

$2.03

BOLT (10X70)

09103-10392

$4.90

SPACER, RR SUSPENSION ARM UPPER

61554-31G10

$50.50

SEAL, RR SUSPENSION ARM UPPER

51255-31G00

$16.82

WASHER

08211-10281

$2.03

BOLT (10X120)

09103-10388

$5.78

NUT

09159-10115

$3.55

KNUCKLE SET, RR SUSPENSION

61600-31830

$371.53

BUSH, RR KNUCKLE

51236-31G00

$16.84

BUSH, RR KNUCKLE UPPER

61551-31G10

$12.63

SEAL, RR KNUCKLE INNER

52454-45G00

$7.44

SPACER, RR KNUCKLE LOWER

61554-31G10

$50.50

SPACER, RR KNUCKLE UPPER

61553-31G20

$36.82

SEAL, RR KNUCKLE DUST

51255-18900

$4.48

WASHER

08211-10281

$2.03

BOLT (10X120)

09103-10388

$5.78

BOLT (10X96)

09103-10387

$7.58

NUT, RR KNUCKLE

09159-10115

$3.55

BEARING, RR HUB This part replaces 43440-84F00.

43440-58J01

$72.80

SEAL, REAR HUB INNER DUST

61615-31G00

$20.96

SEAL, REAR HUB OUTER DUST

61616-31G00

$18.59

CLIP

08331-4162A

$3.89

BAR, RR STABILIZER

61651-31G30

$219.12

BUSH, RR STABILIZER This part replaces 61652-31G20.

61652-34K00

$7.22

PLATE, RR STABILIZER

61650-31G00

Unavailable

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

JOINT, RR STABILIZER

61660-31G20

$78.81

NUT

09159-10223

$4.37

WASHER (10.5X22X2.3)

09160-10039

$2.26
