Description

Price

1

HEADLAMP ASSY RH

35100-31G90-999

Unavailable

2

CORD ASSY RH

35171-31GM1

$33.97

3

NUT

35157-31G90

$5.00

4

BULB (12V35/35W) | PHILIPS HS1 12636

09471-12101

$61.01

5

HEADLAMP ASSY LH This part replaces 35300-31G90-999.

35300-31G92-999

$92.66

6

CORD ASSY LH

35171-31GH1

$43.43

7

NUT

35157-31G90

$5.00

8

BULB (12V35/35W) | PHILIPS HS1 12636

09471-12101

$61.01

9

GROMMET

09308-07011

$2.64

10

SPRING, HEADLAMP ADJUST

35154-31300

$3.49

11

COVER,HEADLAMP HOUSING

35174-31G00

$9.99

12

SCREW (4X50)

09125-04031

$2.29

13

SCREW (6X22.5)

09139-06118

$3.05

14

CUSHION

09320-10501

$4.85

15

WASHER

08322-0104A

$1.92

16

HEADLAMP ASSY This part replaces 35100-31GB0-999.

35100-31GB3-999

$71.16

17

NUT, PANEL This part replaces 35157-31GB0.

09148-05052

$3.04

18

COVER

35174-31GB0

$13.65

19

BULB (12V,35/35W) | PHILIPS HS1 12636

09471-12101

$61.01

20

BOLT

07120-0512B

$2.61

21

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

$13.94

22

NUT

08316-1005B

$2.50

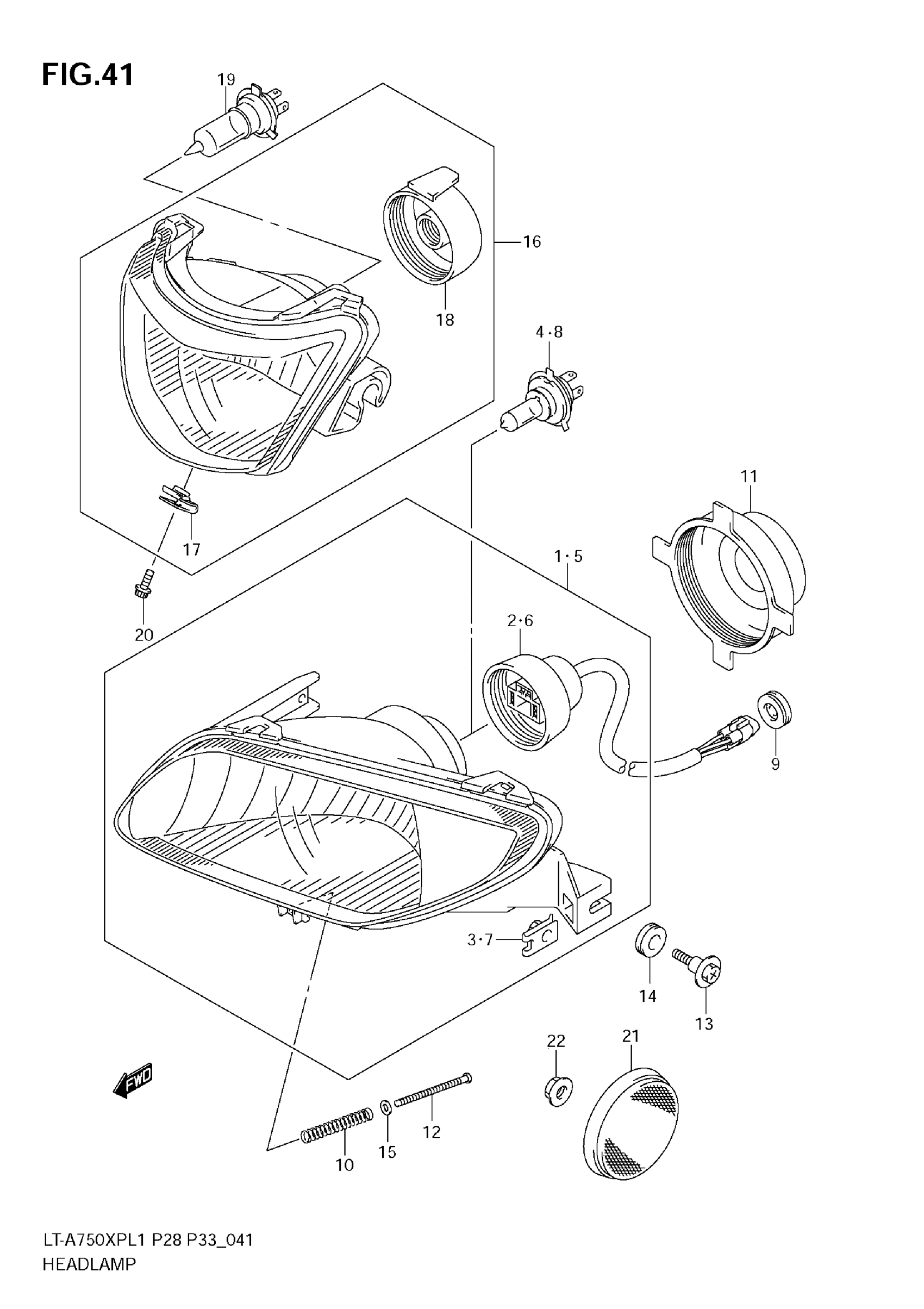

Suzuki LT-A750XPL1 (2011) HEADLAMP (LT-A750XPZ L1 E28) Diagram

HEADLAMP ASSY RH

CORD ASSY RH

NUT

BULB (12V35/35W) | PHILIPS HS1 12636

HEADLAMP ASSY LH This part replaces 35300-31G90-999.

CORD ASSY LH

NUT

BULB (12V35/35W) | PHILIPS HS1 12636

GROMMET

SPRING, HEADLAMP ADJUST

COVER,HEADLAMP HOUSING

SCREW (4X50)

SCREW (6X22.5)

CUSHION

WASHER

HEADLAMP ASSY This part replaces 35100-31GB0-999.

NUT, PANEL This part replaces 35157-31GB0.

COVER

BULB (12V,35/35W) | PHILIPS HS1 12636

BOLT

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

NUT
