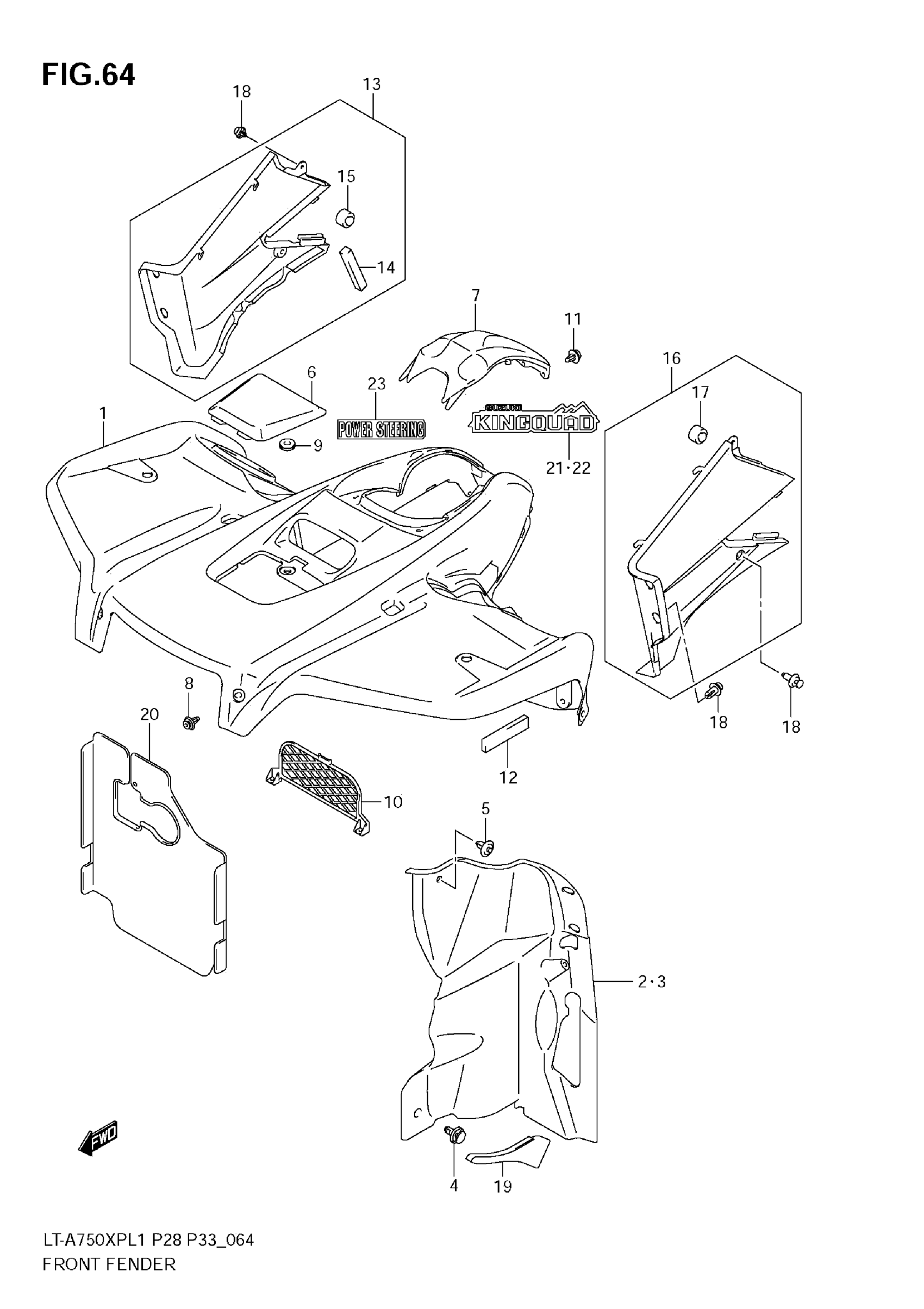

Suzuki LT-A750XPL1 (2011) FRONT FENDER (LT-A750XP L1 E33) Diagram

#

Description
Price

1

FENDER, FRONT This part replaces 53111-31G02-30H.

53111-31G03-30H

$351.22

1

FENDER, FRONT (BLACK) This part replaces 53111-31G02-YLZ.

53111-31G03-YLZ

$303.45

1

FENDER,FRT(BLUE This part replaces 53111-31G02-YPW.

53111-31G13-YPW

$437.18

1

FENDER, FRONT (YELLOW) This part replaces 53111-31G02-YU1.

53111-31G03-YU1

$168.83

2

MUDFLAP, INNER RH

53411-31G02

$31.08

3

MUD FLAP,FENDER This part replaces 53421-31G01.

53421-31G03

$23.35

4

CLIP

09409-08335

$2.47

5

CLIP

09409-07333

$2.31

6

LID,FRONT FENDE This part replaces 53341-31G00-30H.

53341-31G06-30H

$12.53

6

LID,FENDER FRON This part replaces 53341-31G00-YLZ.

53341-31G05-YLZ

$51.58

6

LID,FENDER FRONT (BLUE) This part replaces 53341-31G00-YPW.

53341-31G06-YPW

$48.30

6

LID,FRONT FENDE This part replaces 53341-31G00-YU1.

53341-31G04-YU1

$30.33

7

FENDER,CENTER ( This part replaces 53119-31G01-30H.

53119-31G02-30H

Unavailable

7

FENDER,CENTER This part replaces 53119-31G01-YLZ.

53119-31G05-YLZ

$24.07

7

FENDER, CENTER (BLUE) This part replaces 53119-31G01-YPW.

53119-31G02-YPW

$42.17

7

FENDER,CENTER This part replaces 53119-31G01-YU1.

53119-31G03-YU1

$26.62

8

CLIP

09409-08335

$2.47

9

CUSHION

09320-08018

$3.04

10

COVER,INNER This part replaces 53212-31G00.

53212-31G03

$15.23

11

SCREW

03241-0516A

$1.49

12

CUSHION, FENDER SIDE

53145-07G01

$8.13

13

COVER,SIDE,R This part replaces 53110-31G10-291.

53112-31G04

$42.81

14

CUSHION, COVER SIDE

53146-05G00

$7.27

15

GROMMET

09321-10019

$4.90

16

COVER,SIDE,L This part replaces 53110-31G20-291.

53122-31G04

$95.93

17

CUSHION, COVER SIDE

53146-05G00

$7.27

18

CLIP

09409-08335

$2.47

19

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$15.47

20

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$30.10

21

EMBLEM,FR FENDE This part replaces 68151-31GC0-EFG.

68151-31GC1-EFG

$47.82

22

EMBLEM,LH This part replaces 68152-31GC0-EFG.

68152-31GC1-EFG

$47.82

23

EMBLEM,"POWER-S This part replaces 68151-31GD0-CT5.

68151-31GD1-CT5

$20.80
