2011 Suzuki LT-A750XPL1 Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 2011 Suzuki LT-A750XPL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

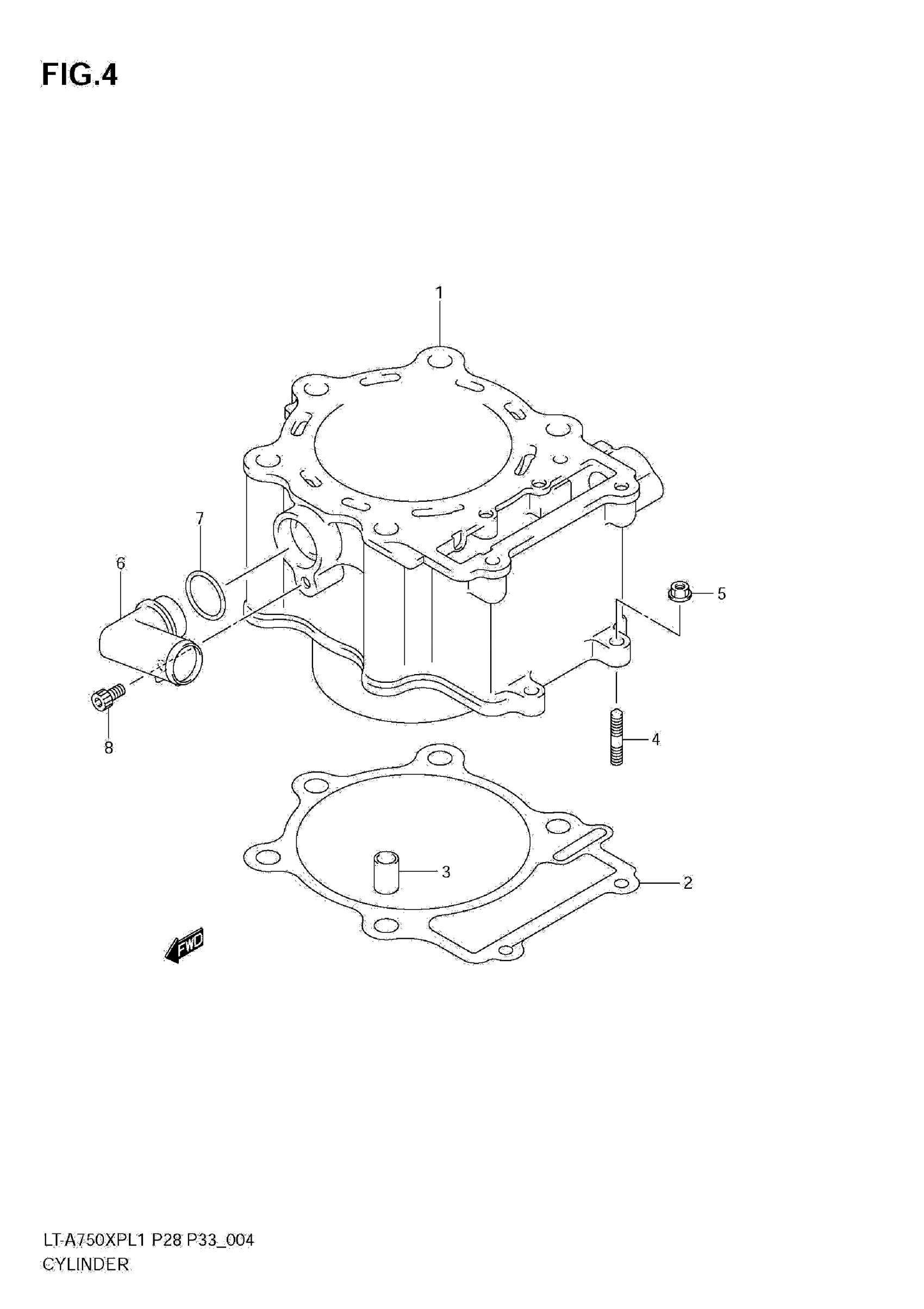

2011 Suzuki LT-A750XPL1 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

11211-31G50-0F0

1
Out of stock

2

GASKET, CYLINDER

11241-31G00

1
Out of stock

3

PIN

04211-13189

2
Out of stock

4

STUD BOLT

01421-0620A

2
Out of stock

5

NUT

08316-1006A

2
Out of stock

6

UNION,WATER HOSE

17857-31G00

1
Out of stock

7

O-RING (D:2.7,ID:21.4)

09280-21015

1
Out of stock

8

.BOLT

07130-0612B

1
Out of stock
