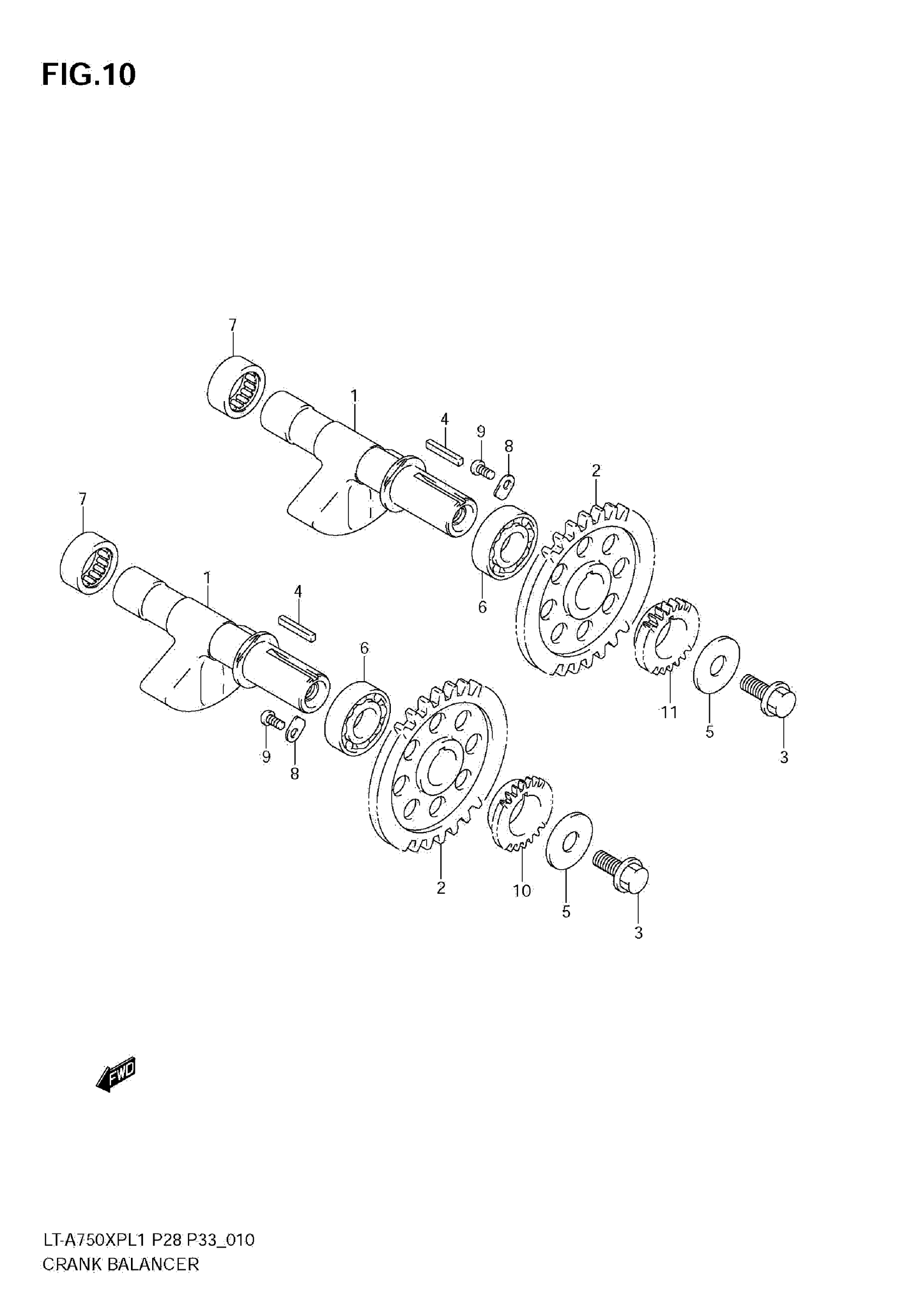

Find the part on the Crank Balancer diagram for your 2011 Suzuki LT-A750XPL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki LT-A750XPL1 Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER,CRANK

12651-31G02

2
Out of stock

2

GEAR, CRANK BALANCER DRIVEN

12666-31G11

2
Out of stock

3

BOLT (10X20)

09103-10290

2
Out of stock

4

KEY

09421-04005

2
Out of stock

5

WASHER

08211-10305

2
Out of stock

6

BEARING (20X42X12)

09262-20137

2
Out of stock

7

BEARING (20X28X16)

09263-20091

2
Out of stock

8

RETAINER, CRANK GAL BRG

24741-21A00

4
Out of stock

9

BOLT (6X12)

09125-06110

4
Out of stock

10

SPROCKET, OIL PUMP DRIVE

16321-31G00

1
Out of stock

11

GEAR, WATER PUMP DRIVE

17451-31G00

1
Out of stock
