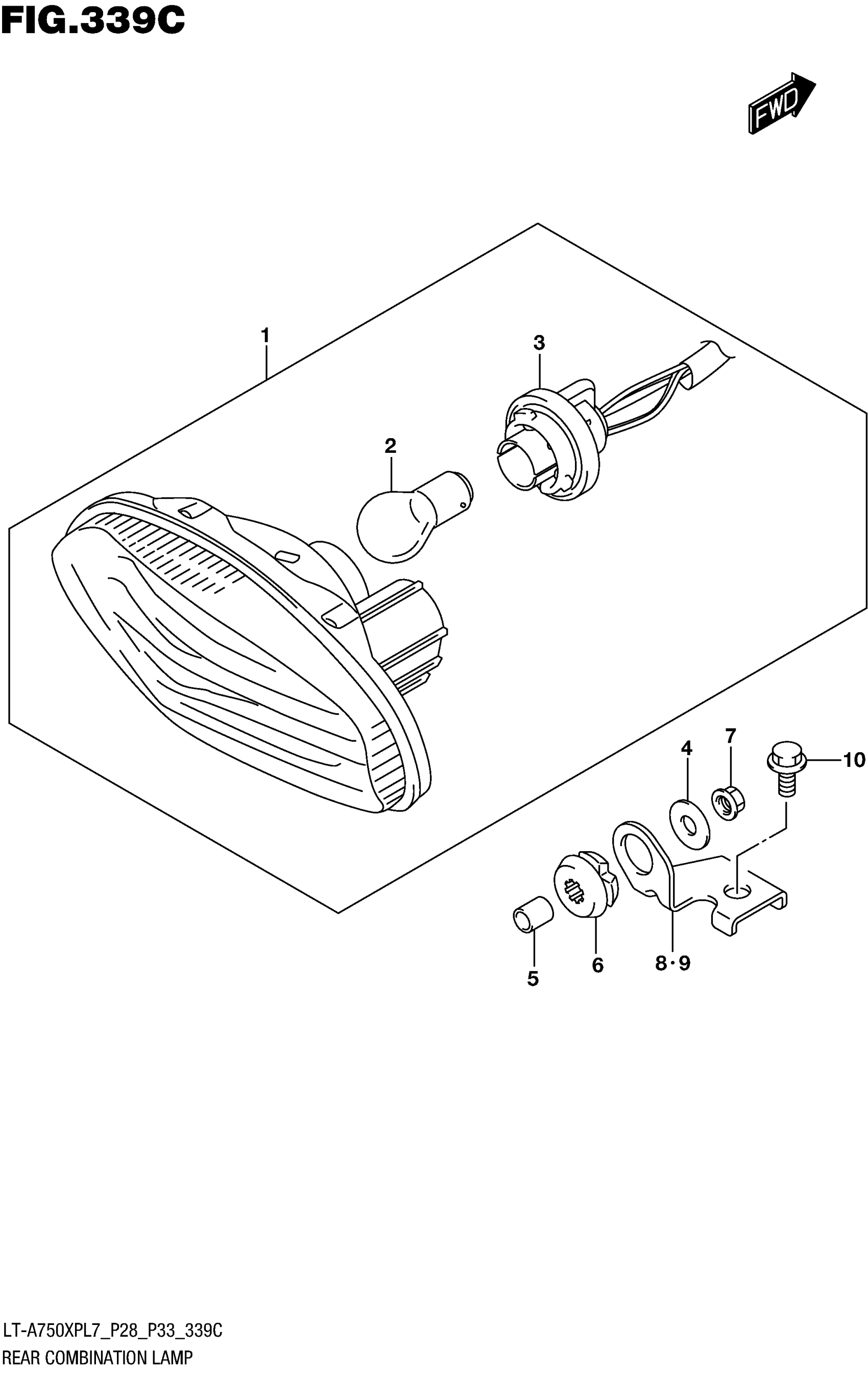

Suzuki LT-A750XPCL7 AXI, (XD3 CAMO) (2017) REAR COMBINATION LAMP (LT-A750XPL7 P33) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-31G00

$93.52

2

.BULB (12V,21/5W)

09471-12128

$6.08

3

.SOCKET & CORD

35718-03G30

$24.80

4

WASHER (6.5X20X1.2)

09160-06077

$1.89

5

SPACER (6.5X9X10.5)

09180-06264

$2.85

6

CUSHION

09320-09018

$2.28

7

NUT

08316-1006A

$2.19

8

BRACKET, REAR COMBINATION RH

35726-31G40

$10.08

9

BRACKET, REAR COMBINATION LH

35726-31G50

$10.08

10

BOLT

01550-0612A

$1.97
