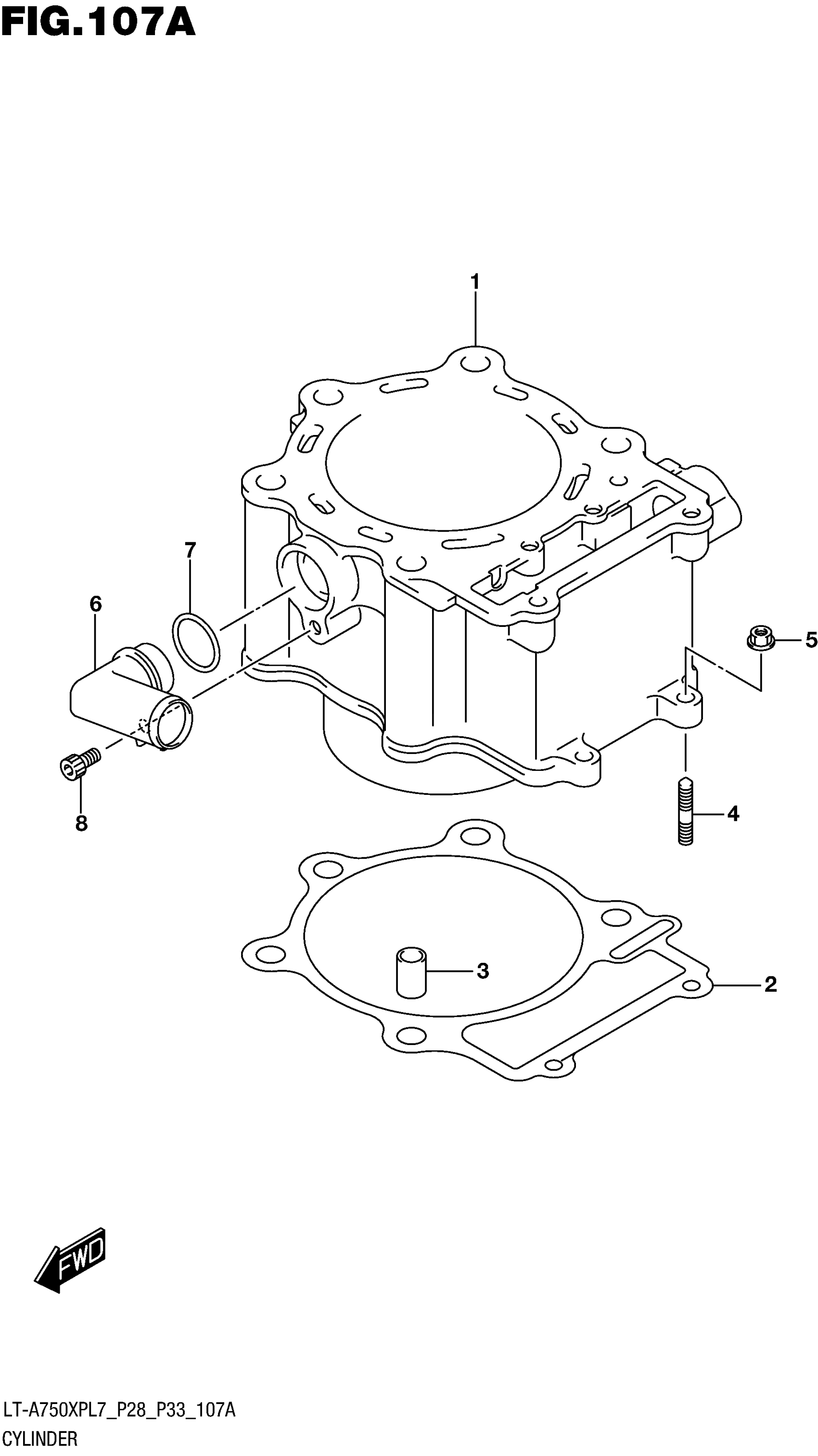

Suzuki LT-A750XPCL7 AXI, (XD3 CAMO) (2017) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11211-31G50-0F0

$1,128.33

2

GASKET, CYLINDER

11241-31G00

$16.62

3

PIN

04211-13189

$2.25

4

STUD BOLT

01421-0620A

$1.97

5

NUT

08316-1006A

$2.25

6

UNION,WATER HOSE

17857-31G00

$40.73

7

O RING (D:2.7,ID:21.4)

09280-21015

$2.80

8

BOLT

07130-0612A

$2.58
