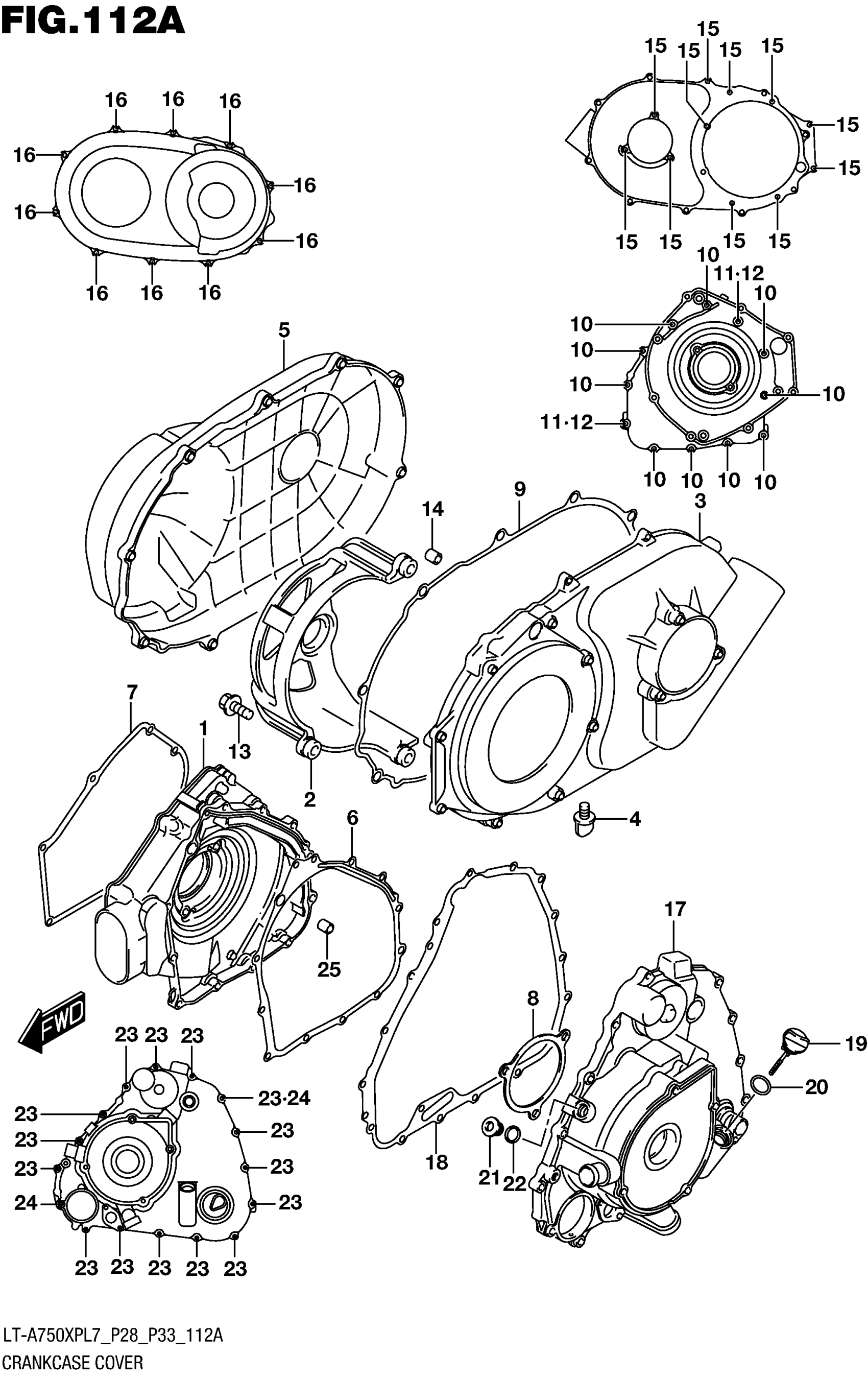

Suzuki LT-A750XPCL7 AXI, (XD3 CAMO) (2017) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH This part replaces 11341-31G00.

11341-31G02

$209.12

2

HOUSING, V-BELT BEARING

11342-31G10

$148.18

3

COVER,V BELT INNER

11370-31G00

$159.77

4

PLUG, WATER DRAIN

11375-31G00

$4.03

5

COVER,V BELT OUTER

11380-31G00

$142.00

6

GASKET, CLUTCH COVER

11482-31G00

$13.95

7

GASKET, V-BELT COVER INNER FR

11484-31G00

$22.74

8

GASKET, V-BELT COVER INNER RR

11485-31G00

$7.85

9

GASKET, V-BELT COVER OUTER

11486-31G00

$24.21

10

BOLT

01547-0625A

$2.01

11

BOLT

01547-0635A

$2.30

12

PIN

04211-11169

$1.78

13

BOLT

01547-0635A

$2.30

14

PIN

04211-09149

$1.65

15

BOLT

01547-0625A

$2.01

16

BOLT

01547-0625A

$2.01

17

COVER,MAGNETO

11350-31G01

$399.87

18

GASKET, MAGNETO COVER

11483-31G00

$24.99

19

GAUGE,OIL LEVEL

11971-09F50

$9.78

20

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

21

PLUG

09248-14011

$2.98

22

GASKET (14X18X1.5)

09168-14014

$1.70

23

BOLT

01547-0625A

$2.01

24

BOLT

01547-0635A

$2.30

25

PIN

04211-11169

$1.78
