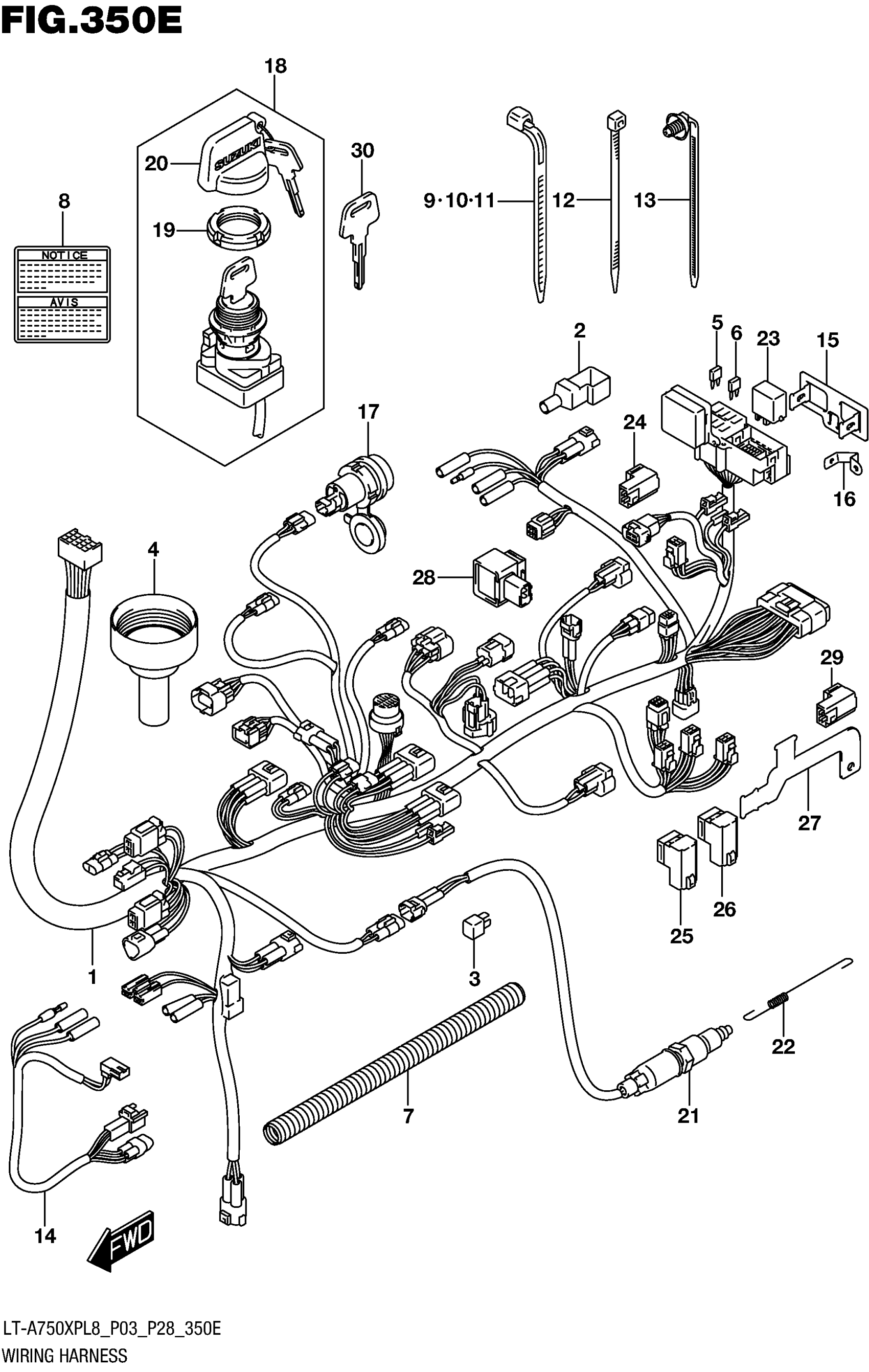

Suzuki LT-A750XP (AXI, RED/GREEN) (2018) WIRING HARNESS (LT-A750XPBL8 P28) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-31GR0.

36610-31GR1

$653.13

2

.COVER, CONNECTOR

36618-31G10

$9.30

3

.RECTIFIER ASSY

32800-16A00

$23.07

4

.COVER, SPEED

36618-31G00

Unavailable

5

.FUSE (10A)

09481-10501

$2.06

6

.FUSE (15A)

09481-15501

$2.02

7

GUIDE, WIRING HARNESS

36619-31G00

$18.08

8

LABEL, POWER SOURCE TERMINAL

38852-03G20

Unavailable

9

CLAMP (L:95)

09407-11401

$2.63

10

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:190)

09407-19401

$3.05

12

CLAMP (L:145)

09407-14407

$3.57

13

CLAMP (L:154)

09407-17403

$4.91

14

WIRE, FRONT BRAKE SW LEAD

36855-31G00

$58.12

15

BRACKET,FUSE BOX

36744-38F00

$11.37

16

BRACKET, FUSE

36744-31G10

Unavailable

17

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$17.81

18

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

$82.20

19

.NUT,IGNITION SWITCH

37112-24500

$11.48

20

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

21

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

22

SPRING

09443-06080

$4.73

23

RELAY,NEUTRAL START

38730-09F00

$46.55

24

RELAY ASSY,FUEL | FOR FUEL PUMP This part replaces 38740-31G01.

38740-31G02

$38.13

25

RELAY ASSY,FUEL | FOR NEUTRAL START This part replaces 38740-31G01.

38740-31G02

$38.13

26

RELAY ASSY,FUEL | FOR DEF LOCK This part replaces 38740-31G01.

38740-31G02

$38.13

27

BRACKET, RELAY

38741-31G30

Unavailable

28

RELAY ASSY, DRIVE

38750-31G00

$119.65

29

RELAY ASSY This part replaces 38740-31G10.

38740-31G11

$27.46

30-1

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

30-2

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

30-3

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

30-4

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07
