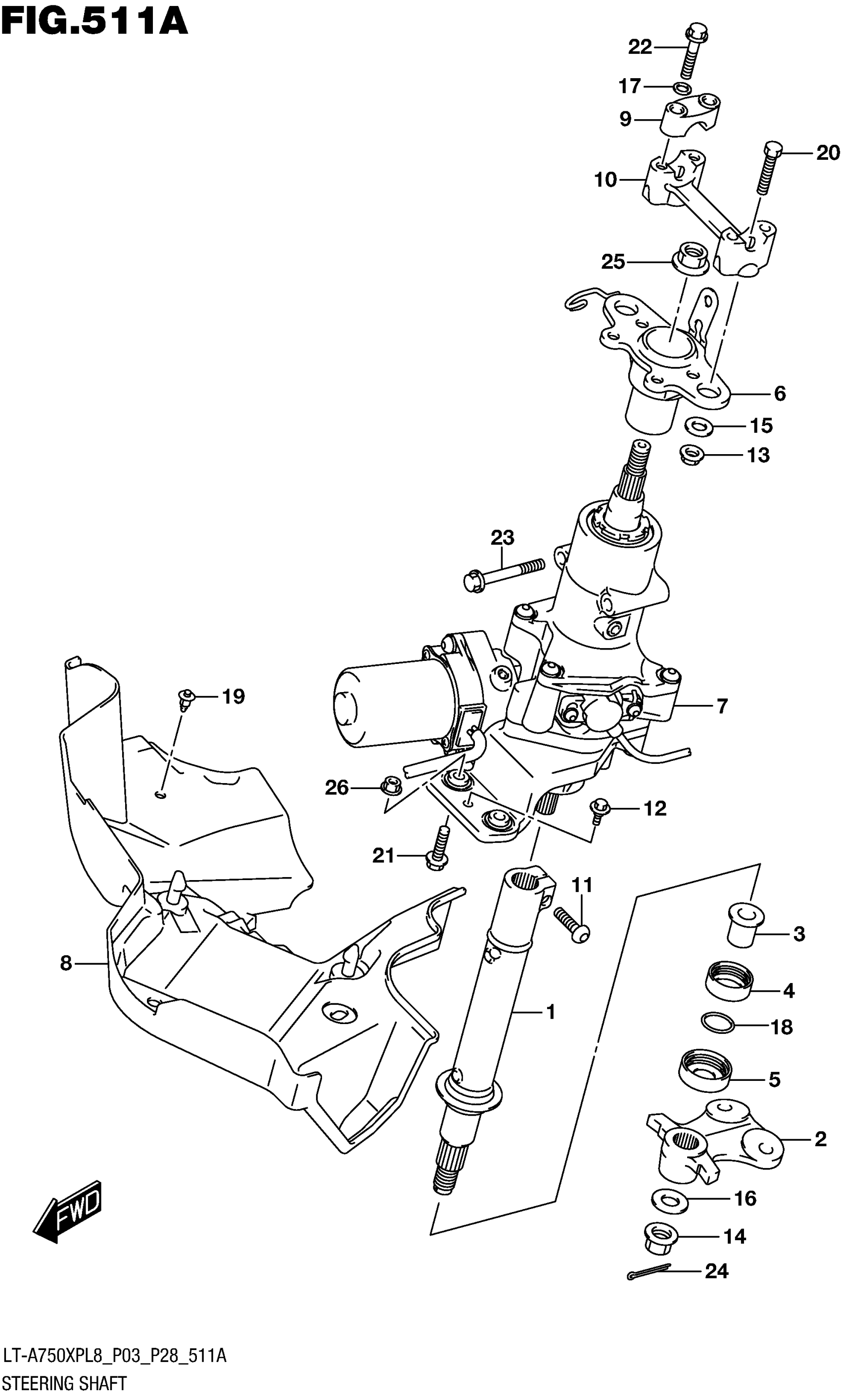

Suzuki LT-A750XP (AXI, RED/GREEN) (2018) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING

51650-31G40

$392.82

2

PLATE, STEERING ARM

51653-31G30

$137.80

3

BUSH, STEERING SHAFT LOWER

51661-31G00

$30.05

4

SEAL, DUST This part replaces 51662-31G00.

51662-31G01

$10.28

5

SEAL, DUST This part replaces 51663-31G10.

51663-31G11

$15.38

6

PLATE, STEERING SHAFT

51680-31G00

$180.70

7

BODY ASSY,STEER This part replaces 51700-31G15.

51700-31G18

$2,777.63

8

PLATE, EPS ECU

51771-31G00

$134.48

9

CLAMP, HANDLE HOLDER UPPER

56211-09F00-291

$29.37

9

(BLACK)

56211-09F00-291

$29.37

10

CLAMP, HANDLE HOLDER

56211-31G10

$43.17

11

BOLT (8X25)

09106-08129

$5.40

12

BOLT (6X12)

09111-06085

$4.54

13

NUT

09159-10115

$3.55

14

NUT

09159-14027

$13.67

15

WASHER (10.5X22X2.3)

09160-10039

$2.26

16

WASHER (14.5X30X3.2)

09160-14062

$2.81

17

WASHER

09164-08015

$3.21

18

O RING (D:2.4,ID:23.7)

09280-24010

$5.64

19

CLIP

09409-07333

$2.31

20

BOLT

01500-1035A

$3.72

21

BOLT

01550-0830A

$3.04

22

BOLT (8X35)

01550-0835A

$3.04

23

BOLT

01550-0875A

$3.55

24

PIN

04111-2020A

$1.49

25

NUT

08316-1014A

$2.35

26

NUT

08319-3108A

$2.32
