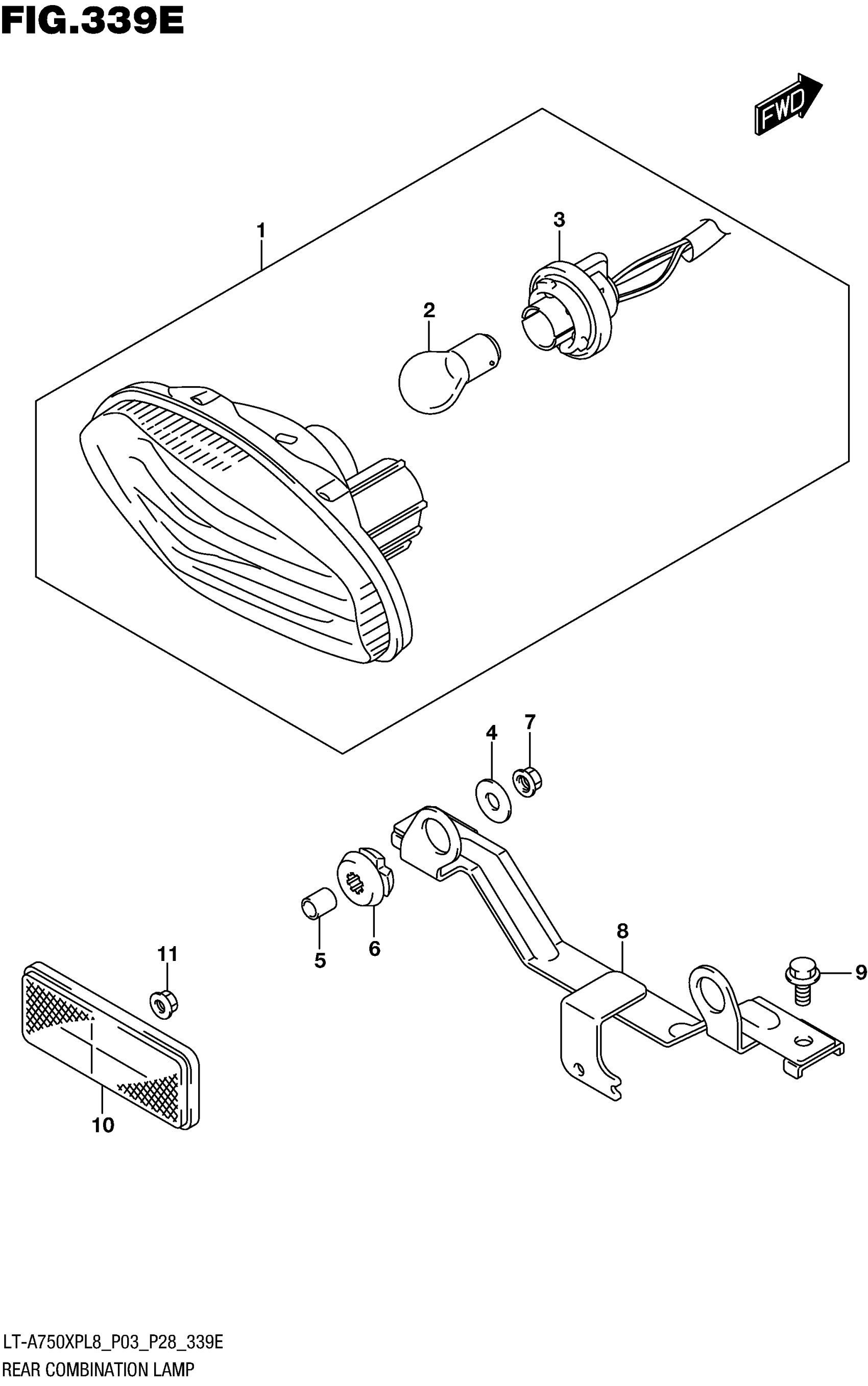

Suzuki LT-A750XP (AXI, RED/GREEN) (2018) REAR COMBINATION LAMP (LT-A750XPBL8 P28) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-31G00

$82.87

2

.BULB (12V21/5W, BF141-49642A

09471-12128

$6.73

3

.SOCKET & CORD

35718-03G30

$26.34

4

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

5

SPACER (6.5X9X10.5)

09180-06264

$2.23

6

CUSHION

09320-09018

$2.44

7

NUT

08316-1006A

$2.19

8

BRACKET, REAR COMBINATION LAM

35726-31G10

$28.27

9

BOLT

01550-0612A

$1.97

10

REFLECTOR ASSY, REAR

35970-07F01

$20.88

11

NUT

08316-1005B

$2.50
