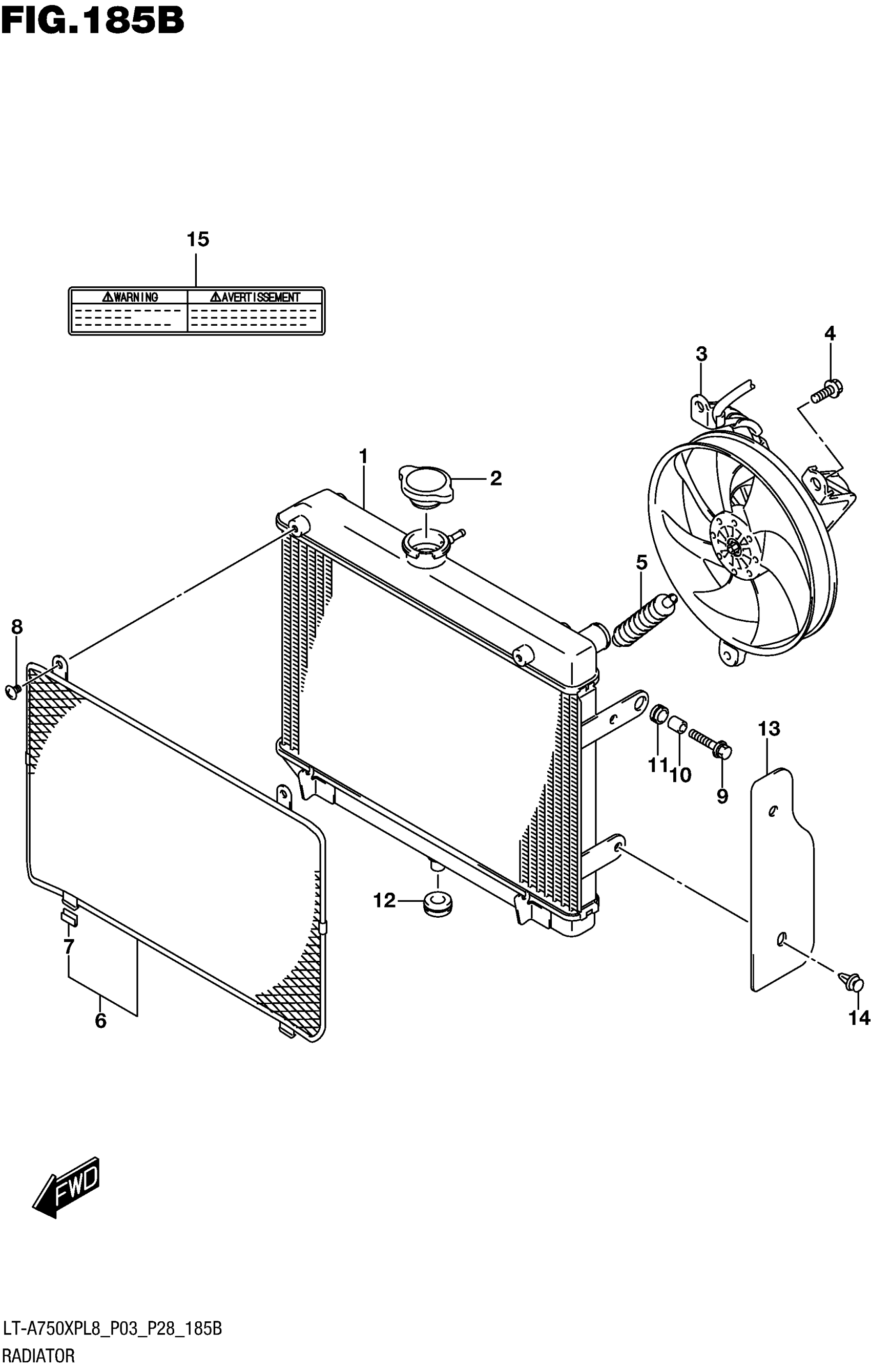

Suzuki LT-A750XP (AXI, RED/GREEN) (2018) RADIATOR (LT-A750XPL8 P28) Diagram

#

Description
Price

1

RADIATOR ASSY

17710-31G30

$217.04

2

CAP ASSY, RADIATOR

17730-14G00

$42.83

3

FAN ASSY, RADIATOR

17800-31G20

$239.19

4

BOLT

01550-0610A

$1.97

5

.BOOT,RDTR FAN MOTOR

17820-07G10

$7.48

6

COVER, RADIATOR This part replaces 17760-09F00.

17760-09F01

$61.90

7

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.92

8

SCREW

02142-0608A

$1.49

9

BOLT (6X25)

09118-06097

$2.50

10

SPACER (6.5X10X12)

09180-06290

$2.35

11

CUSHION

09320-10042

$3.12

12

CUSHION

09320-12036

$2.38

13

GUARD, RADIATOR FAN

17811-31G00

$53.08

14

CLIP

09409-07333

$2.31

15

LABEL, COOLING FAN This part replaces 17991-02F40.

17991-02F41

$4.64
