2018 Suzuki LT-A750XP (AXI, Red/green) Optional Diagram

← All diagrams

Find the part on the Optional diagram for your 2018 Suzuki LT-A750XP (AXI, Red/green), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

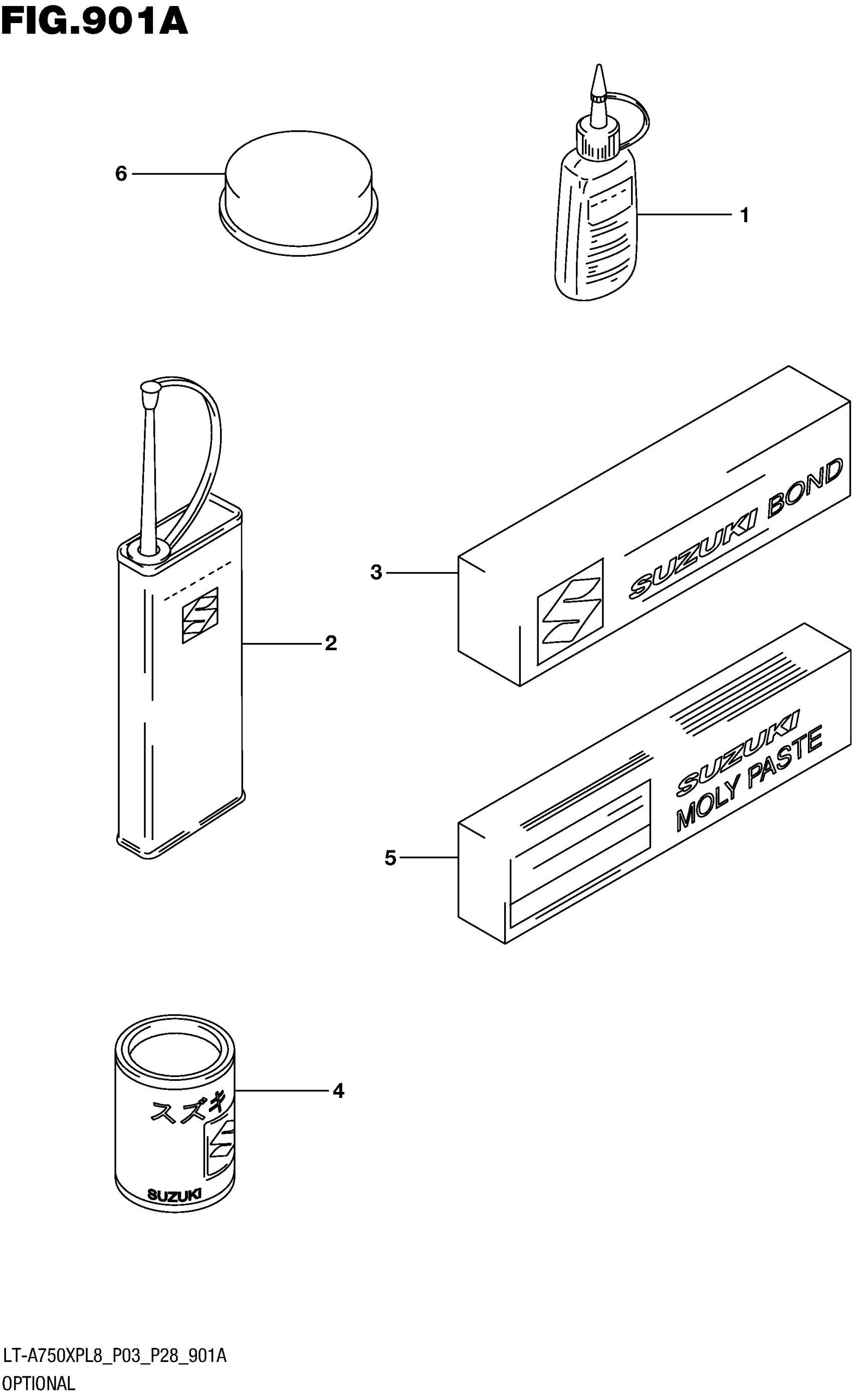

2018 Suzuki LT-A750XP (AXI, Red/green) Optional Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

ECSTAR TLOCK 13 | 50G This part replaces 99000-32030.

990A0-06E03-10C

1
Out of stock

1-2

ECSTAR TLOCK 13 | 50G This part replaces 99000-32050.

990A0-06E42-10C

1
Out of stock

1-3

THREAD LOCK, SUPER (1305) | 50G

99000-32100

1
Out of stock

1-4

ECSTAR TLOCK 13 | 50G This part replaces 99000-32020.

990A0-06E33-10C

1
Out of stock

1-5

ECSTAR TLOCK 13 | 50G This part replaces 99000-32130.

990A0-06E60-10C

1
Out of stock

2

THREAD LOCK CEMENT | 200G

99000-32040

1
Out of stock

3-1

ECSTAR S.GASKT | 100G This part replaces 99000-31140.

990A0-06E70-03Z

1
Out of stock

3-2

ECSTAR S.GASKT | 100G This part replaces 99000-31110.

990A0-06E70-03Z

1
Out of stock

4

ECSTAR SPR GREA | 150G This part replaces 99000-25030.

99000-25490

1
Out of stock

5

SUZUKI MOLY PASTE | 50G

99000-25140

1
Out of stock

6

SUZUKI PBC GREASE | 20G

99000-25110

1
Out of stock
