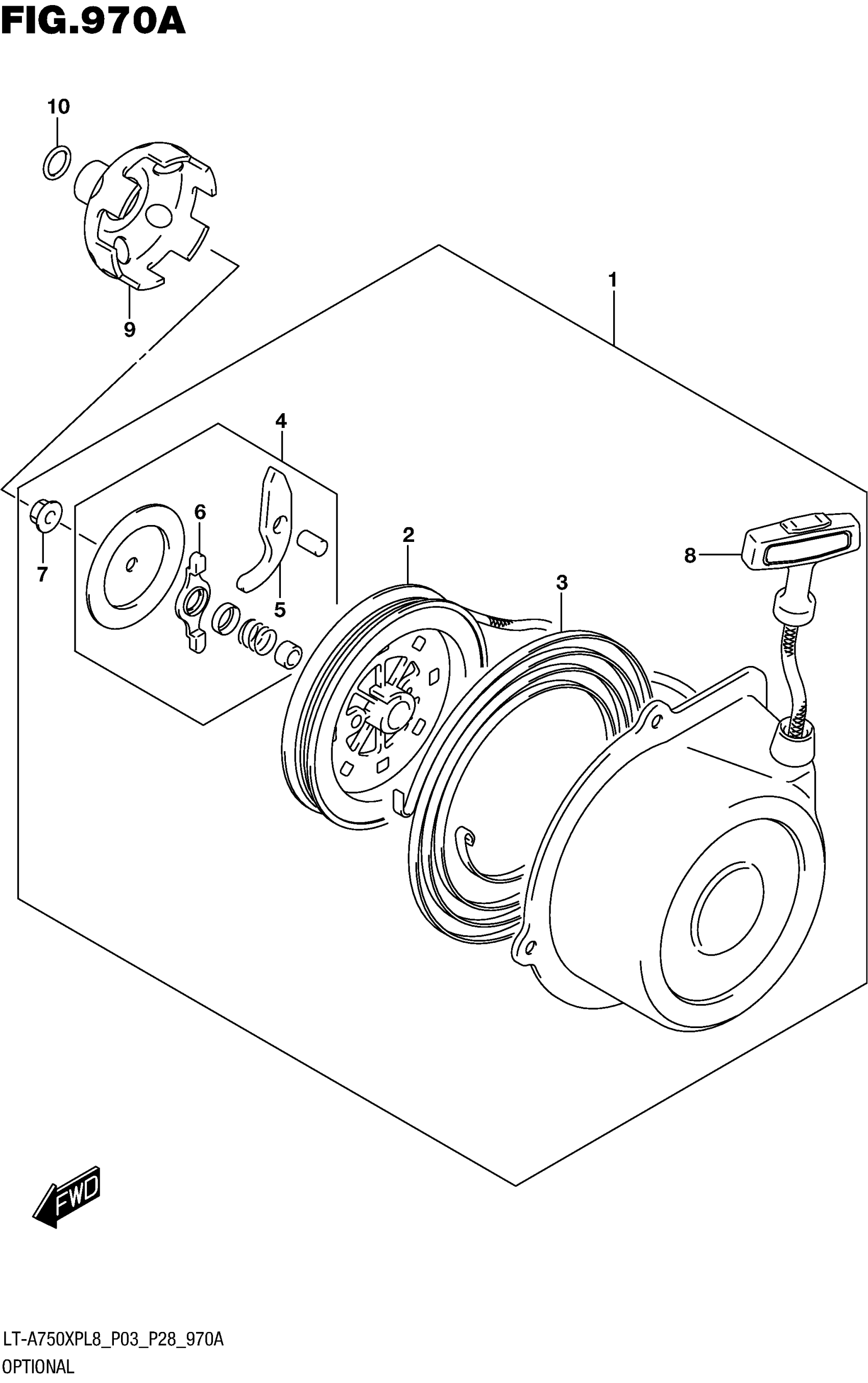

Suzuki LT-A750XP (AXI, RED/GREEN) (2018) OPTIONAL (RECOIL STARTER) Diagram

#

Description
Price

1

STARTER ASSY,RECOIL

18100-24503

$218.68

2

.REEL

18120-24500

$53.48

3

.SPRING,SPIRAL

18142-24400

$28.31

4

.RATCHET SET

18130-24400

$22.50

5

..RATCHET

18131-24411

$9.17

6

..GUIDE,RATCHET

18132-24400

$2.80

7

.NUT

08316-1006A

$2.25

8

.ROPE ASSY

18200-24501

$37.52

9

CUP,STARTER

18410-09F02

$86.98

10

O RING (D:1.9,ID:12.6) This part replaces 09280-13007.

09280-12009

$2.95
