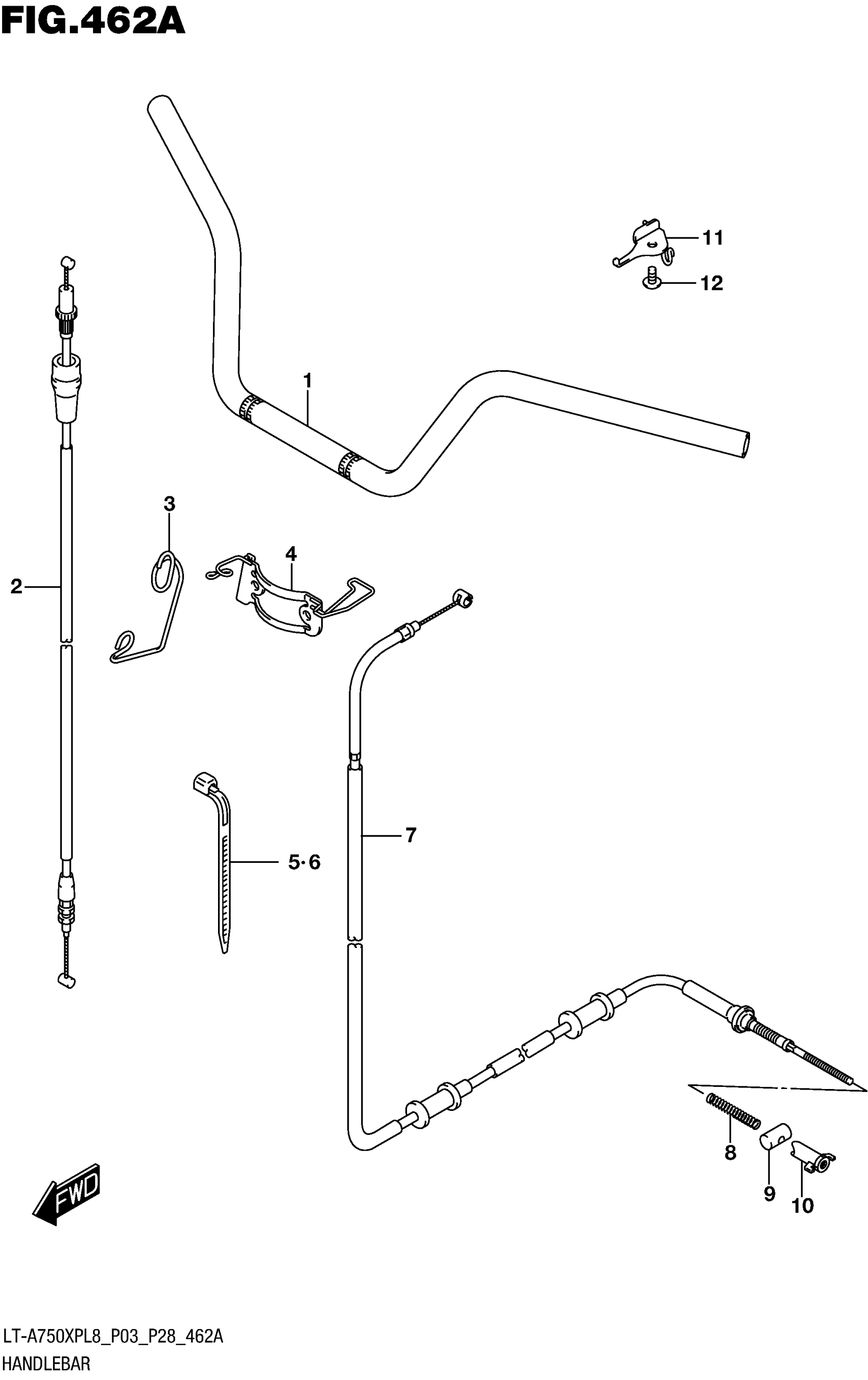

Suzuki LT-A750XP (AXI, RED/GREEN) (2018) HANDLEBAR Diagram

Description

Price

HANDLEBAR This part replaces 56111-31G20.

56111-31G40

$99.17

CABLE ASSY, THROTTLE This part replaces 58300-31G20.

58300-31G21

$33.62

GUIDE, THROTTLE CABLE

58626-31G20

$9.82

GUIDE, CABLE

58620-31G20

Unavailable

CLAMP (L:165)

09407-18402

$2.19

CLAMP (L:125)

09407-14403

$2.26

CABLE,PARKING B This part replaces 58810-31G30.

58810-31G31

$59.23

SPRING

09440-08042

$2.92

09209-13006

$5.24

NUT

09150-06015

$3.56

GUIDE, PARKING CABLE

58620-31G10

$15.80

SCREW

03541-0616B

$2.59
