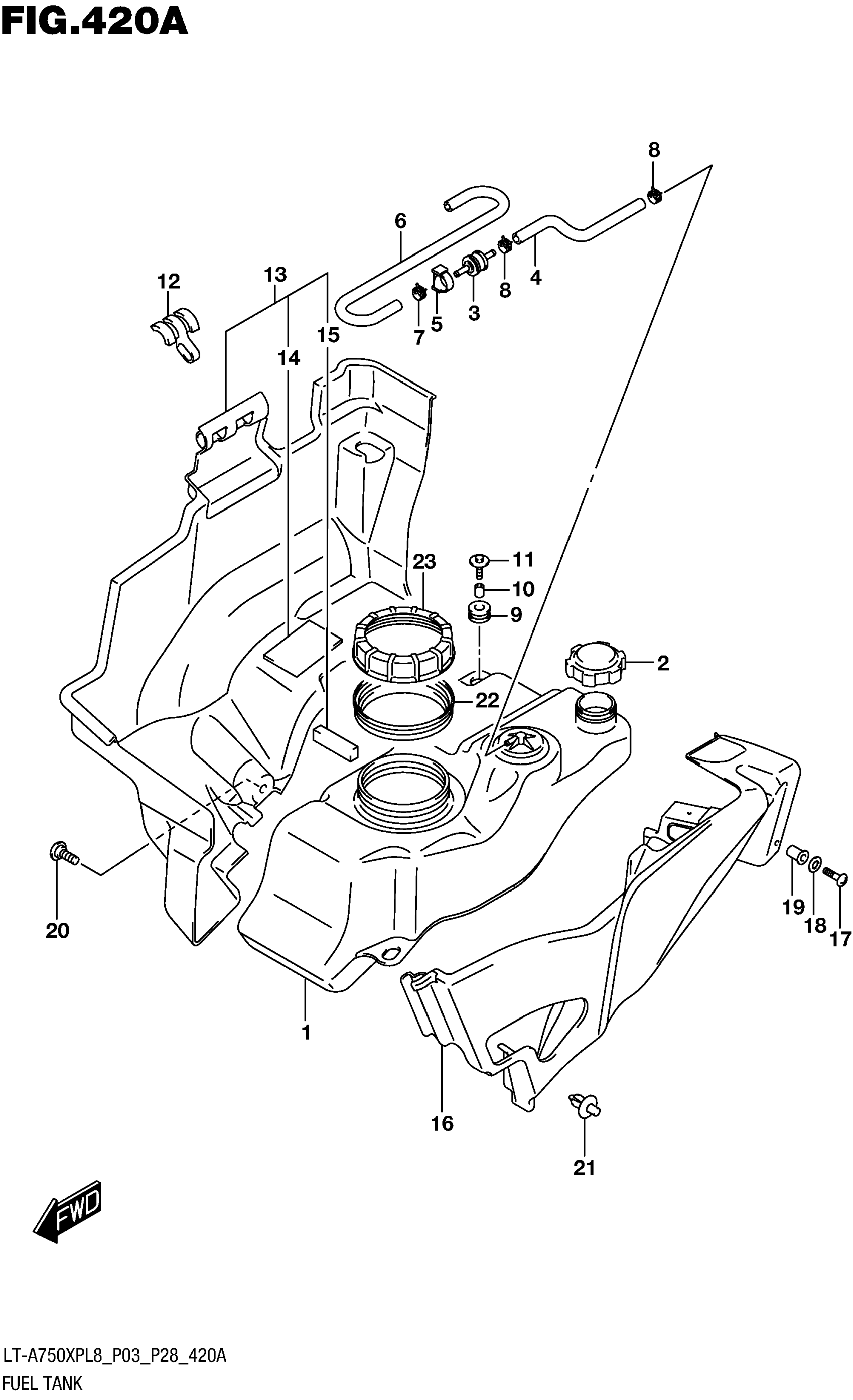

Suzuki LT-A750XP (AXI, RED/GREEN) (2018) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-31G21

$331.32

2

CAP ASSY, FUEL TANK

44200-31G00

$52.35

3

VALVE,2 WAY CHECK

85451-75100

$46.78

4

HOSE,CHECK VALV This part replaces 44425-31G00.

44425-31G01

$12.07

5

CUSHION, CHECK VALVE This part replaces 44881-31G00.

44881-31G01

$4.74

6

HOSE, TANK BREATHER

44434-31G11

$45.15

7

CLIP

09401-08409

$1.93

8

CLIP (ID:9.4,H:8)

09401-09403

$2.03

9

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

10

SPACER (6.5X10X14)

09180-06293

$2.58

11

BOLT (6X30)

09116-06050

$2.26

12

CUSHION, SIDE

44541-31G00

Unavailable

13

COVER,F/TANK LO This part replaces 44390-31G50.

44390-31G60

$93.80

14

.CUSHION, COVER NO.1

44542-10G00

Unavailable

15

.CUSHION, COVER NO.2

53146-05G00

$7.27

16

COVER, OUTER

44391-31G00

$103.03

17

SCREW

02142-0520B

$1.78

18

WASHER (5.5X20X1.4)

09160-05046

$1.92

19

NUT

09159-05019

$7.14

20

SCREW (6X16)

09139-06137

$2.61

21

CLIP

09409-07333

$2.31

22

GASKET, FUEL PUMP

44596-26J00

$33.32

23

RETAINER, FUEL PUMP

44597-26J00

$30.08
