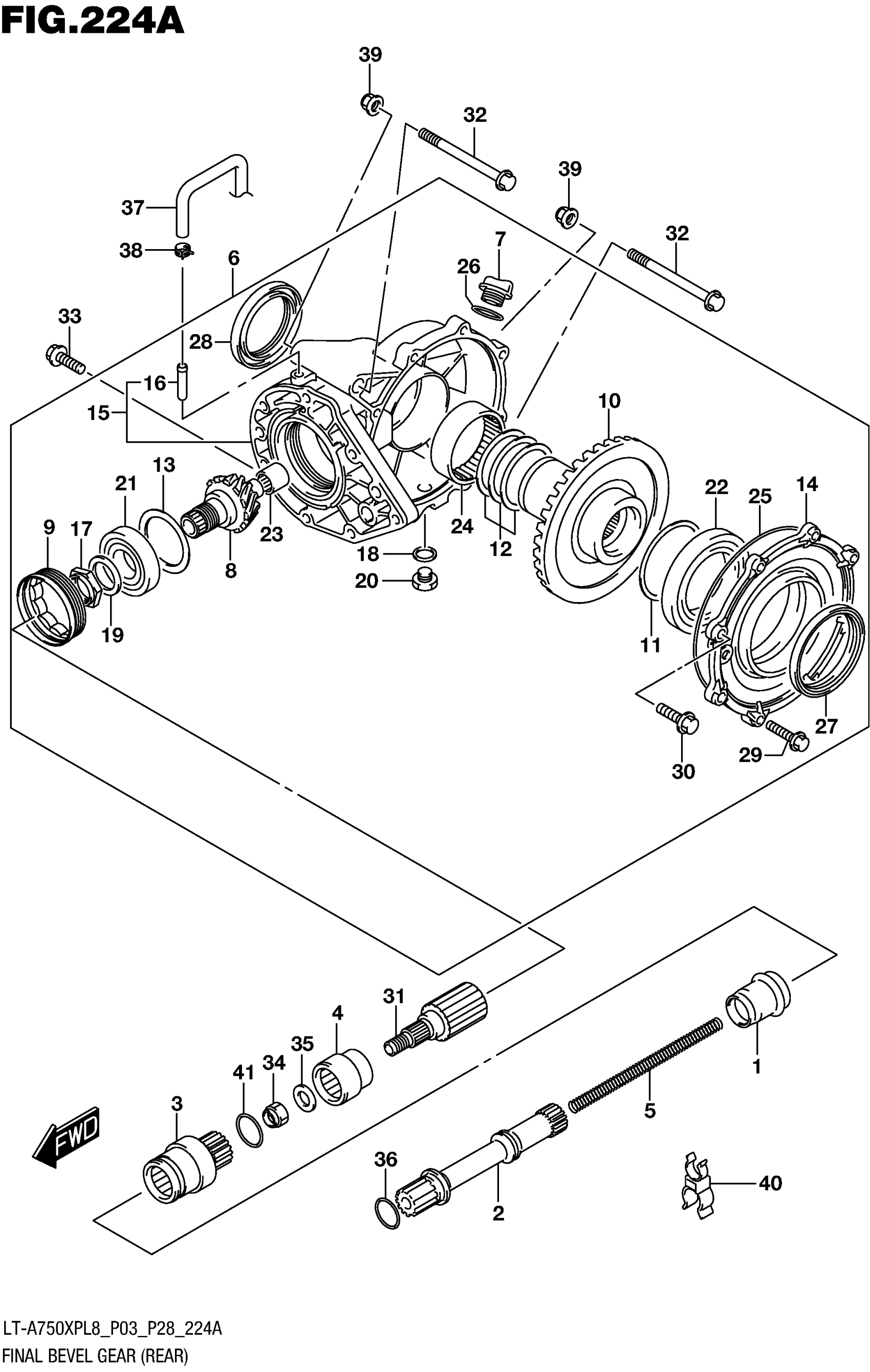

Suzuki LT-A750XP (AXI, RED/GREEN) (2018) FINAL BEVEL GEAR (REAR) Diagram

#

Description
Price

1

BOOT,JOINT SHAFT This part replaces 27153-31G40.

27153-31G42

$9.22

2

SHAFT, REAR PROPELLER

27155-31G30

$95.32

3

JOINT, REAR PROPELLER SHAFT

27157-31G60

$57.88

4

COUPLING, REAR OUTPUT SHAFT

27171-31G60

$122.23

5

SPRING,REAR PROPELLER SHAFT

27192-31G10

$5.98

6

CASE ASSY, REAR FINAL GEAR

27410-31G50

$1,457.92

7

.PLUG

09259-20008-XC0

$7.50

8

.GEAR, RR FINAL DRIVE BEVEL

27311-31G50

$293.05

8

(NT:10)

27311-31G50

$293.05

9

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$52.73

10

.GEAR, RR FINAL DRIVEN (NT:36

27320-31G00

$321.27

11

.SHIM SET | T:0.30/0.35/0.40/0.5

27326-31810

$41.88

12

.SHIM SET | T:0.30/0.35/0.40/0.5

27327-31810

$38.95

13

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.5

27445-24810

$28.18

14

.CASE, REAR FINAL GEAR LH

27451-31G10

Unavailable

15

.CASE, REAR FINAL GEAR RH

27460-31G10

Unavailable

16

..UNION

09364-08016

Unavailable

17

.NUT

09140-28006

$18.03

18

.GASKET (13.8X18.8X4.8)

09168-14002

$2.26

19

.SHIM (28X38X1)

09181-28195

$4.77

20

.PLUG | OIL DRAIN

09247-14013

$2.30

21

.BEARING (28X68X18)

09262-28023

$127.87

22

.BEARING (65X100X11)

09262-65001

$140.28

23

BEARING (20X34X18)

09263-20062

$46.98

24

.BEARING (55X67X20)

09263-55003

$108.12

25

.O RING (D:2.45,ID:156)

09280-00046

$23.58

26

.O RING (D:3.1,ID:16.8)

09280-17003

$1.65

27

.OIL SEAL (59X88X8)

09283-59001

$26.80

28

.OIL SEAL (59X88X8)

09283-59001

$26.80

29

BOLT (8X35)

09103-08357

$4.17

30

.BOLT (10X45)

09103-10294

Unavailable

31

SHAFT, RR FINAL DRIVE GEAR

27594-31G80

$195.10

32

BOLT (10X110)

09103-10148

$6.94

33

BOLT (10X30)

09103-10405

$3.87

34

NUT

09159-16003

$4.00

35

WASHER (16X30X3)

09160-16026

$5.00

36

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.93

37

HOSE, BREATHER

27491-31G00

$43.27

38

CLIP

09401-10403

$1.65

39

NUT

09159-10115

$3.55

40

CLAMP

09408-00235

$2.80

41

O RING (D:3.1,ID:34.4)

09280-35008

$2.55
