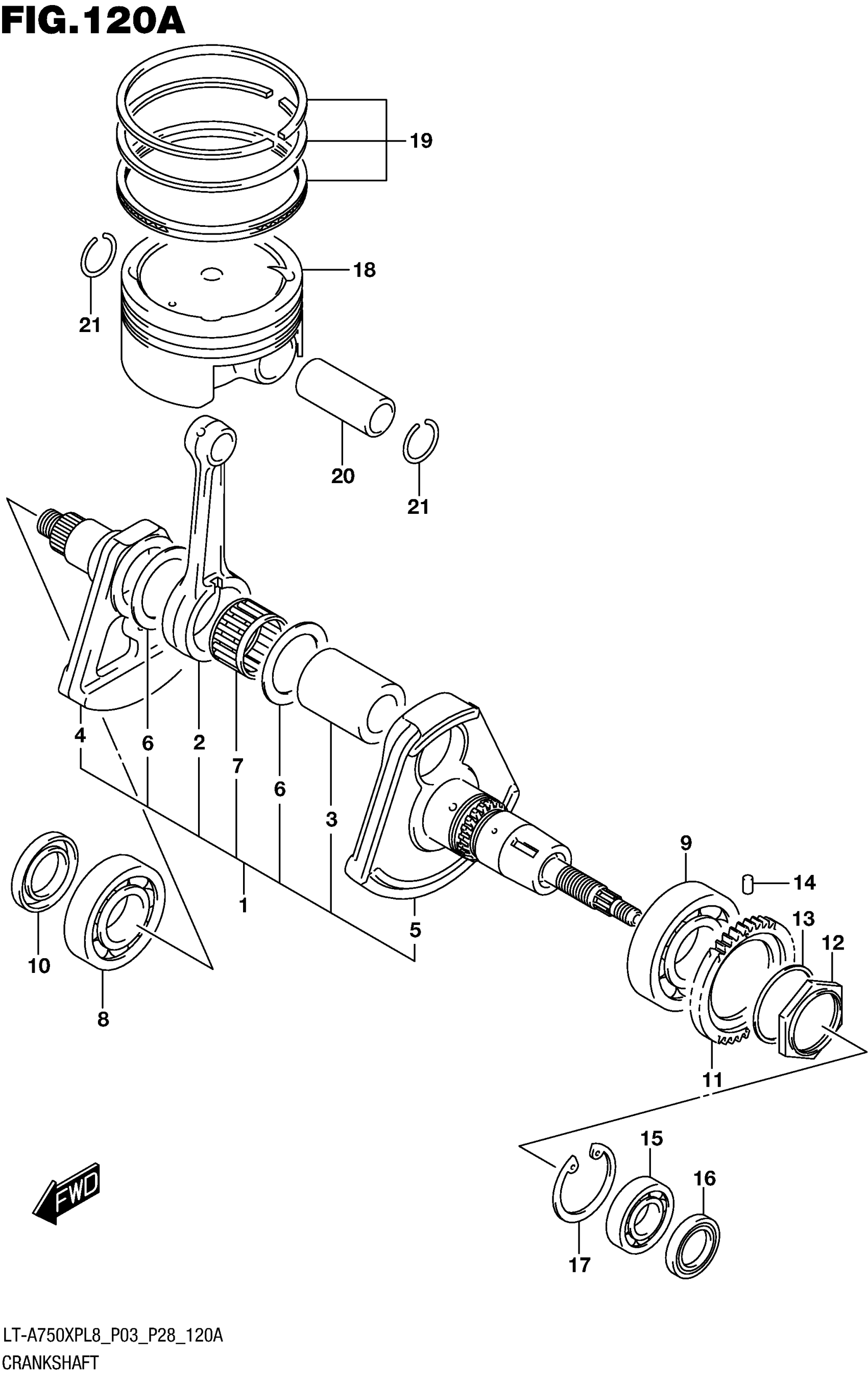

Suzuki LT-A750XP (AXI, RED/GREEN) (2018) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY This part replaces 12200-31G31.

12200-31G40

$606.13

2

.CONNROD

12161-31G01

$160.78

3

.PIN, CRANK

12210-31D00

$114.82

4

.CRANKSHAFT RH

12220-31G20

Unavailable

5

.CRANKSHAFT LH

12261-31G10

Unavailable

6

.WASHER (41X61X1)

09160-41002

$13.20

7

.BEARING This part replaces 09263-41008.

09263-41009

$100.93

8

BEARING

12223-31G02

$181.17

9

BEARING (45X85X19)

09262-45007

$104.57

10

OIL SEAL (34X52X6)

09282-34001

$36.72

11

GEAR, CRANK BALANCER DRIVE

12661-31G01

$151.97

11

(NT:43)

12661-31G01

$151.97

12

NUT, CRANK BALANCER DRIVE GEA

12664-31G00

$24.03

13

WASHER (45X60X1.2)

09160-45006

$6.47

14

PIN (5X8)

09261-05005

$1.49

15

BEARING (25X47X8)

09262-25006

$25.54

16

OIL SEAL (25X42X6)

09283-25095

$26.72

17

CIRCLIP

08331-41479

$2.31

18

PISTON (YELLOW)

12111-31G50-0F0

$250.92

19

RING SET,PISTON

12140-31G50

$100.13

20

PIN, PISTON

12151-31G10

$26.58

21

CIRCLIP

09381-23003

$1.49
