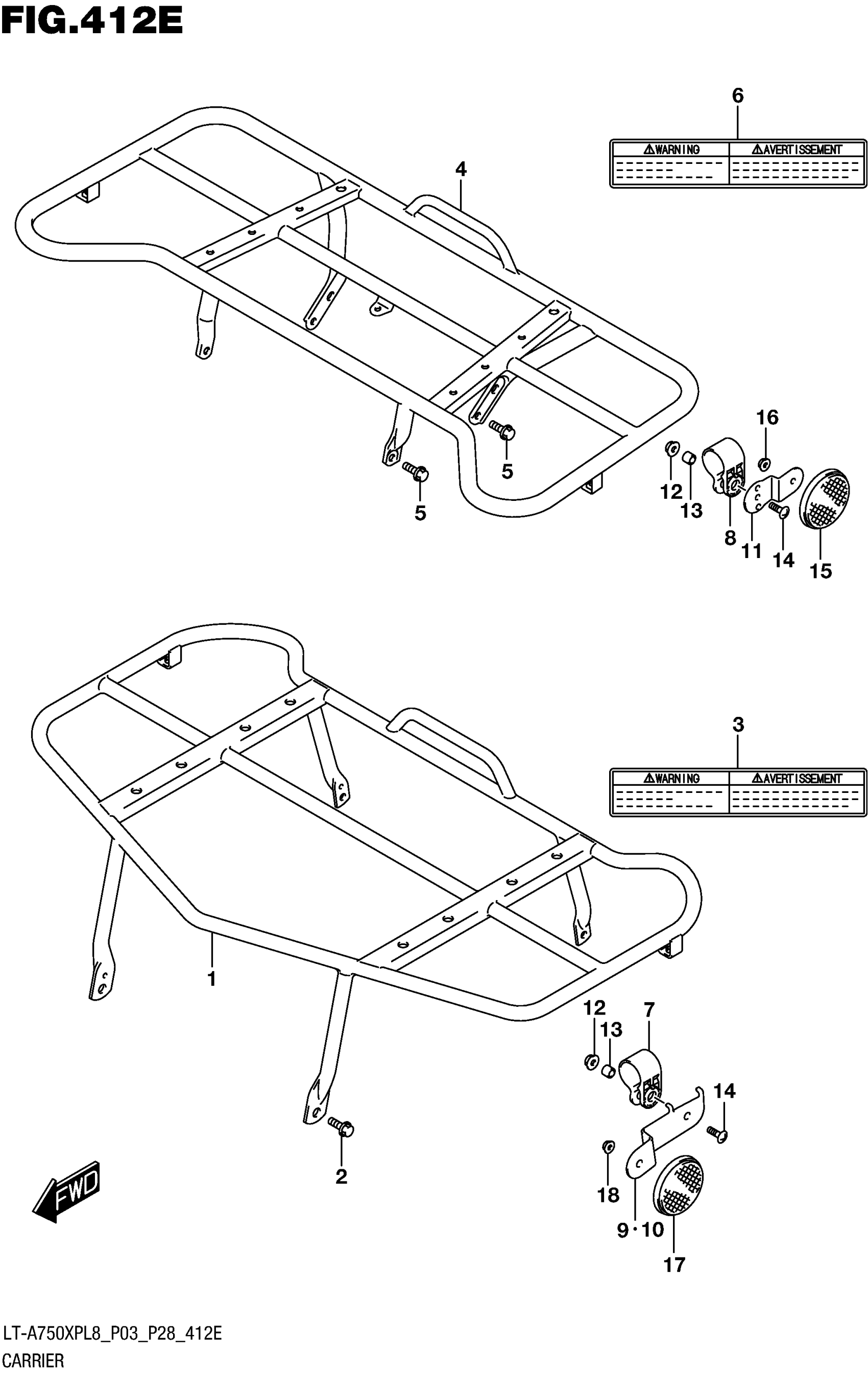

Suzuki LT-A750XP (AXI, RED/GREEN) (2018) CARRIER (LT-A750XPBL8 P28) Diagram

CARRIER, FRONT (BLACK)

46410-31G20-YSN

$297.40

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

LABEL, FRONT CARRIER

68385-31G00

Unavailable

CARRIER, REAR (BLACK)

46310-31GD0-YSN

$273.95

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

LABEL, REAR CARRIER

68385-31G10

Unavailable

BRACKET, FRONT SIDE RR

35656-03G00

Unavailable

BRACKET, REAR SIDE RR

35656-03G10

Unavailable

PLATE, FRONT SIDE RR BKT RH

47411-31G00

$47.52

PLATE, FRONT SIDE RR BKT LH

47412-31G00

$47.52

PLATE, REAR SIDE RR BKT

47413-31G00

$47.52

NUT

09159-05049

$2.30

SPACER (5.5X9.5X6.5)

09180-05053

Unavailable

SCREW

02142-0516A

$1.49

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

NUT

08316-1005B

$2.50

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

NUT

08316-1005B

$2.50
