Description

Price

1

FENDER, REAR (RED) This part replaces 63111-31G01-YT9.

63111-31G03-YT9

$544.78

1

FENDER, REAR (GREEN) This part replaces 63111-31G01-YLG.

63111-31G03-YLG

$531.38

1

FENDER,REAR (CA | E28 This part replaces 63111-31GC1-YKL.

63111-31GC3-YKL

Unavailable

1

FENDER,REAR This part replaces 63111-31GC1-YVA.

63111-31GC3-YVA

$680.73

1

FENDER, REAR (BLACK) This part replaces 63111-31G01-YLZ.

63111-31G03-YLZ

$529.80

1

FENDER,REAR This part replaces 63111-31G01-30H.

63111-31G03-30H

$365.92

1

NO DESCRIPTION AVAILABLE | LT-A750XPZ This part replaces 63111-31G20-YUW.

63111-31G21-YUW

Unavailable

2

BOLT, SIDE

01550-0625A

$1.97

3

SPACER

09169-06074

$7.95

4

CUSHION (11.5X32X12.2)

09320-11021

$4.17

5

COVER,REAR This part replaces 63251-31G00.

63251-31G01

$18.55

6

CLIP

09409-07333

$2.31

7

SCREW, REAR

02142-0520B

$1.78

8

NUT

09159-05019

$7.14

9

SHIELD, REAR FENDER This part replaces 63122-31G00.

63122-31G20

$26.92

10

SHIELD, REAR FENDER This part replaces 63123-31G00.

63123-31G20

$23.47

11

SHIELD, REAR FENDER This part replaces 63124-31G00.

63124-31G20

$17.32

12

SHIELD, REAR FENDER This part replaces 63128-31G00.

63128-31G20

$14.67

13

SHIELD, REAR FENDER This part replaces 63126-31G00.

63126-31G20

$12.98

14

SHIELD, REAR FENDER This part replaces 63127-31G00.

63127-31G20

$12.98

15

PLUG,RR BOX This part replaces 93115-03G00.

93115-03G01

$2.92

16

EMBLEM,RR FENDE This part replaces 68171-31G60-FRH.

68171-31GE1-JRH

$59.22

17

EMBLEM,"SUZUKI" This part replaces 68171-31G50-YPF.

68171-31GA1-1ZZ

$4.42

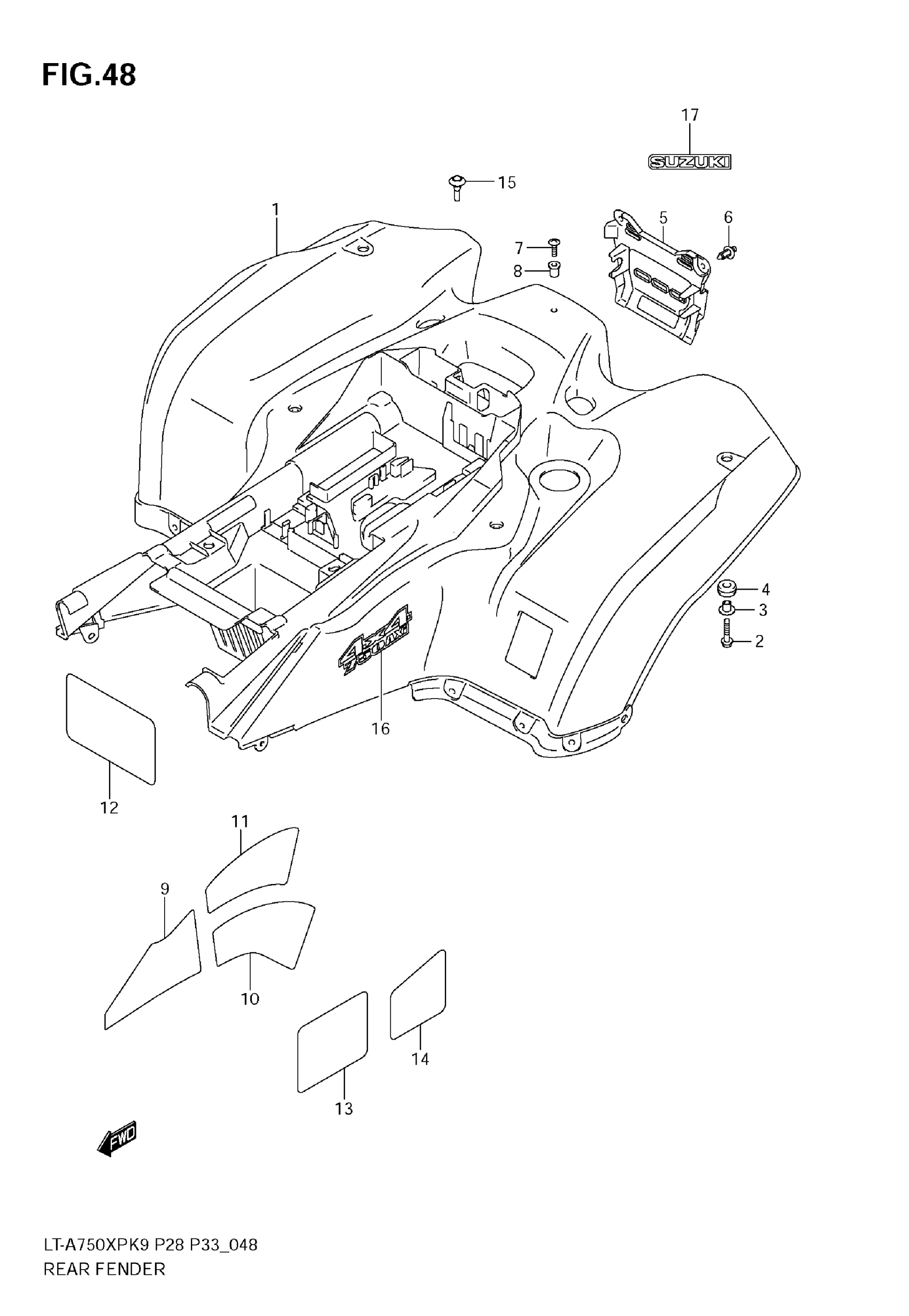

Suzuki LT-A750XP (2009) REAR FENDER Diagram
