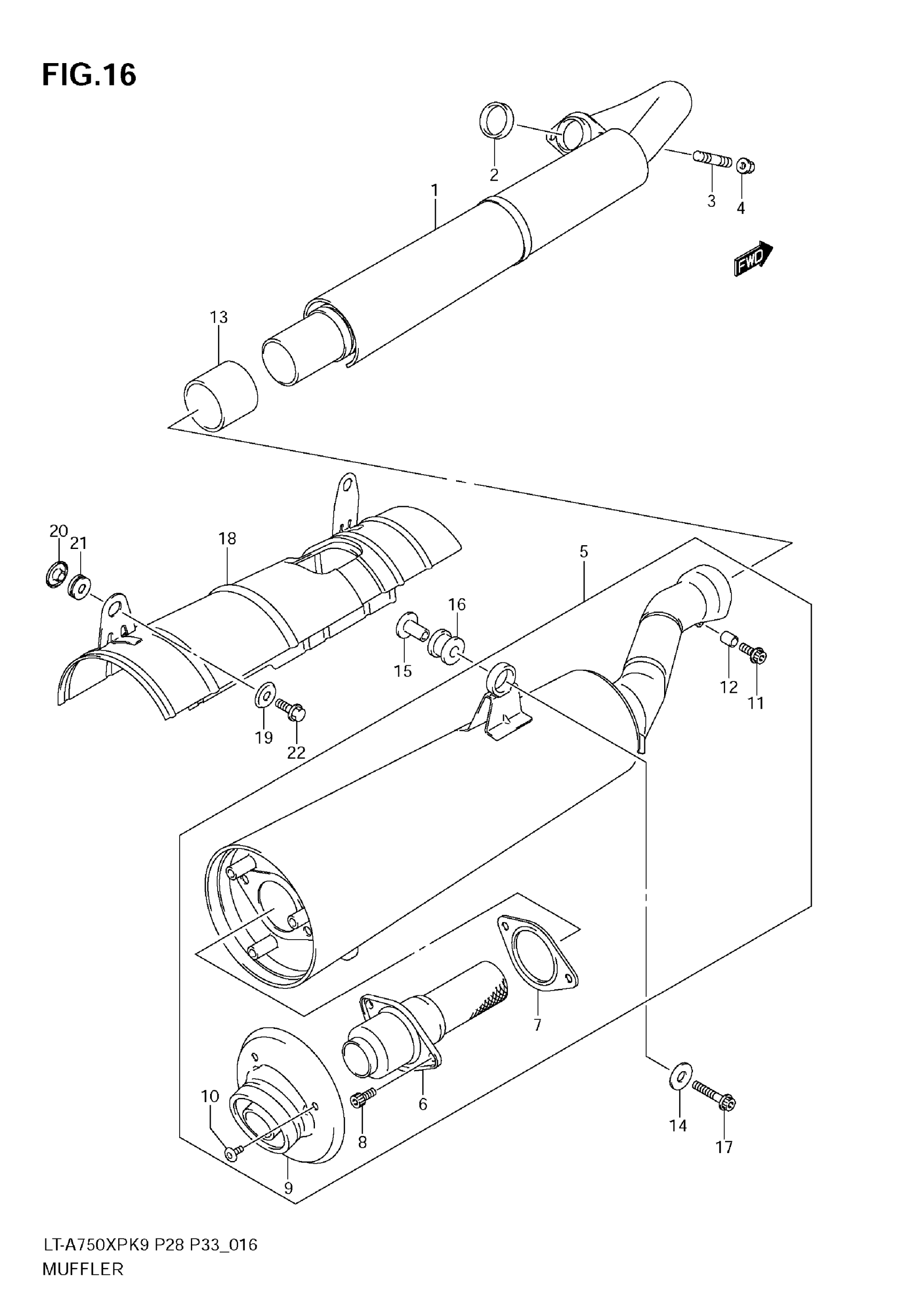

Suzuki LT-A750XP (2009) MUFFLER Diagram

#

Description
Price

1

PIPE ASSY, EXHAUST

14100-31G60

$318.77

2

GASKET, EXHAUST PIPE

14181-29E02

$16.39

3

BOLT, STUD

01421-0820B

$2.08

4

NUT

08319-3108A

$2.32

5

BODY, MUFFLER | Includes Item(s) 6 - 12

14310-31G60

$870.75

6

ARRESTER

14850-31G00

$82.20

7

GASKET

14773-31G02

$13.85

8

.BOLT

07130-0612B

$3.05

9

COVER, TAIL

14790-31G60

$108.97

10

SCREW

09139-06027

$2.16

11

BOLT

07120-0835B

$4.58

12

SPACER

14458-45G01

$6.92

13

CONNECTOR, MUFFLER JOINT

14771-45G00

$25.76

14

WASHER, 8.5X30X2.3

09160-08503

$2.50

15

SPACER, 8.6X12X24.2

09180-08152

$5.83

16

CUSHION, MUFFLER SPRT

09320-12071

$9.15

17

BOLT

07120-0840B

$3.82

18

COVER, MUF

14880-31G60

Unavailable

19

WASHER, MUFFLER COVER

14184-07G00

$1.98

20

SPACER, MUFFLER COVER

14185-07G00

$3.76

21

CUSHION

09320-08069

$8.37

22

BOLT

01550-0616A

$1.97
