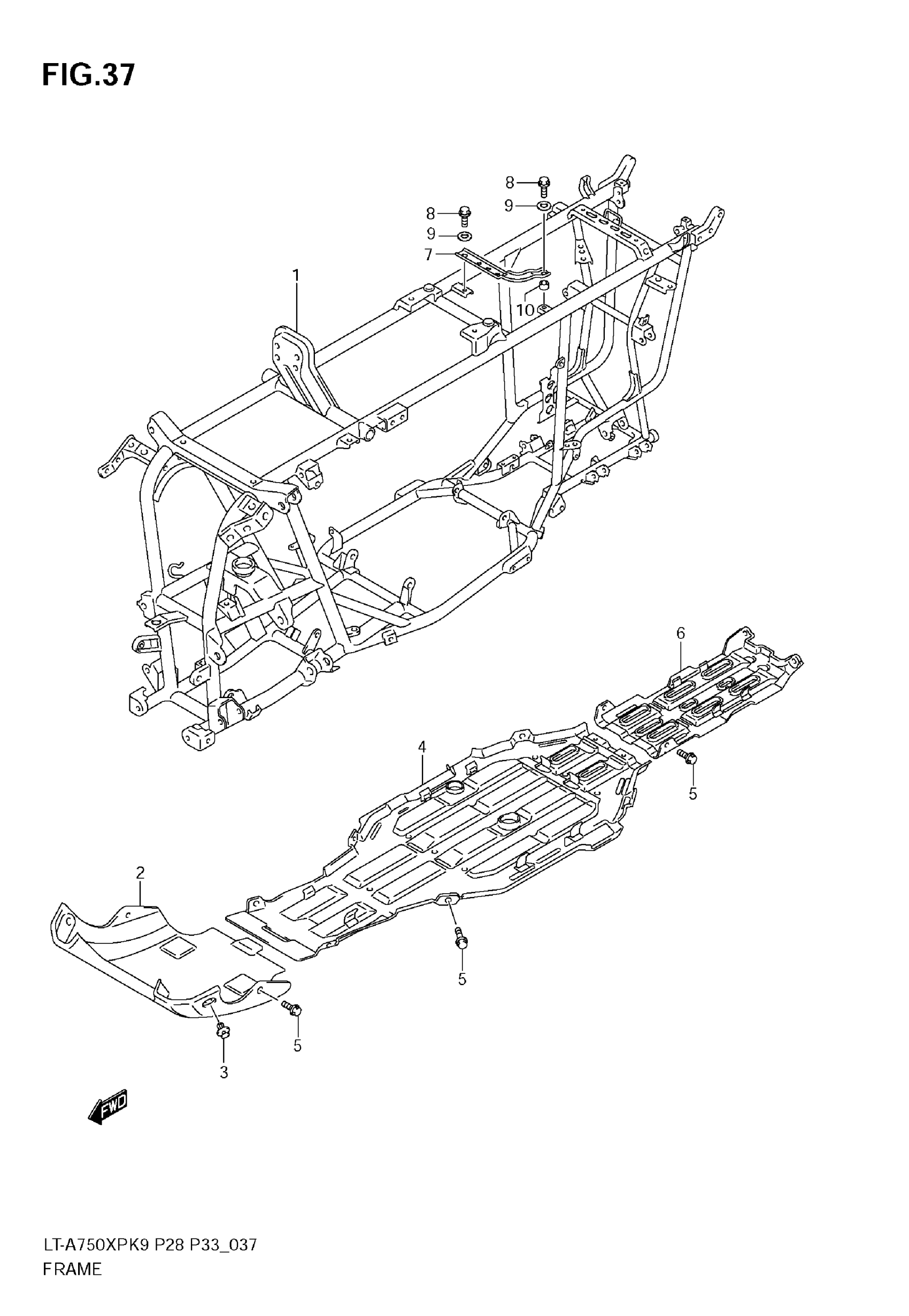

Suzuki LT-A750XP (2009) FRAME Diagram

#

Description

Price

1

FRAME,COMPLETE This part replaces 41100-31GB0-019.

41100-31GB3-019

$1,847.72

2

PROTECTOR, FRONT (BLACK)

42521-31G00-291

$62.85

3

CLIP

09409-08335

$2.47

4

PROTECTOR, ENGINE This part replaces 42511-31G02.

42511-31G04

$45.99

5

SCREW, PROTECTOR

09111-06085

$4.54

6

PROTECTOR, REAR

42531-31GB0

$56.72

7

PLATE, BATTERY This part replaces 41561-31GB0.

41561-31G01

$8.30

8

BOLT

09103-06283

$2.87

9

PLATE, BATTERY This part replaces 41562-31GB0.

41561-31G01

$8.30

10

WASHER, RH

09160-06109

$1.49
