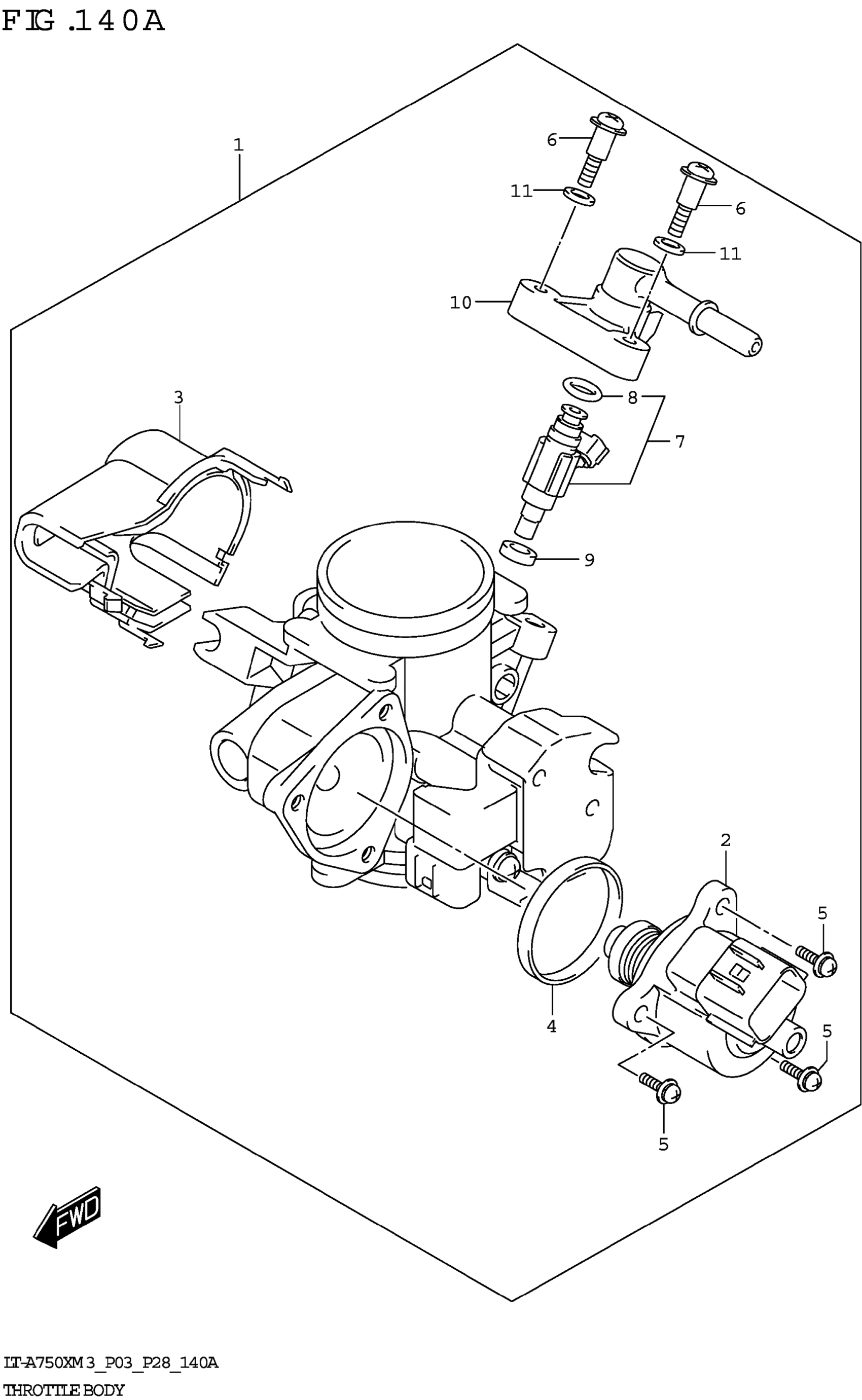

Suzuki LT-A750XM3 (2023) THROTTLE BODY (P03,P28) Diagram

#

Description
Price

1

BODY ASSY,THROTTLE

13400-34K02

$561.70

2

.MOTER, ISC STEPPING

13520-31G00

$205.44

3

.COVER

13578-31G00

$16.13

4

.GASKET

18139-82K00

$10.22

5

.SCREW

13601-13G00

$2.95

6

SCREW

13601-11J00

$4.79

7

.INJECTOR ASSY

15710-31G10

$252.98

8

..O RING

15717-31G00

$10.33

9

SEAL

15722-29G00

$10.93

10

.DELIVERY PIPE

15731-31G10

$205.73

11

PACKING

13602-29G01

$2.43
