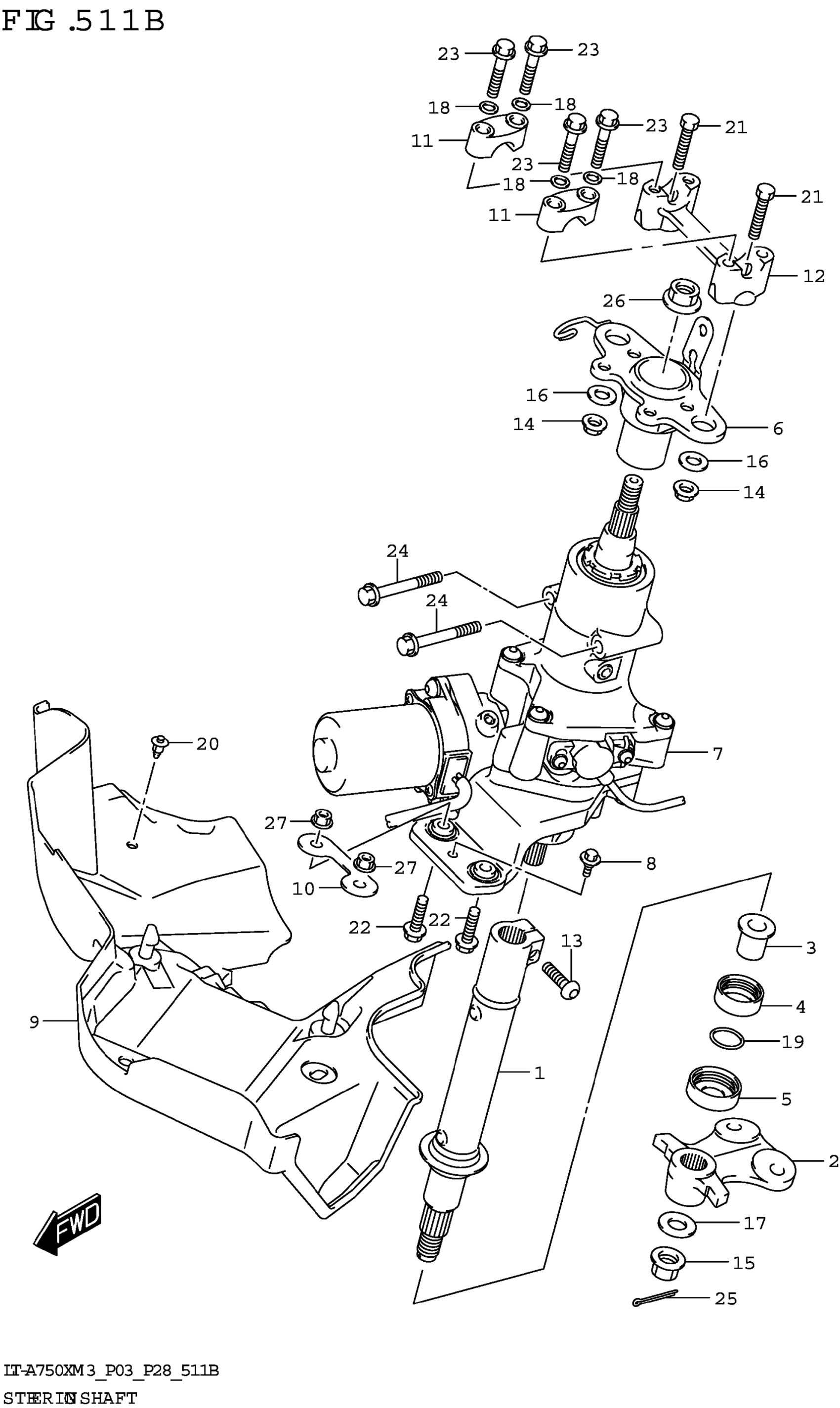

Suzuki LT-A750XM3 (2023) STEERING SHAFT (LT-A750XP) Diagram

#

Description
Price

1

SHAFT, STEERING

51650-34K10

$177.57

2

PLATE, STEERING ARM

51653-34K00

$94.48

3

BUSH, STEERING SHAFT LOWER | 30X32.2)

51661-31G00

$27.50

4

SEAL, DUST

51662-31G01

$9.41

5

SEAL, DUST

51663-31G11

$14.08

6

PLATE, STEERING SHAFT

51680-31G00

$202.97

7

BODY ASSY, STEERING EPS

51700-34K13

$2,631.87

8

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.16

9

PLATE, EPS ECU

51771-31G00

$151.78

10

PLATE, EPS MOUNT

51772-34K00

$4.05

11

CLAMP, HANDLE HOLDER UPPER

56211-09F10

$8.63

12

CLAMP, HANDLE HOLDER

56211-31G10

$48.73

13

BOLT (10X30)

09106-10087

$6.75

14

NUT (M10)

09159-10115

$3.21

15

NUT

09159-14027

$15.28

16

WASHER (10.5X22X2.3) | 3) This part replaces 09160-10060.

09160-10039

$2.24

17

WASHER (14.5X30X3.2)

09160-14062

$2.79

18

WASHER

09164-08015

$2.90

19

O RING

09280-24014

Unavailable

20

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

21

BOLT

01500-1035A

$4.03

22

BOLT

01550-0830A

$2.80

23

BOLT (8X35)

01550-0835A

$2.80

24

BOLT

01550-0875A

$3.25

25

PIN

04111-2020A

$1.22

26

NUT

08316-1014A

$2.57

27

NUT

08319-3108A

$2.31
