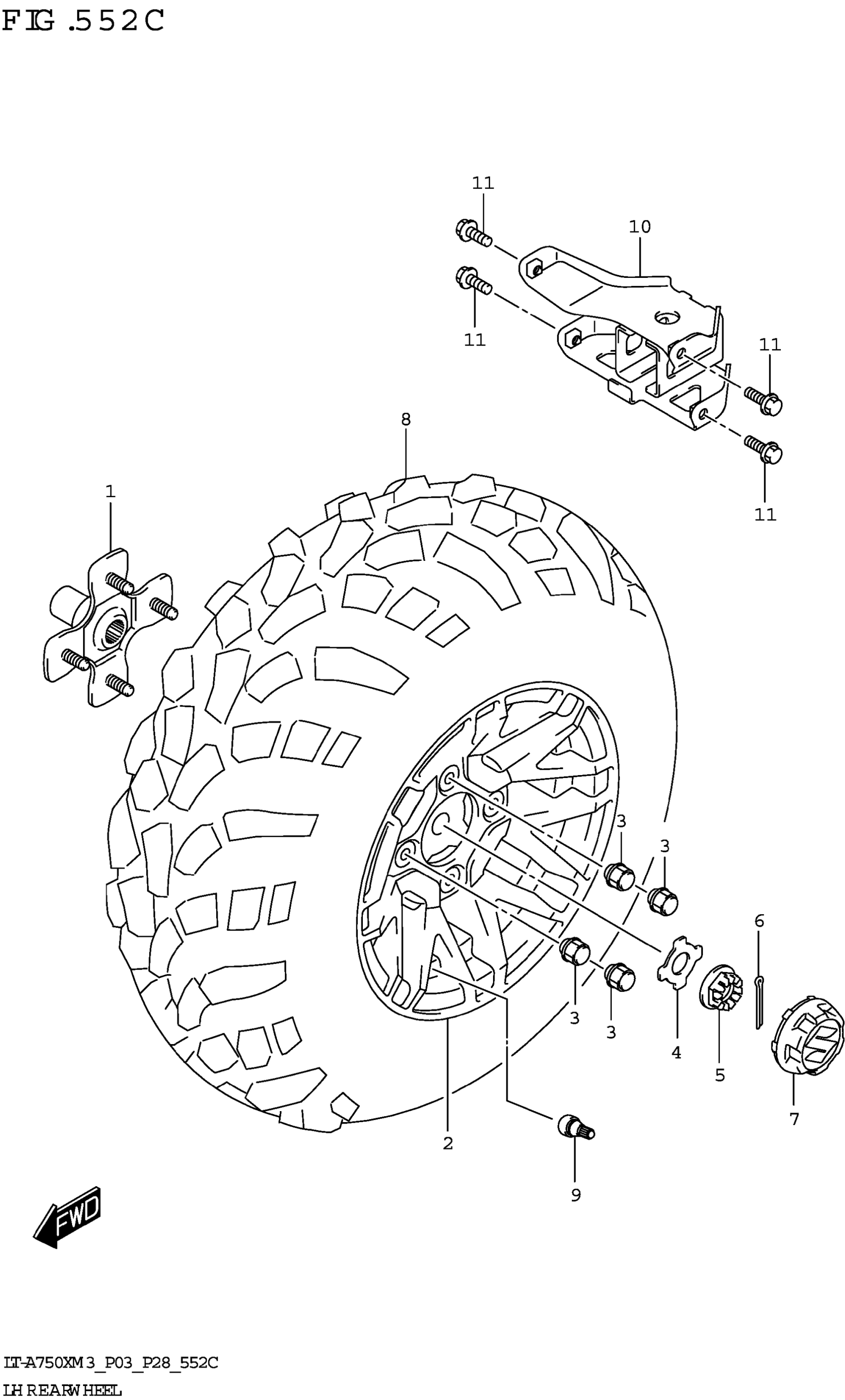

Suzuki LT-A750XM3 (2023) LH REAR WHEEL (LT-A750XPZ) Diagram

Description

Price

HUB, REAR WHEEL

64110-31G10

$247.50

2-1

REAR WHEEL-ALUM | BODY COLOR:YT9,YLG This part replaces 65311-34K00-291.

65311-34K00

$237.75

2-2

WHEEL,REAR | BODY COLOR:QTF,QTM This part replaces 65311-34K20-019.

65311-34K20

$299.80

NUT (H:23)

09159-10045

$5.88

WASHER, HUB

64723-03G00

$23.48

NUT

09141-20008

$17.00

04111-4035A

$1.37

7-1

CAP,WHEEL CENTER | BODY COLOR:YT9,YLG

54725-34K00

$11.37

7-2

CAP,WHEEL CENTER | BODY COLOR:QTF,QTM

54725-34K20

$30.69

TIRE,REAR (AT25X10-12)

65110-31G30

$326.70

VALVE ASSY,WHEEL RIM (TR412)

43130-24AD0

Unavailable

PLATE, TRAILER HITCH

95210-34K00

$126.73

BOLT (10X20)

09103-10394

$2.95
