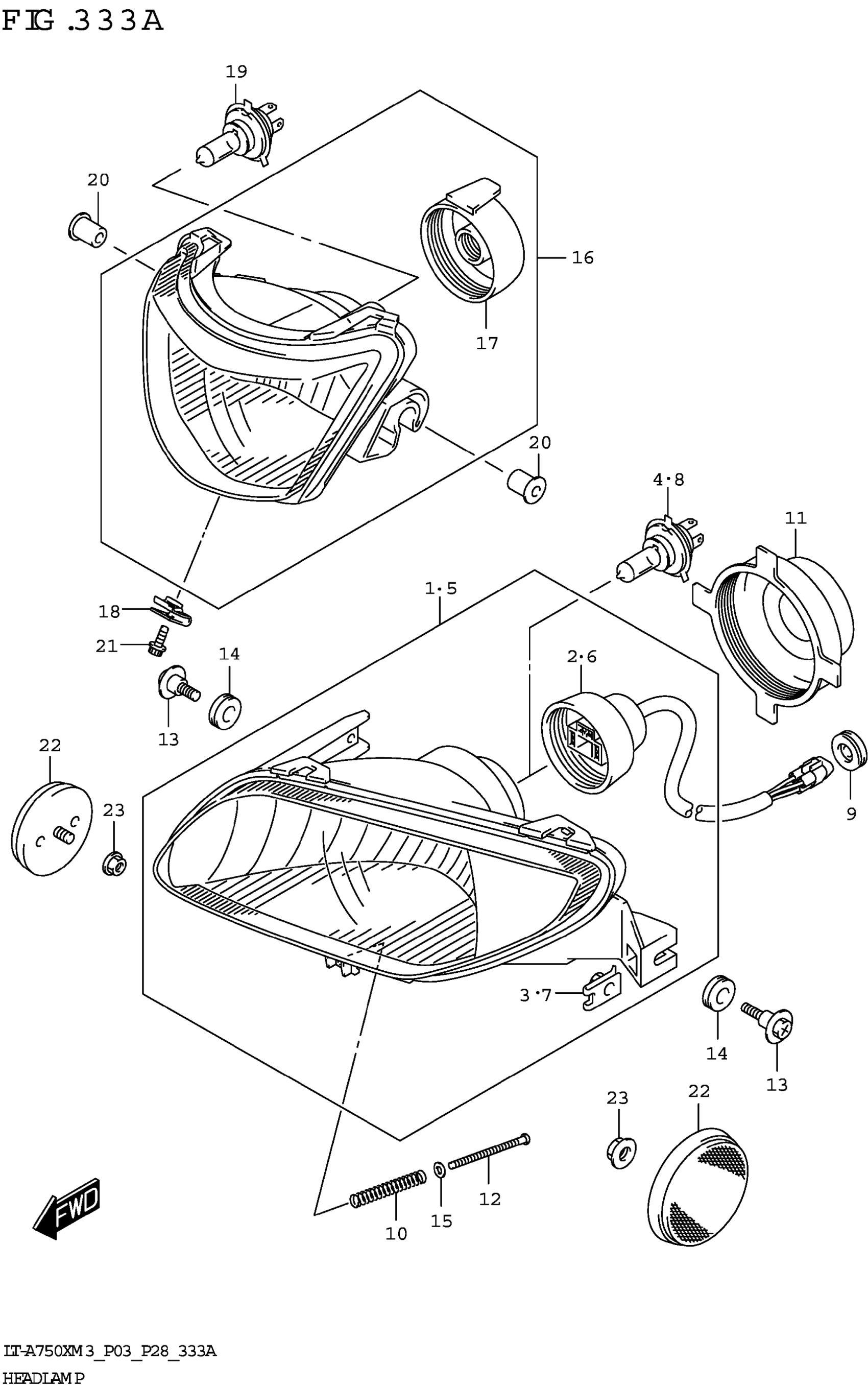

Suzuki LT-A750XM3 (2023) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY RH

35100-31G92-999

$96.37

2

.CORD ASSY RH

35171-31GM1

$33.97

3

.NUT (M6)

35157-31G90

$5.22

4

BULB (12V,35/35W)

09471-12241

Unavailable

5

HEADLAMP ASSY LH

35300-31G92-999

$96.37

6

.CORD ASSY LH

35171-31GH1

$43.43

7

.NUT (M6)

35157-31G90

$5.22

8

BULB (12V,35/35W)

09471-12241

Unavailable

9

GROMMET

09308-07011

$2.74

10

SPRING

35154-31300

$3.64

11

COVER,HEADLAMP HOUSING

35174-31G00

$10.45

12

SCREW (4X50)

09125-04031

$2.38

13

SCREW (6X22.5)

09139-06118

$3.16

14

CUSHION (10X20X10)

09320-10078

$5.32

15

WASHER

08322-0104A

$1.99

16

HEADLAMP ASSY

35100-31GB3-999

$74.37

17

.COVER

35174-31GB0

$13.65

18

NUT (M5)

09148-05052

$3.13

19

BULB (12V35/35W,HS1(01750A))

09471-12101

$62.83

20

CUSHION

09320-07020

$1.24

21

BOLT

07120-0512B

$2.71

22

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$14.56

23

NUT

08316-1005A

$2.25
