Description

Price

1

TANK ASSY, FUEL

44100-31G21

$331.32

2

CAP ASSY, FUEL TANK FILLER

44200-31G00

$52.35

3

VALVE,2 WAY CHECK

85451-75100

$46.78

4

CUSHION, CHECK VALVE

44881-31G01

$4.74

5

HOSE, FUEL TANK BREATHER NO.1

44434-34K00

$31.12

6

CLIP (ID:9.4,H:8)

09401-09403

$2.03

7

CUSHION,REAR

44281-03G01

$5.78

8

SPACER (6.5X10X14)

09180-06293

$2.58

9

BOLT (6X30)

09116-06050

$2.26

10

CUSHION, FUEL TANK SIDE

44541-34K00

$15.53

11

COVER, FUEL TANK LOWER

44390-34K00

Unavailable

12

.CUSHION, FUEL TANK NO.1

44542-10G00

Unavailable

13

.CUSHION, FR FENDER SIDE

53146-05G00

$7.27

14

COVER, FUEL TANK OUTER

44391-34K02

$27.57

15

SCREW

02142-0520B

$1.78

16

WASHER (5.5X20X1.4)

09160-05046

$1.92

17

NUT (M5)

09159-05019

$7.14

18

SCREW (6X16)

09139-06137

$2.61

19

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

20

PACKING, FUEL PUMP

44596-26J00

$33.32

21

RETAINER, FUEL PUMP

44597-26J00

$30.08

22

HOSE,FUEL TANK BREATHER NO.2

44424-18K02

$9.62

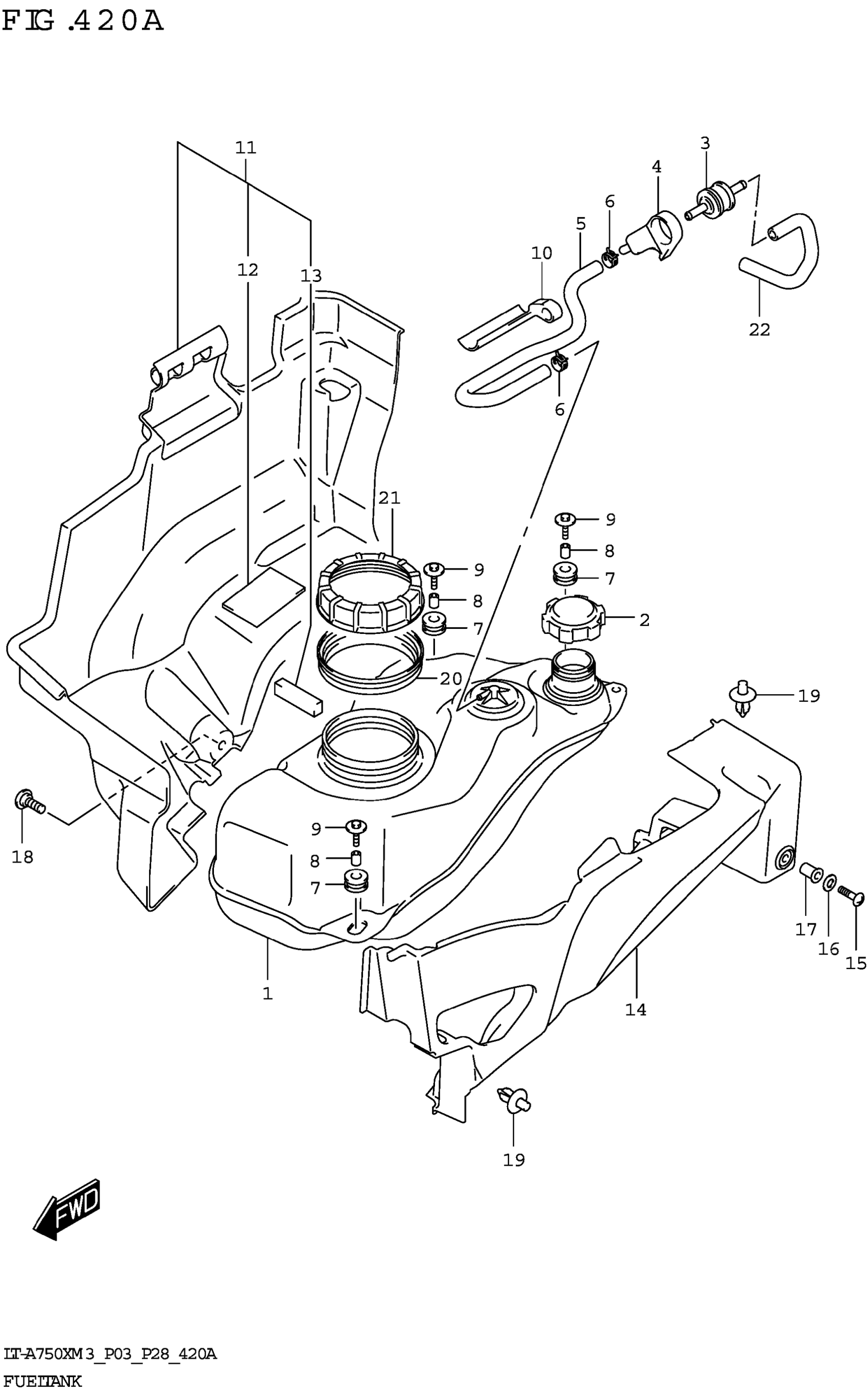

Suzuki LT-A750XM3 (2023) FUEL TANK (P03,P28) Diagram
