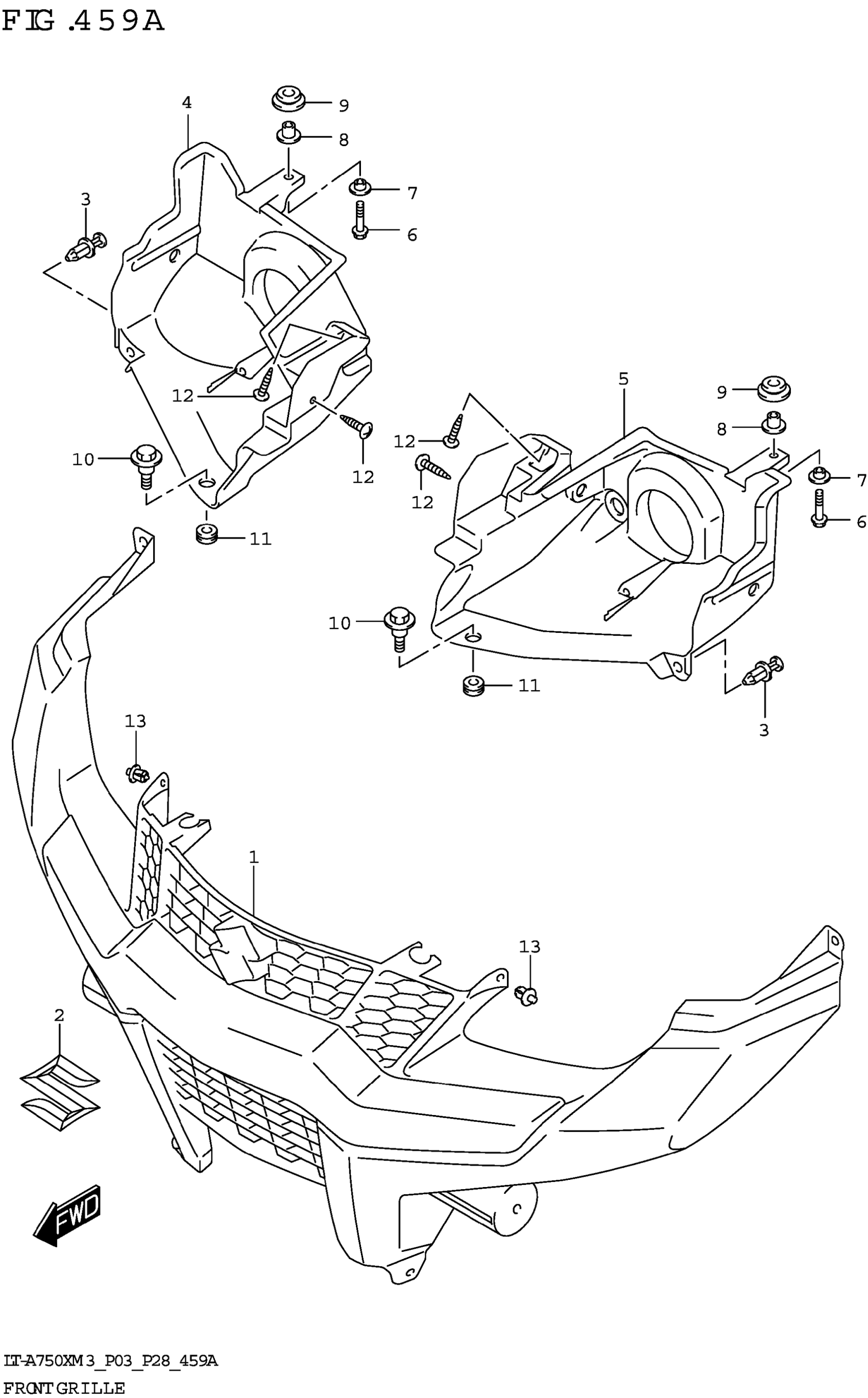

Suzuki LT-A750XM3 (2023) FRONT GRILLE Diagram

#

Description
Price

1

GRILLE, FRONT

53118-34K04

$155.38

2

EMBLEM, MARK S (CHROME)

77811-58J10-0PG

$13.22

3

CLIP

09409-08008

$1.87

4

HOUSING, FRONT LAMP RH

53281-34K03

$12.43

5

HOUSING, FRONT LAMP LH

53282-34K03

Unavailable

6

BOLT (L:30)

01550-0630A

$2.32

7

WASHER (6.1X17.0X4.8)

09169-06073

$3.42

8

WASHER (6.5X24X1.6)

09169-06074

$7.95

9

CUSHION (11.5X32X12.2)

09320-11021

$4.17

10

SCREW (6X22.5)

09139-06118

$3.25

11

CUSHION (10X20X10)

09320-10078

$4.16

12

SCREW

03541-0516A

$1.49

13

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78
