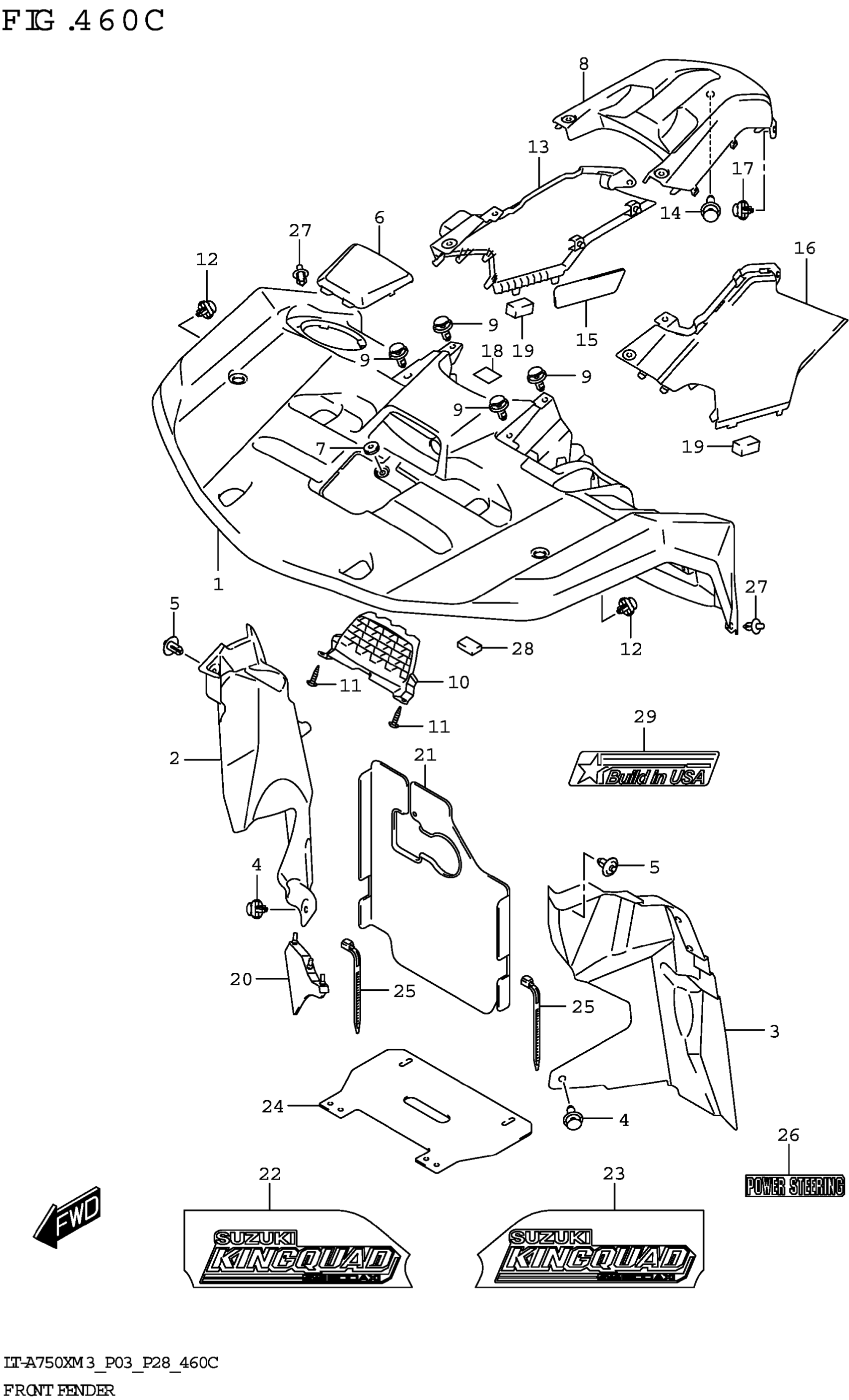

Suzuki LT-A750XM3 (2023) FRONT FENDER ((LT-A750XP,LT-A750XPZ):(P03,P33)) Diagram

#

Description
Price

1-1

FENDER, FRONT (RED) | BODY COLOR:YT9

53111-34K01-YT9

$635.03

1-2

FENDER, FRONT (GREEN) | BODY COLOR:YLG

53111-34K01-YLG

$635.03

1-3

FENDER, FRONT (GRAY) | BODY COLOR:QTF

53111-34K40-QTF

$899.03

1-4

FENDER, FRONT (KANATI) | BODY COLOR:QTM

53111-34K20-QTM

$1,082.07

1-5

FENDER,FRONT (BLUE) | BODY COLOR:YPW

53111-34K01-YPW

$638.15

1-6

FENDER,FRONT | BODY COLOR:QZ8

53111-34K20-QZ8

$1,101.75

2

MUDFLAP, INNER RH

53411-34K01

$20.83

3

MUDFLAP, INNER LH

53421-34K01

$20.72

4

CLIP

09409-08008

$1.87

5

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

6-1

LID, FENDER FRONT (RED) | BODY COLOR:YT9

53341-31G06-YT9

$10.61

6-2

LID, FENDER FRONT (GREEN) | BODY COLOR:YLG

53341-31G06-YLG

$10.28

6-3

LID, FENDER FRONT (GRAY) | BODY COLOR:QTF

53341-31G54-QTF

$44.82

6-4

LID, FENDER FRONT (KANATI) | BODY COLOR:QTM

53341-31GC5-QTM

$64.62

6-5

LID,FENDER FRONT (BLUE) | BODY COLOR:YPW

53341-31G06-YPW

$48.30

6-6

LID,FENDER FRONT | BODY COLOR:QZ8

53341-31GC5-QZ8

$77.18

7

CUSHION (8x26x7)

09320-08018

$3.04

8

FENDER, CENTER

53119-34K04

$120.33

9

CLIP

09409-08008

$1.87

10

COVER, INNER

53212-34K03

$10.77

11

SCREW

03541-0516A

$1.49

12

CLIP

09409-08008

$1.87

13-1

COVER, SIDE RH (RED) | BODY COLOR:YT9

53112-34K03-YT9

$80.48

13-2

COVER, SIDE RH (GREEN) | BODY COLOR:YLG

53112-34K03-YLG

$78.85

13-3

COVER, SIDE RH (GRAY) | BODY COLOR:QTF

53112-34K22-QTF

$177.48

13-4

COVER, SIDE RH (KANATI) | BODY COLOR:QTM

53112-34K12-QTM

$251.57

13-5

COVER,SIDE,R (BLUE) | BODY COLOR:YPW

53112-34K03-YPW

$78.13

13-6

COVER,SIDE,R | BODY COLOR:QZ8

53112-34K12-QZ8

$282.50

14

CLIP

09409-08008

$1.87

15

SHIELD, SIDE COVER NO.2

53113-34K00

$8.72

16-1

COVER, SIDE LH (RED) | BODY COLOR:YT9

53122-34K03-YT9

$106.01

16-2

COVER, SIDE LH (GREEN) | BODY COLOR:YLG

53122-34K03-YLG

$123.17

16-3

COVER, SIDE LH (GRAY) | BODY COLOR:QTF

53122-34K22-QTF

$177.48

16-4

COVER, SIDE LH (KANATI) | BODY COLOR:QTM

53122-34K12-QTM

$251.57

16-5

COVER,SIDE,L (BLUE) | BODY COLOR:YPW

53122-34K03-YPW

$78.13

16-6

COVER,SIDE,L | BODY COLOR:QZ8

53122-34K12-QZ8

$282.50

17

CLIP

09409-08008

$1.87

18

CUSHION | 0X4) This part replaces 47829-10F00.

44612-13600

$4.65

19

CUSHION, COVER SIDE

53114-34K00

$1.70

20

MUDGUARD, SIDE RH

53116-31G01

$15.47

21

COVER, CENTER

53117-31G01

$30.10

22

TAPE,COVER SIDE RH (GRAY,GRAY | BLACK)

68151-34K00-BM6

$19.43

23

TAPE,COVER SIDE LH (GRAY,GRAY | BLACK)

68152-34K00-BM6

$19.43

24

GUARD, RADIATOR

53113-31G10

$19.43

25

CLAMP (L:125)

09407-14403

$2.26

26

EMBLEM, POWER-STEERING (GRAY) | AY)

68151-31GD1-BM7

$10.03

27

CLIP

09409-08008

$1.87

28

CUSHION, REAR FENDER EXT PLAT

63113-48G00

$11.00

29

EMBLEM,FRONT FENDER (GRAY,GRA | )

68151-34KA0-BM7

$18.63
