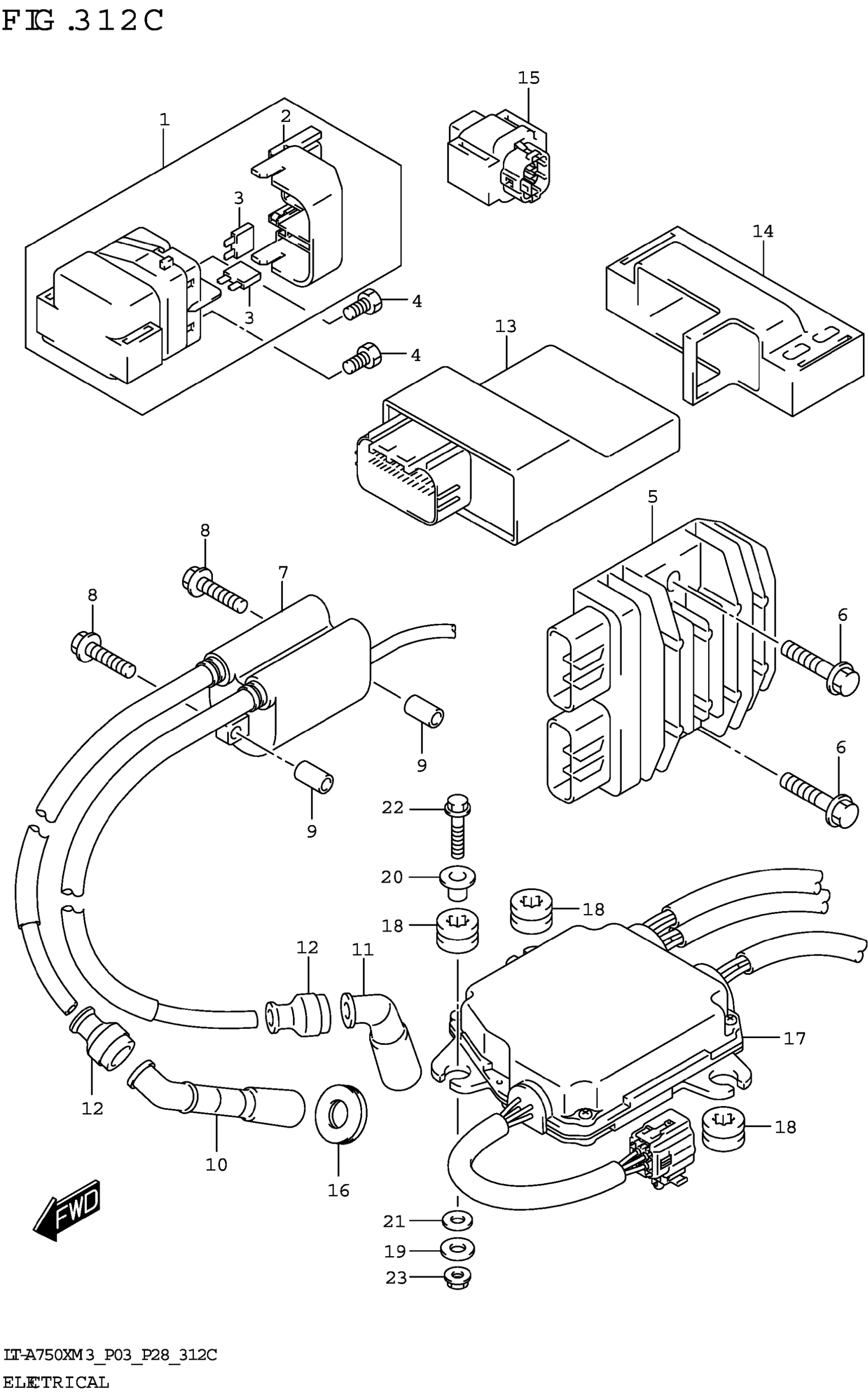

Suzuki LT-A750XM3 (2023) ELECTRICAL ((LT-A750XP,LT-A750XPZ):(P03,P28)) Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$92.59

2

.COVER

31861-38G00

$4.88

3

.FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-26J02

$262.27

6

BOLT (6X25)

01550-0625A

$1.97

7

COIL ASSY, IGNITION

33410-40H01

$106.57

8

BOLT

01547-0640A

$2.32

9

SPACER (6.4X10X18)

09180-06195

$3.68

10

CAP ASSY,SPARK PLUG

33510-31G00

$39.09

11

CAP ASSY,SPARK PLUG

33510-31G10

$32.95

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

CONTROL UNIT,FI

32920-34K01

$625.33

14

HOLDER, FI CONTROL UNIT

32980-31GA0

$42.80

15

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88

16

COVER,SPARK PLUG CAP

33543-33E01

$4.54

17

CONTROL UNIT,EPS

32910-34K00

$882.30

18

CUSHION, EPS

32912-31G00

Unavailable

19

WASHER (6.5X15X1.0)

09160-06094

$1.49

20

WASHER

09169-06075

$3.68

21

WASHER

09169-06076

$3.05

22

BOLT (L:30)

01550-0630A

$2.32

23

NUT (6X12)

08316-1006A

$2.19
