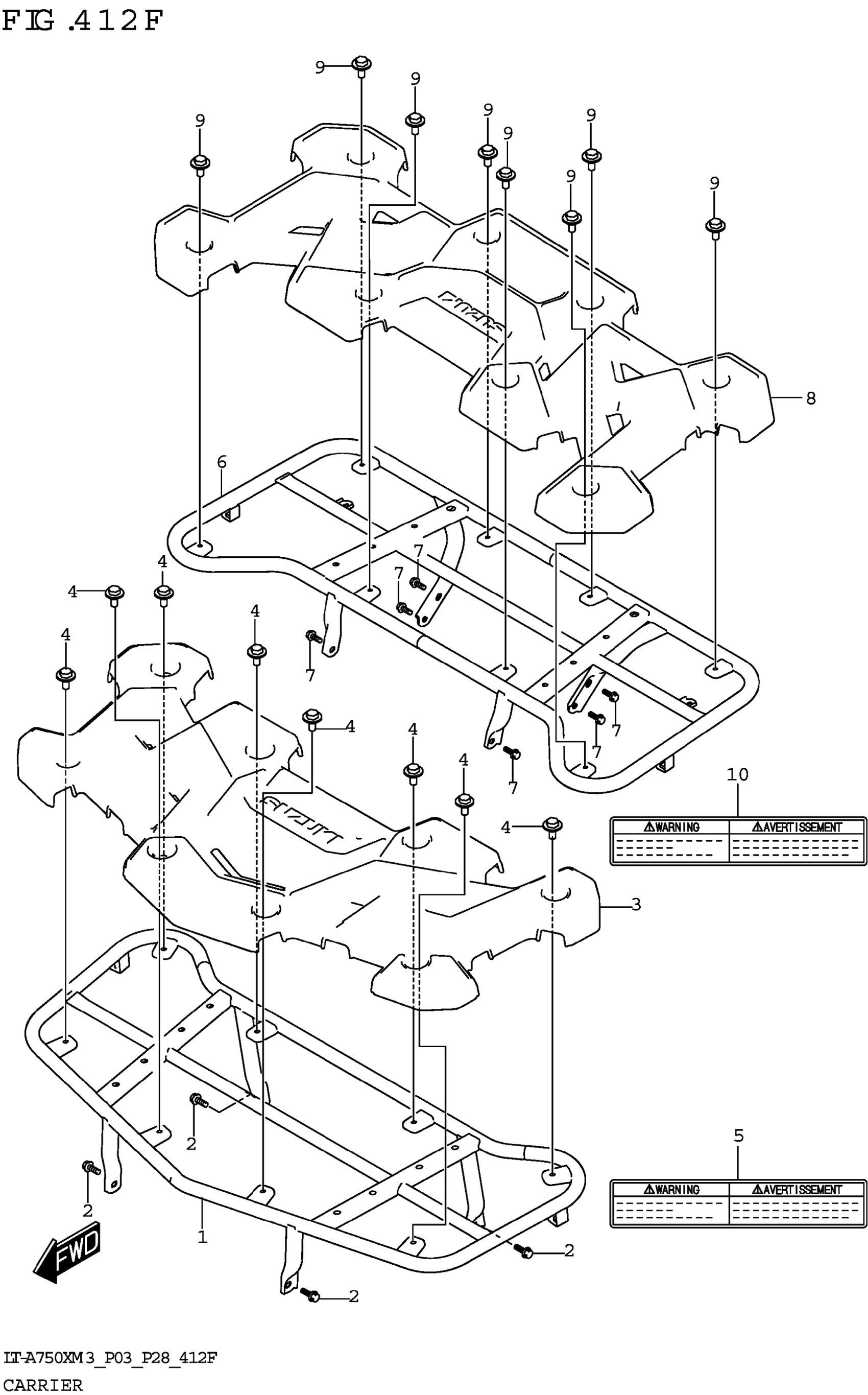

Suzuki LT-A750XM3 (2023) CARRIER ((LT-A750XP,LT-A750XPZ):P28) Diagram

CARRIER,COMP FR This part replaces 46410-34K10.

46410-34K30-YSN

$214.67

BOLT (8X16)

09103-08570

$2.34

COVER, FRONT CARRIER

46485-34K01

$95.70

BOLT, CARRIER COVER

46386-34K00

$4.70

LABEL,FRONT CARRIER

68385-31G01

Unavailable

CARRIER COMP,RE This part replaces 46310-34K20.

46310-34K60-YSN

$205.27

BOLT (8X16)

09103-08570

$2.34

COVER, REAR CARRIER

46385-34K01

$106.71

BOLT, CARRIER COVER

46386-34K00

$4.70

LABEL,REAR CARRIER

68385-31G11

$3.09
