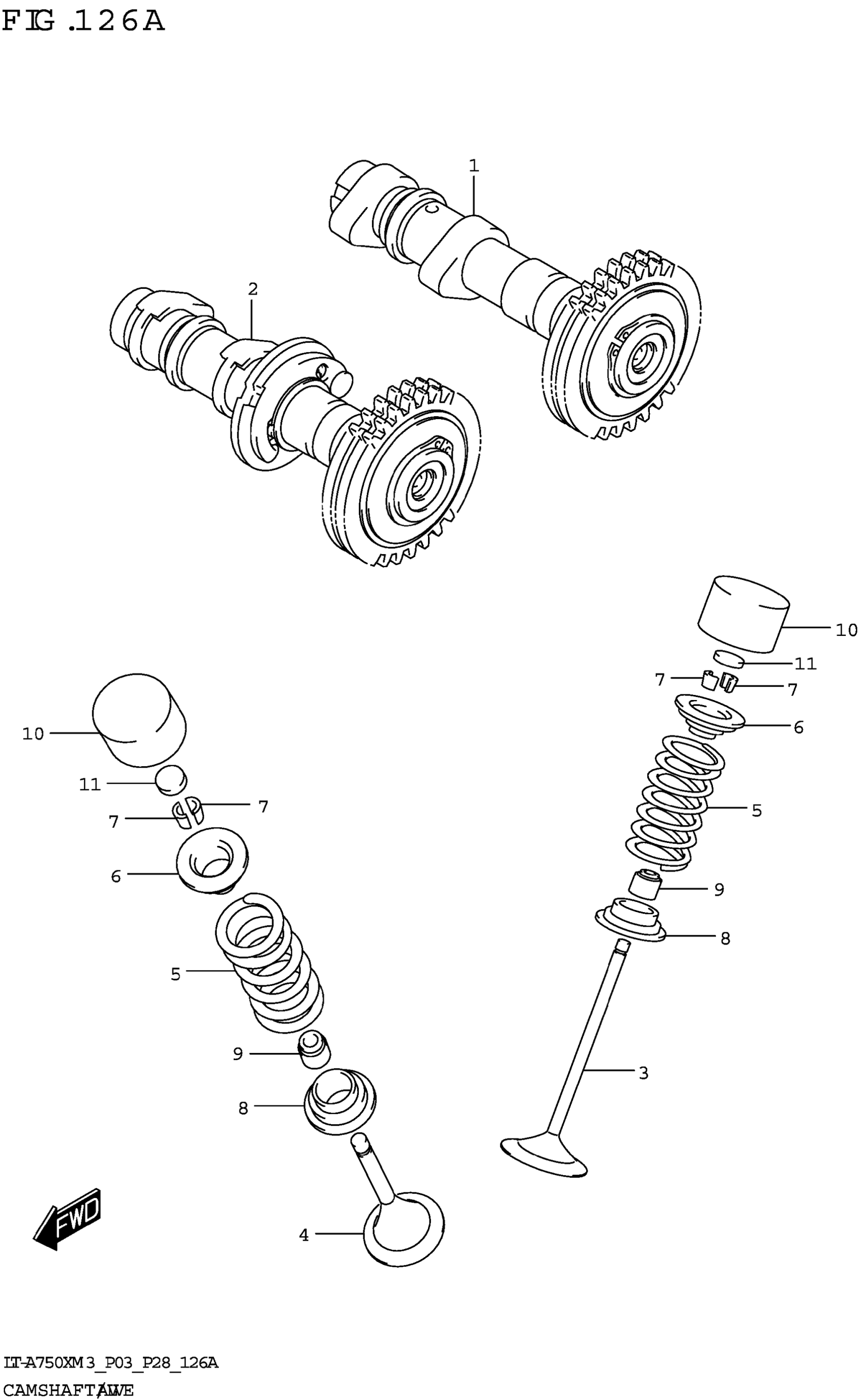

Suzuki LT-A750XM3 (2023) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT,INTAKE (NT:41)

12710-31G10

$399.83

2

CAMSHAFT,EXHAUST (NT:41)

12720-31G10

$520.87

3

VALVE,INTAKE

12911-31G00

$47.57

4

VALVE,EXHAUST

12912-31G00

$74.87

5

SPRING,VALVE

12921-31G00

$15.17

6

RETAINER,VALVE SPRING

12931-02F10

$15.16

7

COTTER, VALVE

12932-24400

$1.94

8

SEAT,VALVE SPRING

12933-38400

$5.44

9

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70

10

TAPPET

12891-02F10

$52.61

11-1

SHIM,TAPPET (T:2.30)

12892-41C00-230

$11.38

11-2

SHIM,TAPPET (T:2.35)

12892-41C00-235

$11.83

11-3

SHIM,TAPPET (T:2.40)

12892-41C00-240

$11.83

11-4

SHIM,TAPPET (T:2.45)

12892-41C00-245

$11.83

11-5

SHIM,TAPPET (T:2.50)

12892-41C00-250

$11.83

11-6

SHIM,TAPPET (T:2.55)

12892-41C00-255

$11.83

11-7

SHIM,TAPPET (T:2.60)

12892-41C00-260

$11.38

11-8

SHIM,TAPPET (T:2.65)

12892-41C00-265

$11.38

11-9

SHIM,TAPPET (T:2.70)

12892-41C00-270

$11.38

11-10

SHIM,TAPPET (T:2.75)

12892-41C00-275

$9.69

11-11

SHIM,TAPPET (T:2.80)

12892-41C00-280

$11.38

11-12

SHIM,TAPPET (T:2.85)

12892-41C00-285

$11.83

11-13

SHIM,TAPPET (T:2.90)

12892-41C00-290

$11.38

11-14

SHIM,TAPPET (T:2.95)

12892-41C00-295

$11.83

11-15

SHIM,TAPPET (T:3.00)

12892-41C00-300

$11.60

11-16

SHIM,TAPPET (T:3.05)

12892-41C00-305

$11.83

11-17

SHIM,TAPPET (T:3.10)

12892-41C00-310

$11.38

11-18

SHIM,TAPPET (T:3.15)

12892-41C00-315

Unavailable

11-19

SHIM,TAPPET (T:3.20)

12892-41C00-320

$11.60

11-20

SHIM,TAPPET (T:3.25)

12892-41C00-325

$11.83

11-21

SHIM,TAPPET (T:3.30)

12892-41C00-330

$11.83

11-22

SHIM,TAPPET (T:3.35)

12892-41C00-335

$11.83

11-23

SHIM,TAPPET (T:3.40)

12892-41C00-340

$11.83

11-24

SHIM,TAPPET (T:3.45)

12892-41C00-345

Unavailable

11-25

SHIM,TAPPET (T:3.50)

12892-41C00-350

$11.83

12

SHIM SET,TAPPET (5PCS.EACH) | OPT,NOT ILLUSTRATED

12800-41810

$1,138.37

13

.CASE,TAPPET SHIM | OPT,NOT ILLUSTRATED

99000-69471

Unavailable
