2022 Suzuki LT-A750XM2 Water Pump Diagram

← All diagrams

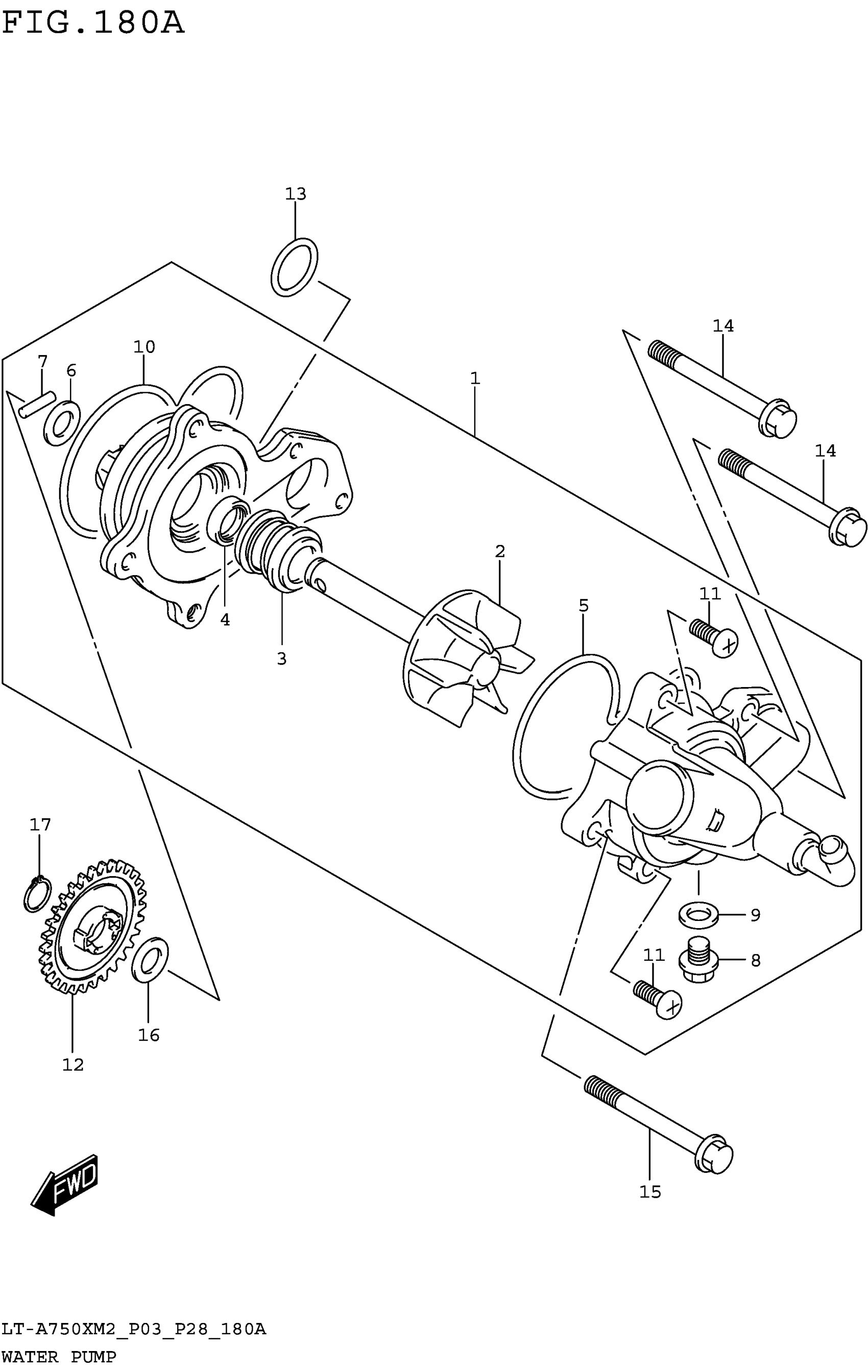

Find the part on the Water Pump diagram for your 2022 Suzuki LT-A750XM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki LT-A750XM2 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,WATER

17400-31G11

1

$149.95

In stock

2

.IMPELLER

17491-31G00

1

$61.37

In stock

3

.SEAL,MECHANICAL

17470-02F11

1
Out of stock

4

.SEAL,OIL (10X21X5)

17461-48G00

1
Out of stock

5

.O RING

17418-31G00

1

$10.20

In stock

6

.WASHER

17432-07G00

1
Out of stock

7

.PIN

17482-03G00

1
Out of stock

8

.BOLT,DRAIN

17415-20920

1
Out of stock

9

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

1
Out of stock

10

.O RING

17435-31G00

1

$20.94

In stock

11

.SCREW

02112-0616B

2

$2.37

In stock

12

1

$32.71

In stock

13

.O-RING (D:2.4,ID:21.8)

09280-22001

1
Out of stock

14

BOLT

01547-0645A

2
Out of stock

15

.BOLT

01547-0655A

1

$2.63

In stock

16

SHIM (10X18X0.5)

09181-10158

1
Out of stock

17

CIRCLIP

08331-31109

1
Out of stock
