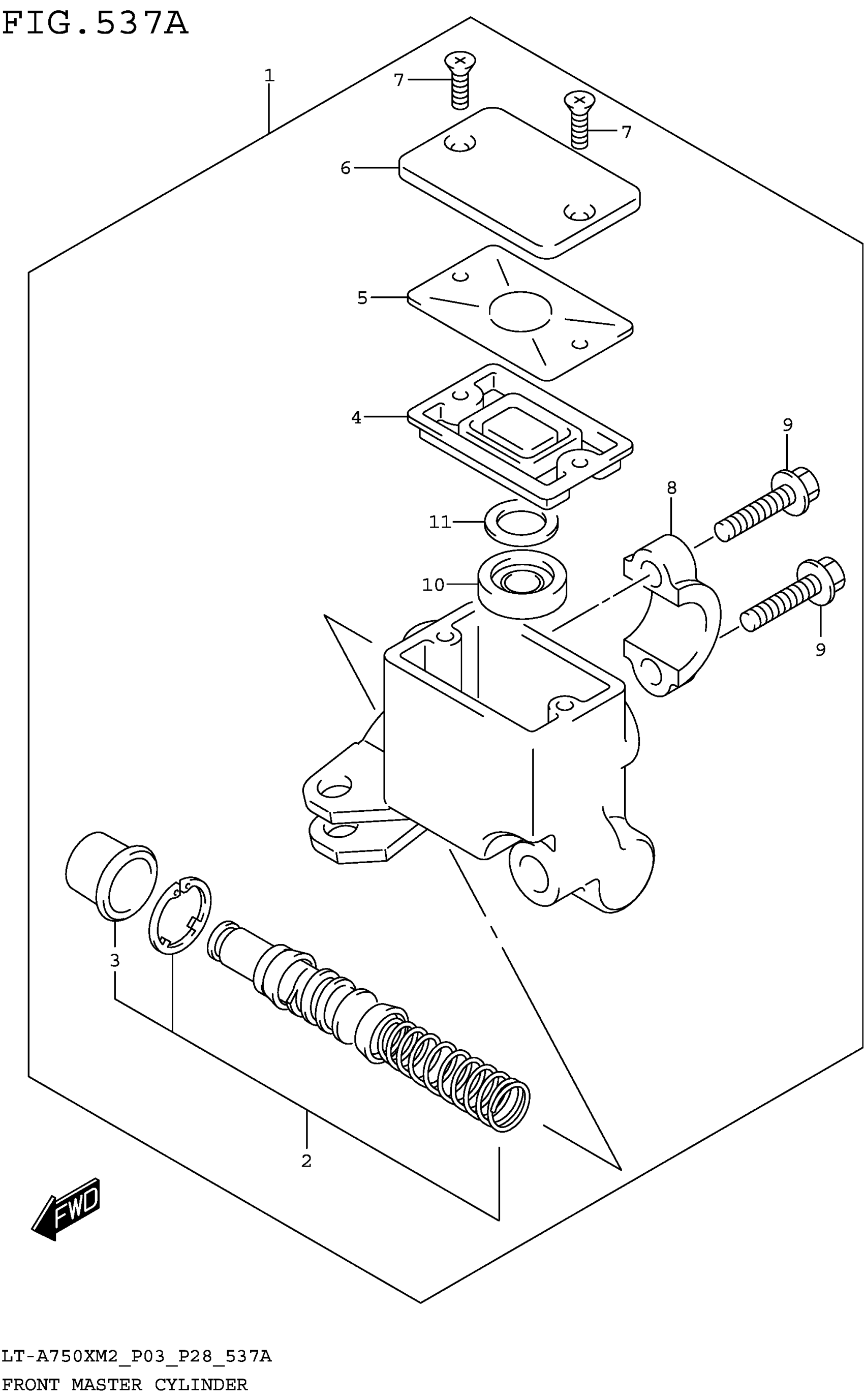

Suzuki LT-A750XM2 (2022) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-31D60

$189.08

2

.PISTON/CUP SET

59600-04810

$45.20

3

..BOOT

59666-44300

$5.80

4

.DIAPHRAGM

59667-04700

$9.78

5

.PLATE,DIAPHRAGM

59668-14F00

$11.60

6

.CAP

59669-20H00

$12.70

7

.SCREW

69689-49300

$1.91

8

.HOLDER

59671-27C00

$17.02

9

.BOLT (6X22)

59675-06F10

$4.65

10

.SEPARATOR

59748-15400

$9.38

11

.PLATE

59749-15400

$2.79
