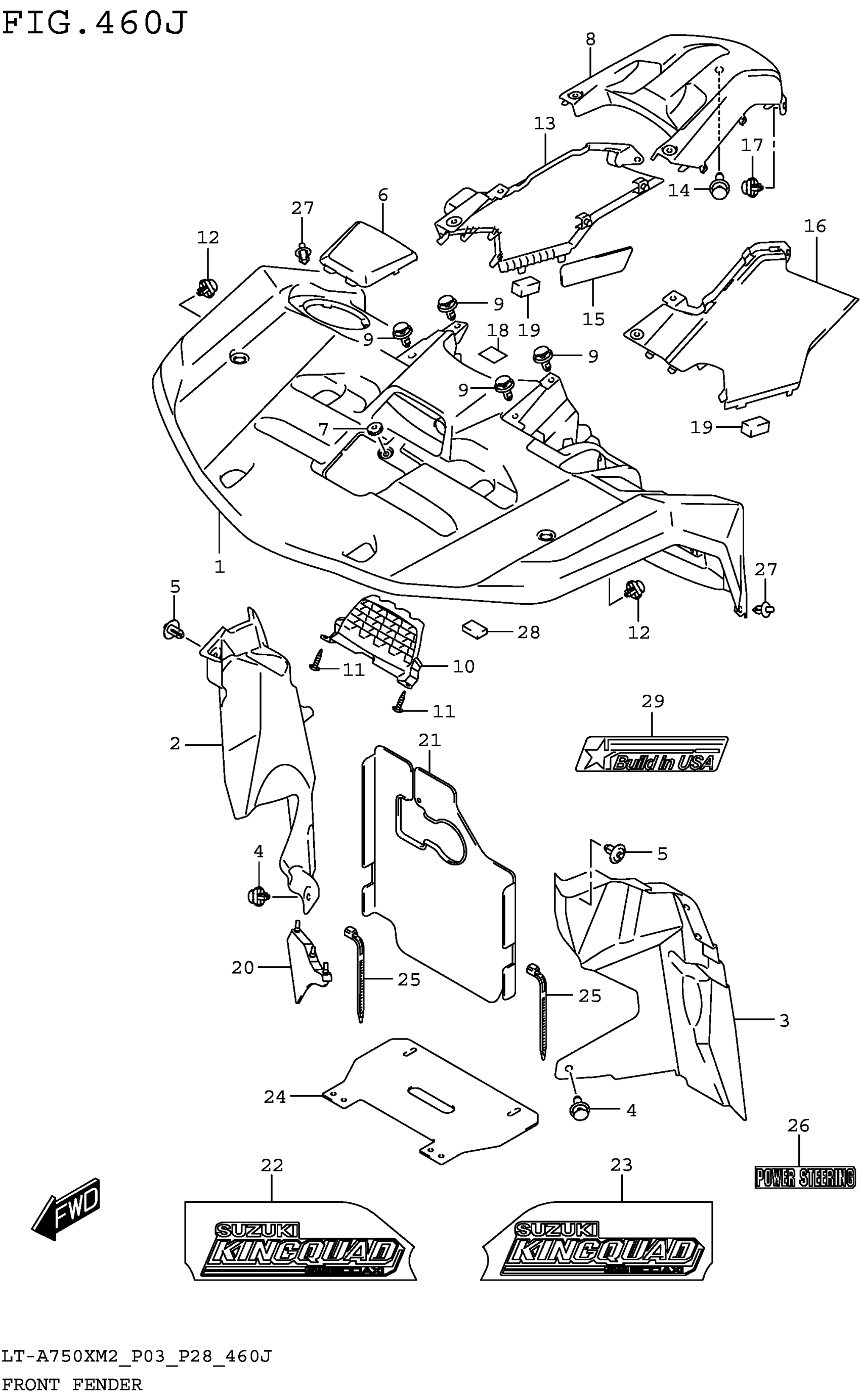

Suzuki LT-A750XM2 (2022) FRONT FENDER (LT-A750XPZM2 P33) Diagram

#

Description
Price

1-1

FENDER, FRONT (RED) This part replaces 53111-34K00-YT9.

53111-34K01-YT9

$686.78

1-2

FENDER, FRONT (GREEN) This part replaces 53111-34K00-YLG.

53111-34K01-YLG

$676.98

1-3

FENDER, FRONT (WHITE)

53111-34K00-30H

$620.73

1-4

FENDER, FRONT (KANATI)

53111-34K20-QTM

$1,170.25

1-5

FENDER, FRONT (BRONZE)

53111-34K40-QMA

$931.10

1-6

FENDER, FRONT (GRAY)

53111-34K40-QTF

$972.32

2

MUDFLAP, INNER RH

53411-34K01

$22.53

3

MUDFLAP, INNER LH

53421-34K01

$22.40

4

CLIP

09409-08008

$1.74

5

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

6-1

LID, FENDER FRONT (RED) This part replaces 53341-31G05-YT9.

53341-31G06-YT9

$9.57

6-2

LID, FENDER FRONT (GREEN) This part replaces 53341-31G05-YLG.

53341-31G06-YLG

$9.28

6-3

LID,FRONT FENDE This part replaces 53341-31G05-30H.

53341-31G06-30H

$14.15

6-4

LID, FENDER FRONT (KANATI)

53341-31GC5-QTM

$72.92

6-5

LID, FENDER FRONT (BRONZE)

53341-31G54-QMA

Unavailable

6-6

LID, FENDER FRONT (GRAY)

53341-31G54-QTF

$50.58

7

CUSHION (8x26x7)

09320-08018

$2.80

8

FENDER, CENTER This part replaces 53119-34K03.

53119-34K04

$135.17

9

CLIP

09409-08008

$1.74

10

COVER, INNER This part replaces 53212-34K02.

53212-34K03

$12.15

11

SCREW

03541-0516A

$1.37

12

CLIP

09409-08008

$1.74

13-1

COVER, SIDE RH (RED) This part replaces 53112-34K02-YT9.

53112-34K03-YT9

$90.85

13-2

COVER, SIDE RH (GREEN)

53112-34K02-YLG

$27.27

13-3

COVER,SIDE R This part replaces 53112-34K02-30H.

53112-34K03-30H

$27.40

13-4

COVER, SIDE RH (KANATI)

53112-34K12-QTM

$271.68

13-5

COVER, SIDE RH (BRONZE)

53112-34K22-QMA

Unavailable

13-6

COVER, SIDE RH (GRAY)

53112-34K22-QTF

$199.37

14

CLIP

09409-08008

$1.74

15

SHIELD, SIDE COVER NO.2

53113-34K00

$9.85

16-1

COVER, SIDE LH (RED) This part replaces 53122-34K02-YT9.

53122-34K03-YT9

$140.08

16-2

COVER, SIDE LH (GREEN) This part replaces 53122-34K02-YLG.

53122-34K03-YLG

$138.35

16-3

COVERM,SIDE L This part replaces 53122-34K02-30H.

53122-34K03-30H

$27.27

16-4

COVER, SIDE LH (KANATI)

53122-34K12-QTM

$271.68

16-5

COVER, SIDE LH (BRONZE)

53122-34K22-QMA

Unavailable

16-6

COVER, SIDE LH (GRAY)

53122-34K22-QTF

$199.37

17

CLIP

09409-08008

$1.74

18

CUSHION This part replaces 47829-10F00.

44612-13600

$5.27

19

CUSHION, COVER SIDE

53114-34K00

$1.66

20

MUDGUARD, SIDE RH

53116-31G01

$17.47

21

COVER, CENTER

53117-31G01

$33.97

22

TAPE,COVER SIDE RH (GRAY,GRAY | (GRAY/GRAY/BLACK)

68151-34K00-BM6

$22.02

23

TAPE,COVER SIDE LH (GRAY,GRAY | (GRAY/GRAY/BLACK)

68152-34K00-BM6

$22.02

24

GUARD, RADIATOR

53113-31G10

$21.93

25

CLAMP (L:125)

09407-14403

$2.24

26

EMBLEM, POWER-STEERING (GRAY) | (GRAY/GRAY)

68151-31GD1-BM7

$11.32

27

CLIP

09409-08008

$1.74

28

CUSHION, REAR FENDER EXT PLAT

63113-48G00

$12.42

29

EMBLEM,FRONT FENDER (GRAY,GRA | (GRAY/GRAY)

68151-34KA0-BM7

$20.45
