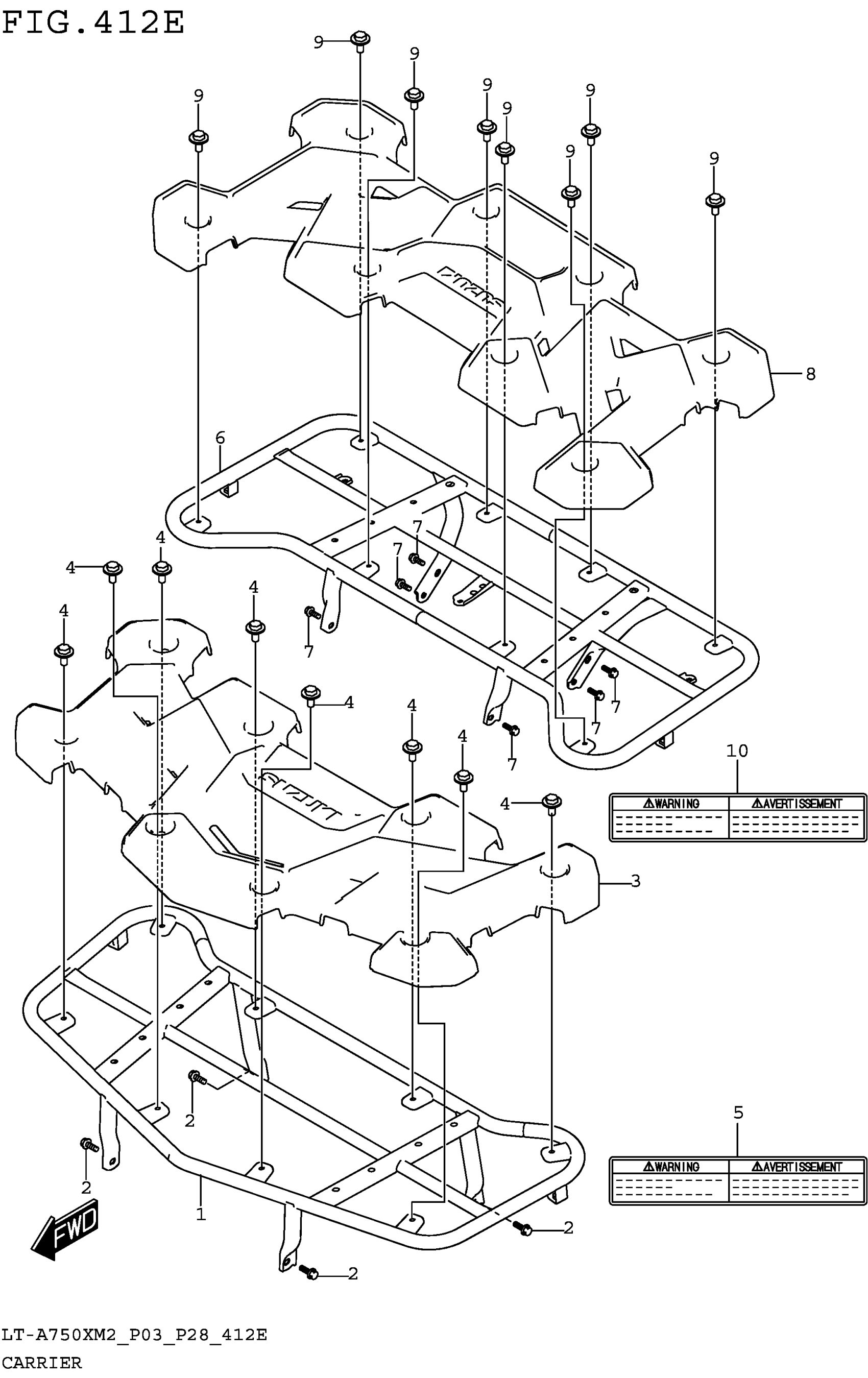

Suzuki LT-A750XM2 (2022) CARRIER (LT-A750XPM2 P28) Diagram

CARRIER,COMP FR This part replaces 46410-34K10.

46410-34K30-YSN

$196.49

BOLT (8X16)

09103-08570

$2.32

COVER, FRONT CARRIER

46485-34K01

$87.60

BOLT, CARRIER COVER

46386-34K00

$6.07

LABEL,FRONT CARRIER

68385-31G01

Unavailable

CARRIER COMP,RE This part replaces 46310-34K20.

46310-34K60-YSN

$187.89

BOLT (8X16)

09103-08570

$2.32

COVER, REAR CARRIER

46385-34K01

$97.68

BOLT, CARRIER COVER

46386-34K00

$6.07

LABEL,REAR CARRIER

68385-31G11

$2.26
