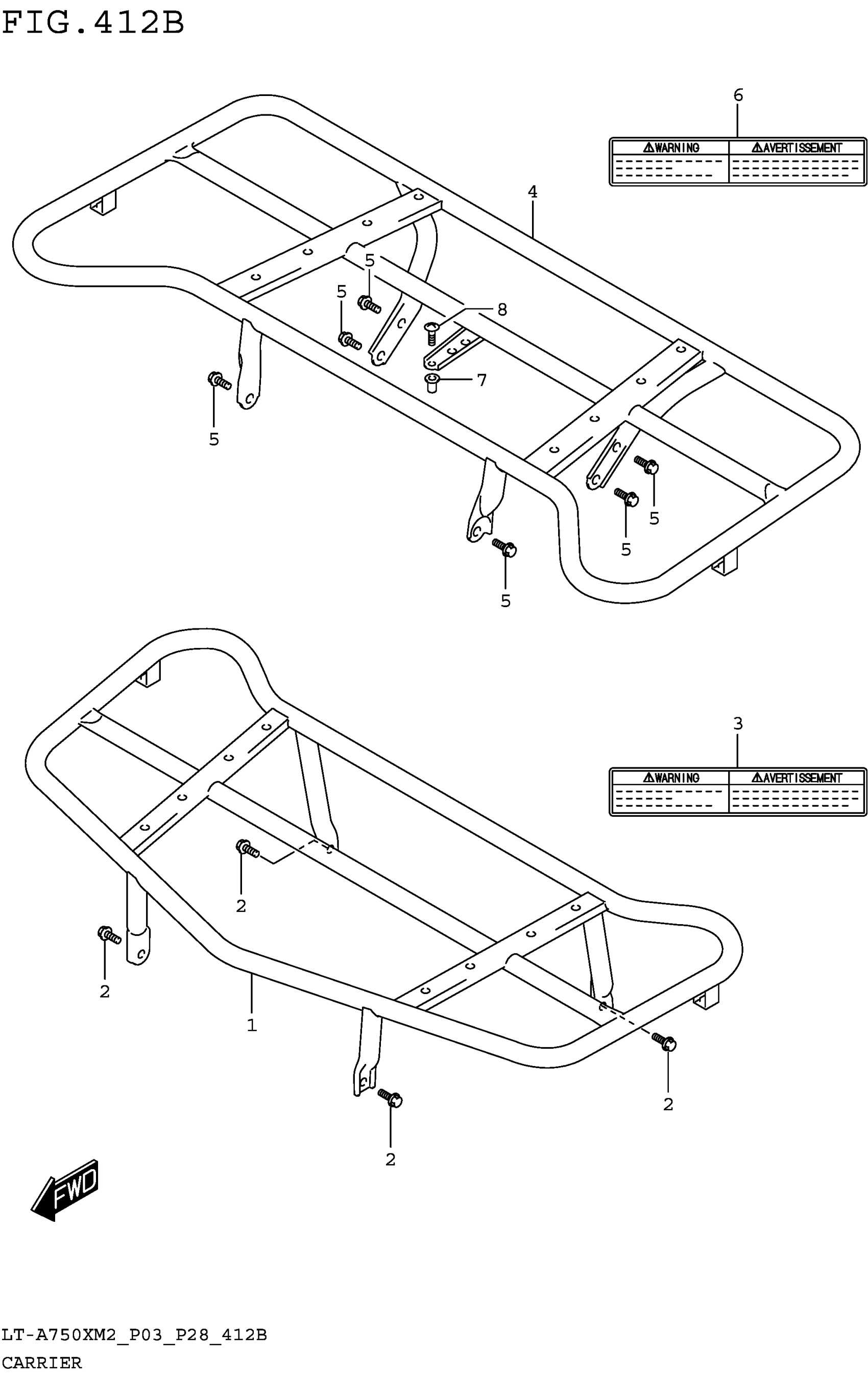

Suzuki LT-A750XM2 (2022) CARRIER (LT-A750XM2 P28) Diagram

#

Description

Price

1

CARRIER,COMP FR This part replaces 46410-34K10.

46410-34K30-YSN

$196.49

2

BOLT (8X16)

09103-08570

$2.32

3

LABEL,FRONT CARRIER

68385-31G01

Unavailable

4

CARRIER COMP,RE This part replaces 46310-34K20.

46310-34K60-YSN

$187.89

5

BOLT (8X16)

09103-08570

$2.32

6

LABEL,REAR CARRIER

68385-31G11

$2.26

7

NUT (M5)

09159-05019

$6.44

8

SCREW

02142-0520B

$1.77
