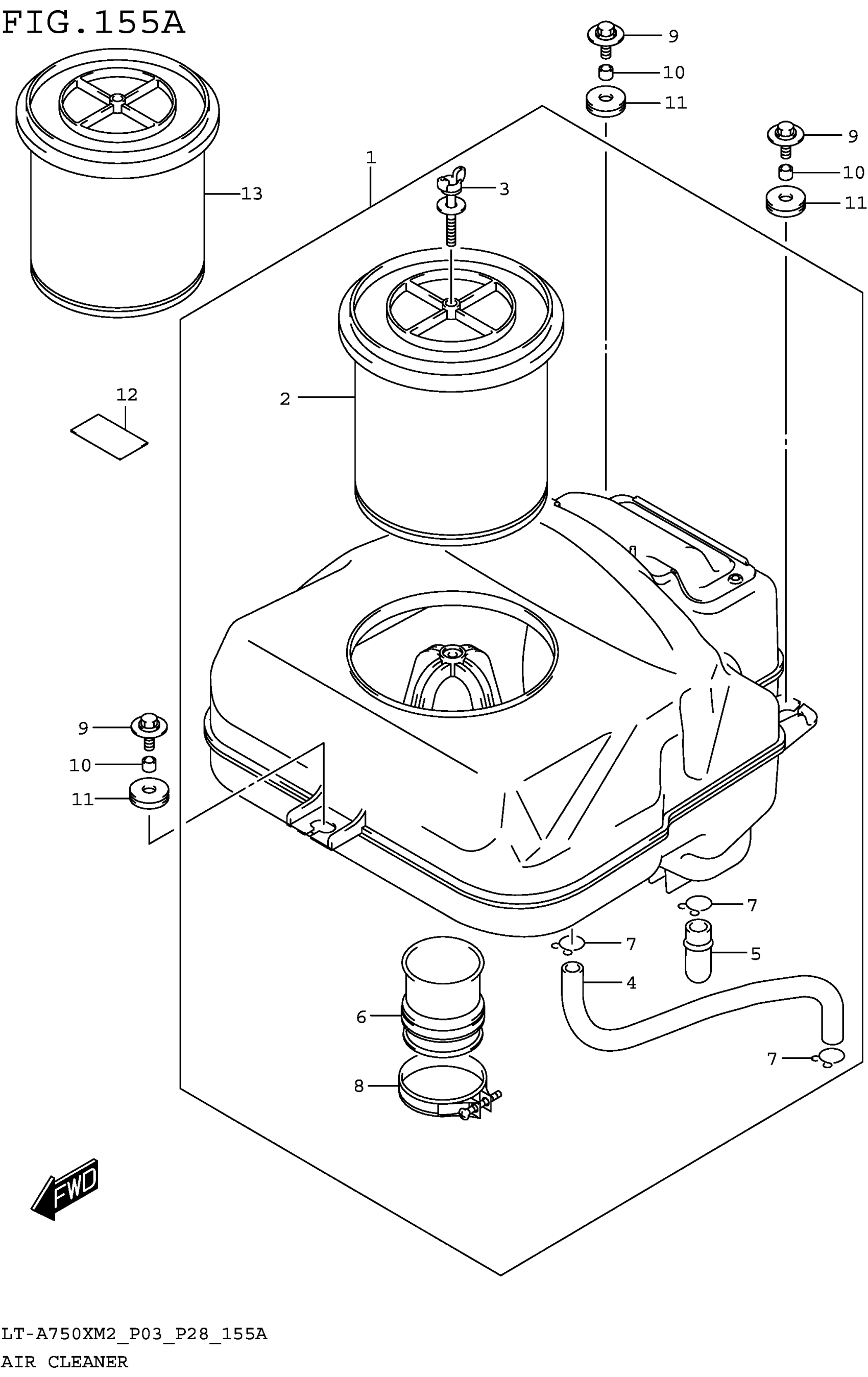

Suzuki LT-A750XM2 (2022) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-34K01

$242.80

2

.FILTER ASSY

13780-31G30

$75.96

3

.BOLT, WING

13831-31G00

$8.07

4

.TUBE, BREATHER

13853-31G01

$20.78

5

.PLUG,DRAIN

13878-09F01

$5.48

6

.TUBE,OUTLET

13881-31G02

$8.97

7

.CLIP (ID:14.5)

09401-14101

$2.34

8

.CLAMP

09402-58208

$5.36

9

BOLT (6X20)

09116-06149

$3.78

10

SPACER (6.1X8X9.5)

09180-06248

$2.12

11

CUSHION (8X26X7)

09320-08028

$3.04

12

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

13

FILTER ASSY,AIR CLEANER | OPT

13780-31GA0

$55.45
