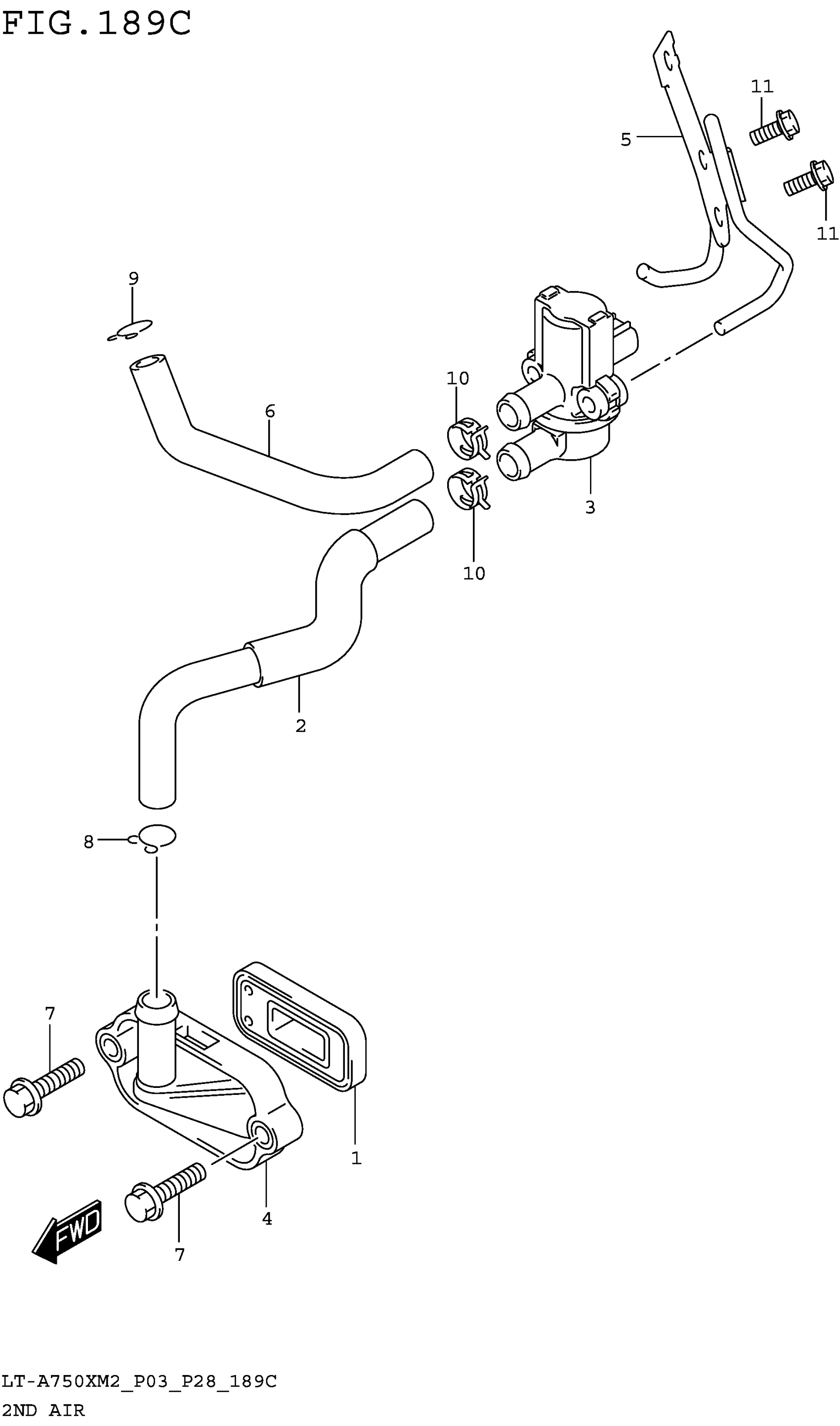

Suzuki LT-A750XM2 (2022) 2ND AIR (LT-A750XM2 P33) Diagram

#

Description
Price

1

.VALVE ASSY,2ND AIR REED

18450-06G00

$36.82

2

HOSE,2ND AIR VALVE

18461-31G00

$14.25

3

VALVE ASSY,AIR CUT

18510-29G50

$101.05

4

COVER,2ND AIR

18531-06G01

$13.41

5

BRACKET, 2ND AIR VALVE

18610-34K00

$55.53

6

HOSE, 2ND AIR CLNR

18710-31G20

Unavailable

7

BOLT (6X20)

09103-06201

$2.64

8

CLIP (ID:15.5)

09401-15101

$2.26

9

CLIP

09401-17201

$3.15

10

CLIP

09401-17401

$3.08

11

BOLT

01550-0610A

$1.97
